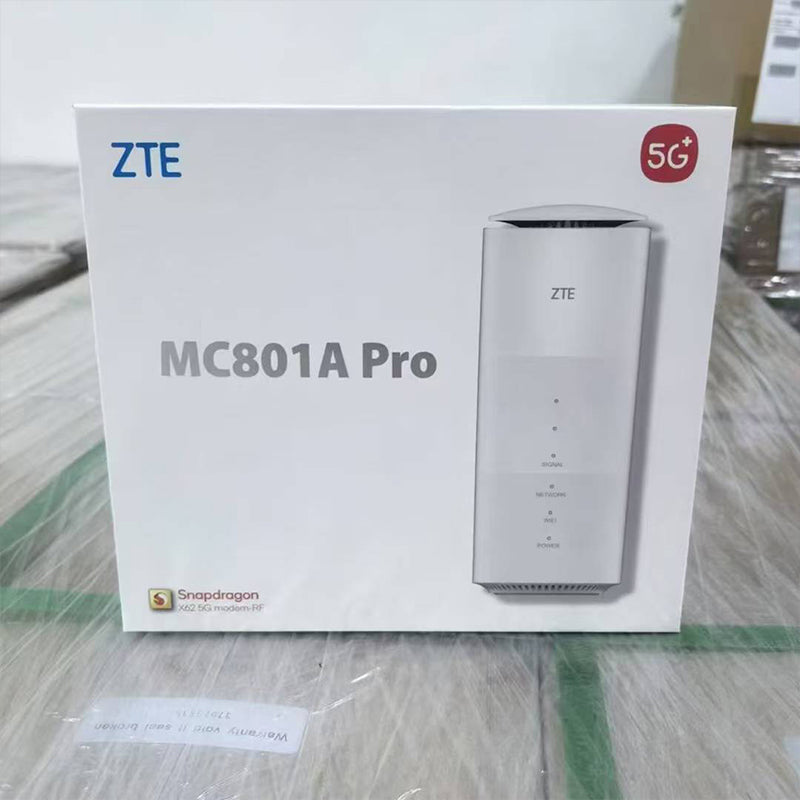

ZTE MC801A Pro SDX62 AX3600 WiFi 6 Indoor 5G CPE Router

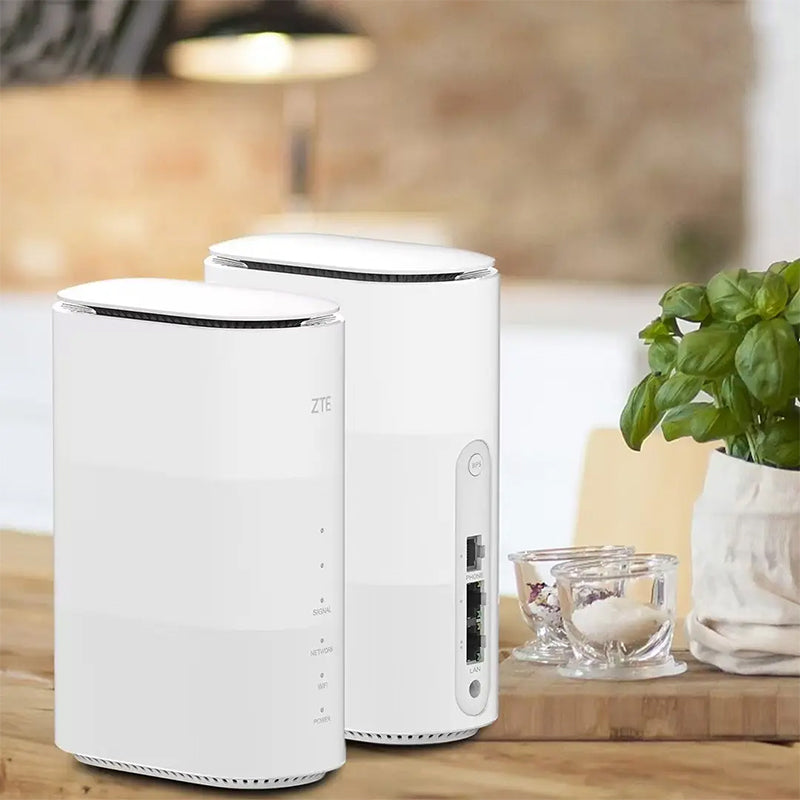

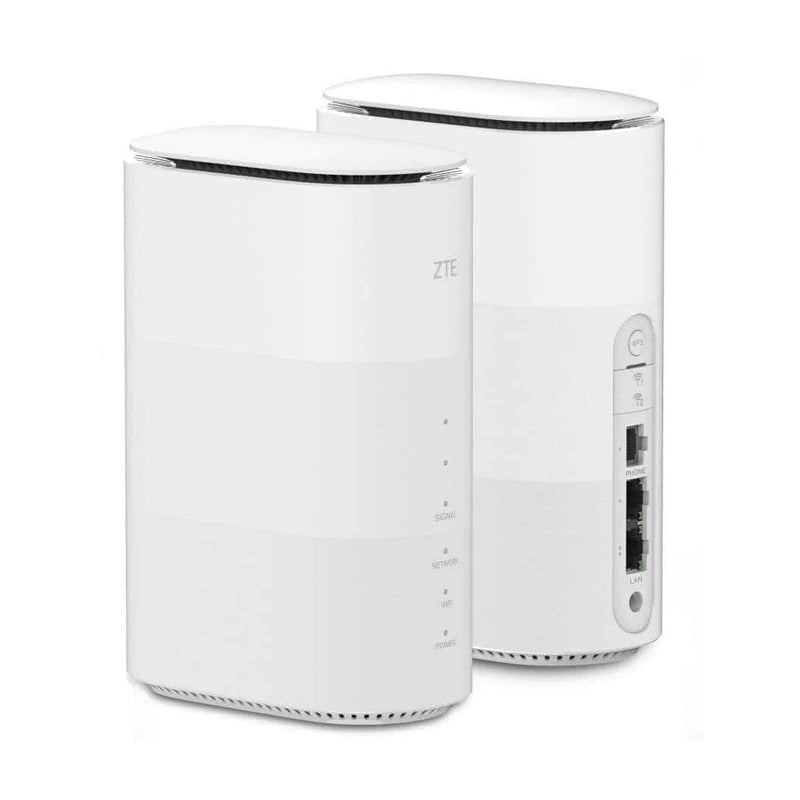

ZTE New Generation 5G Indoor CPE MC801A Pro

• High performance 5G router based on new generation Qualcomm X62
• High speed Wi-Fi6, peak rate 3600Mbps
• High gain antenna up to 12dBi to ensure good coverage indoor

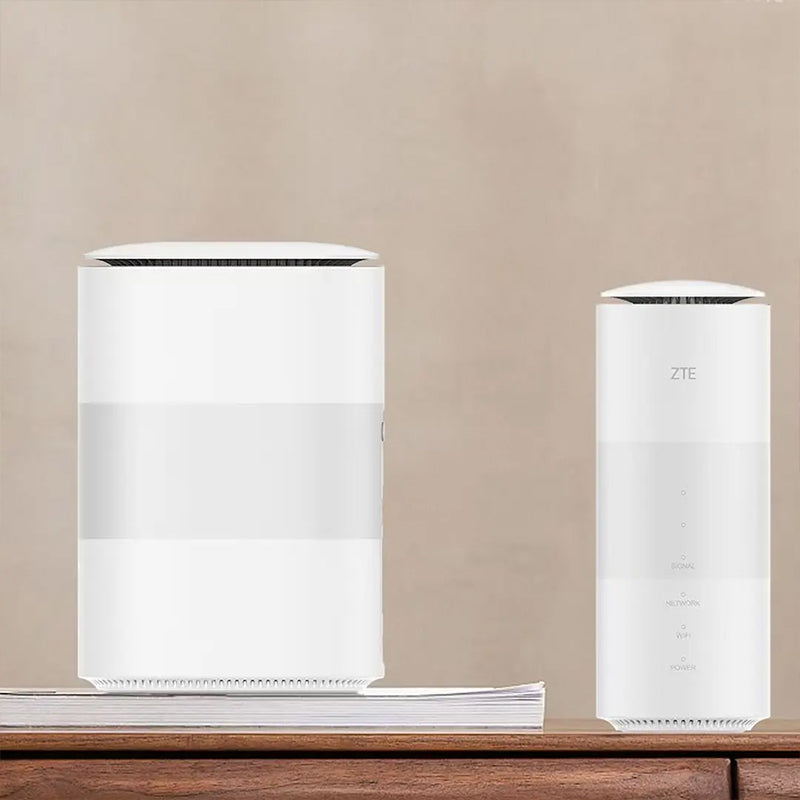

• Awarded and successful design and size continued

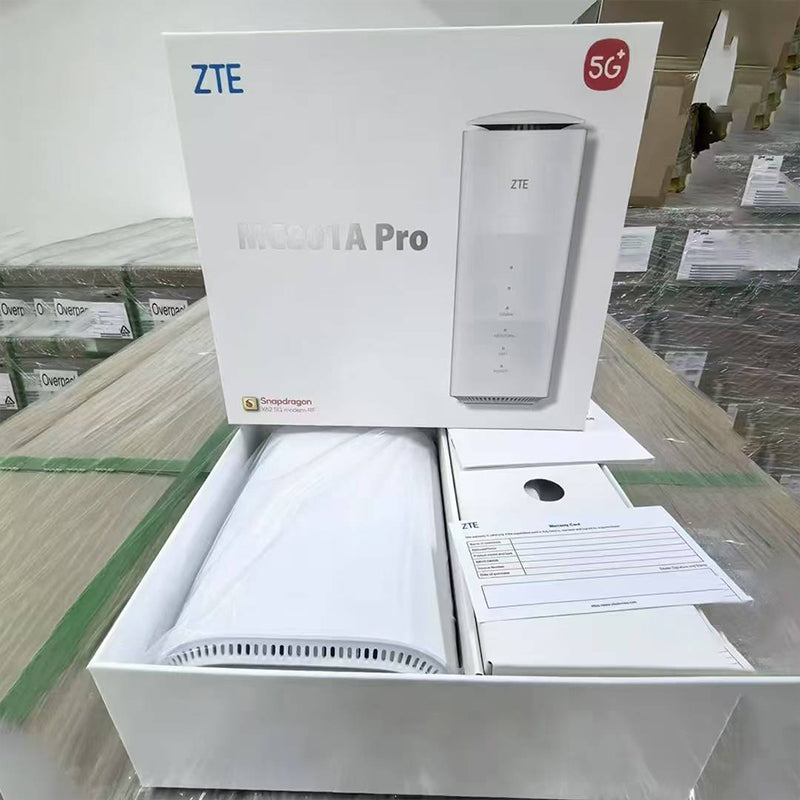

Device Status

• Global Version
• New and Full Tested
• Support English, Arabic, Spanish, Italian, French, etc.

The New Generation of Snapdragon X62 Platform with Superior Performance

The new generation of Snapdragon X62 platform with advanced 4nm technology supports the 3GPP Release 16 standard, The processor's computing power is upgraded, and the speed is comprehensively improved, opening a new 5G era.

5G NSA+SA Dual Mode

Supports both NSA and SA dual-mode 5G networks with fast speed, wide coverage and main global frequency bands.

Carrier Aggregation and ENDC Technology, High Speed and Wide Coverage

It supports advanced 5G NR network carrier aggregation (CA) technology, greatly improves spectrum utilization, bringshigher user data rate, lower delay, higher capacity, more reliable network service and better performance. At the sametime, low frequency ENDC technology is supported to improve the coverage and the signals in suburban, rural andremote areas are wider and farther. MC801A Pro truly realizesthe advantages of wide coverage and fast speed of 5G signals and the users can enjoy a fast internet experience anytime and anywhere. At the same time, it supports 4G Cat16 1.0 Gbps LTE rate, which is also very fast.

High Speed Wi-Fi6, Peak Rate 3600Mbps

MC801A Pro adopts the Wi-Fi 6 standard, and the peak rate of Wi-Fi has reached 3600Mbps, With the unique 4K QAM modu-lation technology and using the latest compatible mobile phone, the Wi-Fi forwarding rate can be greatly improved.

5G Network Shared by Multiple People

With one MC801A Pro, more than the whole family can enjoy 5G network as it supports up to 64 Wi-Fi users access simultaneously. And also the needs of enterprises are met by this feature.

Two Gigabit Network Ports, Fast Internet Experience

The MC801A Pro is equipped with two gigabit network ports.You have no longer to worry about the slow and congested network and can enjoy a very fast Internet experience

High Gain Antenna up to 12dBi

By a unique antenna design, the antenna gain is up to 12dBi which enhances the ability to penetrate walls and windows yielding stronger signal and wider coverage. Compared with ordinary products, the speed is increased by 15%, and 5G signals can be well received when placed at anywhere.

5G and Wired Broadband Dual Network

It supports both wireless and wired broadband Internet access, which can be freely selected. When one mode fails, it can be seamlessly switched to the other to ensure the stability of the network.

ZTE 5G CPE MC801A Pro Specifications

Based Information

● Communication Standard: 3GPP Release 16

● Chipset: Qualcomm SDX62 + WCN6856

● Size: 182 x 124 x 70mm

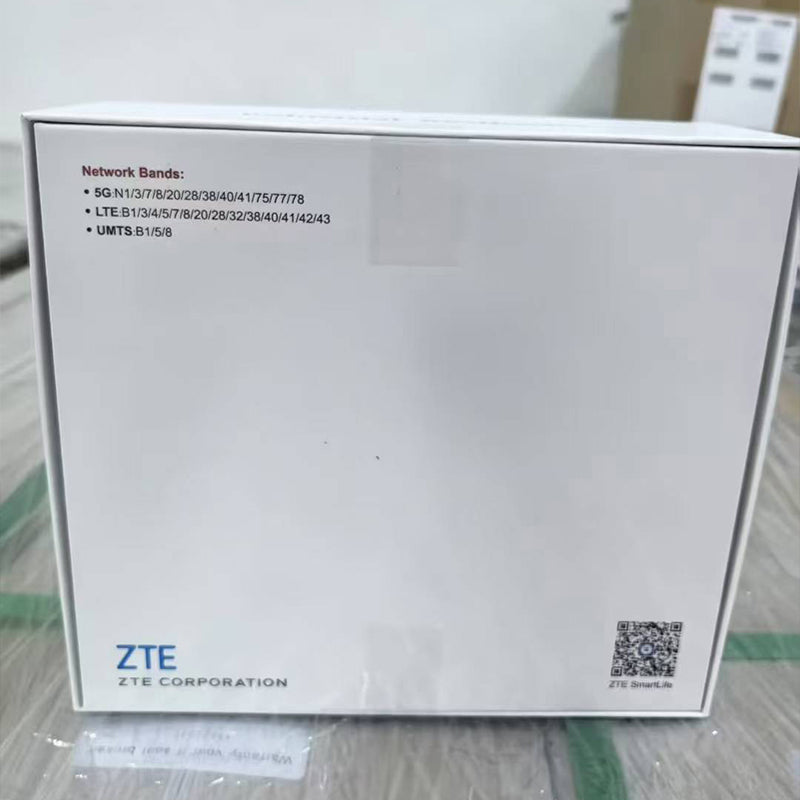

Working band

● 5G NSA/SA: n1/3/7/8/20/28/38/40/41/75/77/78

● 4G LTE: B1/3/4/5/7/8/20/28/32/38/40/41/42/43

● UMTS: B1/5/8

● WiFi:

• Wi-Fi 6, 3.6Gbps
• 2.4GHz & 5GHz Dual Bands
• 802.11 a/b/g/n/ac/ax
• 64 WiFi users
• 2*2 MIMO, 4K QAM, 160MHz

Speed

● 5G NSA/SA(DL/UL) 3.8Gbps/900Mbps

● 4G LTE Cat16(DL/UL) 1.0Gbps/200Mbps

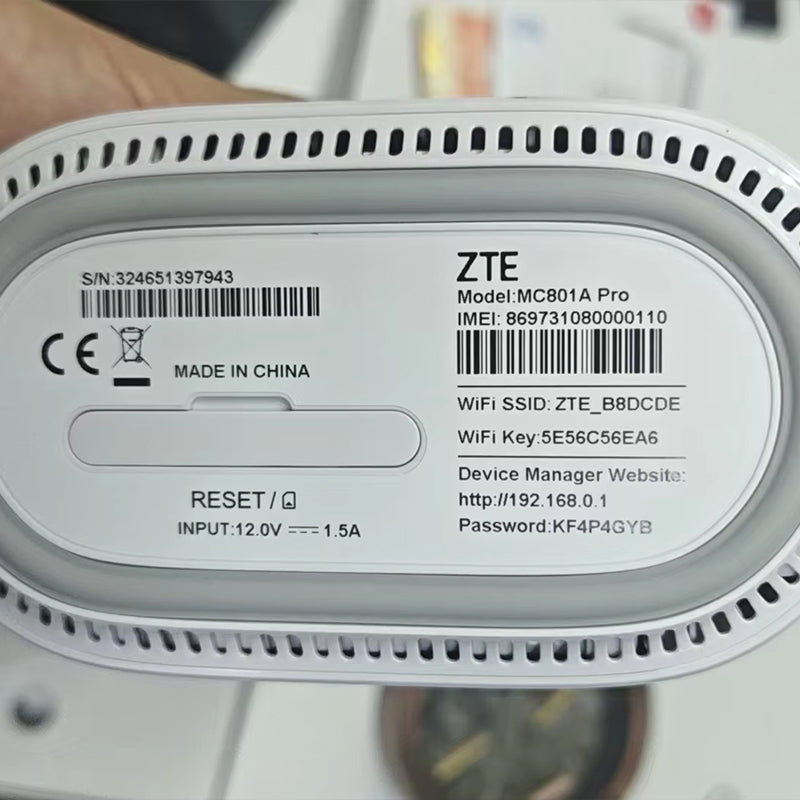

Hardware

● LED indicator: Power, WIFI, Network, Signal

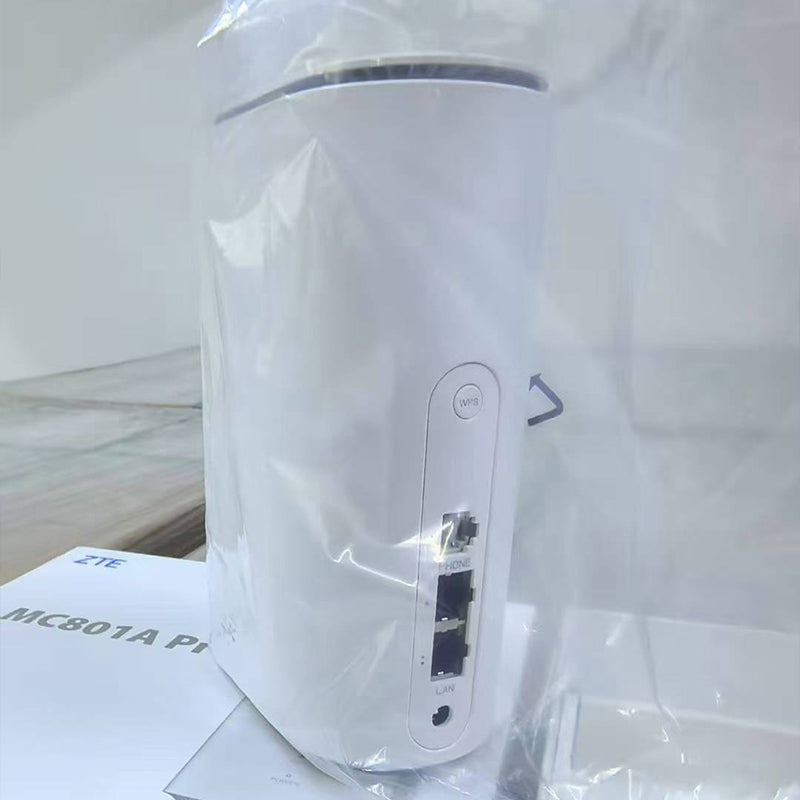

● Interfaces

• 1x4FF SIM slot
• 1x1Gbps WAN/LAN port & 1x1Gbps LAN port
• 1xRJ11 telephone port (VoLTE&CSFB)
• 1xPower Adapter Port

● Buttons: Reset, WPS, Power

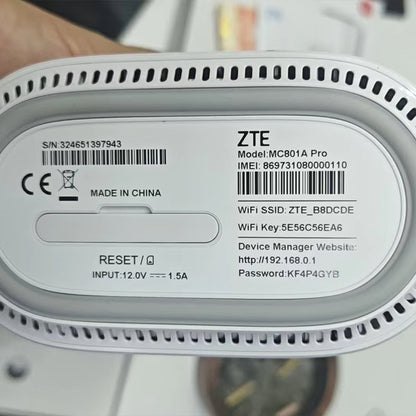

● Power supply: AC (input): 100V-240V 50Hz/60Hz, DC (output): 12V/1.5A

Software

● Management: via Web UI 192.168.0.1

● Language: English, Arabic, Spanish, Italian, French, etc.

● WIFI Mode: AP/STATION mode

● WIFI Security: OPEN,WPA-PSK, WPA2-PSK, WPA-PSK, WPA2-PSK

● Band selection: Support

● VPN: PP2P/L2TP

● IPv4,IPv6: Support

● Firewall: Mac/IP address filter, Port forwarding, WiFi Black/Whilte list

● Other feature: SMS,Phone Book, Data Statistics,USSD,DHCP,DNS,DMZ
