Unlocked 5G 4G LTE WiFi 6 AX3000 Wireless Broadband CPE Router

R4A-77 5G CPE

MT6877 | High Speed WiFi 6 AX3000 | Gigabit Ethernet Port. Fast Broadband Internet Access

The Surging Power Comes From The Inner Cores

• Equipped with MTK MT6877, an eight core CPU architecture chip, using a 6nm process technology, supporting multi carrier aggregation technology, with a theoretical peak of up to 2.77Gbps;
• Support 3GPP Rel.15 5G NR protocol and sub-6 GHz frequency band; Supports 5G, TDD, FDD frequency bands.

High Rate

• Theoretical download rate of 2.77 Gbps

NSA/SA

• 5G dual-mode network, compatible with 4G

Sub-6G

• Support mainstream operator frequency bands

ISP

• Support mainstream operator certification

Only Fast and Unbreakable, True WiFi 6

Using MTK WiFi chip: MT7981BA+MT7976CN+MT7531AE， Supports WiFi 6 AX3000 and can support 128 users to use it simultaneously

Higher Speed, Stronger Performance

• Three 2.4/5GHz 5dBi high gain antennas form a three antenna array, overlaid with MU-MIMO beam forming， Higher speed, stronger wall penetration performance
• 6 cellular antennas ensure that users can receive high-quality and stable 5G signals in different situations

Integrating the Future with Computing, Guiding the Future with Intelligence

Edge computing, content distribution, and devices also support 2.5T AI computing power, which can make full use of uplink and downlink network resources

Super Upward, Enjoy Silky Smoothness

R4A-77 provides a super uplink solution that theoretically delivers high-speed uploads of over 1.25Gbps with a latency of less than 10ms. It integrates uplink resources from two frequency bands, ensuring seamless high-definition live streaming and video calls.

Wireless and Wired, Suitable For Both Movement and Stillness

• R4A-77 provides two gigabit Ethernet ports, which can be used for both 5G network and wired broadband high-speed internet access.
• Wired and wireless internet can be freely switched, providing more network options.

Free Switching

• 5G/wired network

High Speed and Low Latency

• 1Gbps high-speed network port

Intelligent and Agile, Think What You Want

Mesh networking, fearless of wall penetration, full house coverage.

More User-friendly and Effortless

• Easy to manage: user-friendly interface, supports web and mobile applications
• Easy to maintain: supports remote upgrades and management of FOTA/TR069

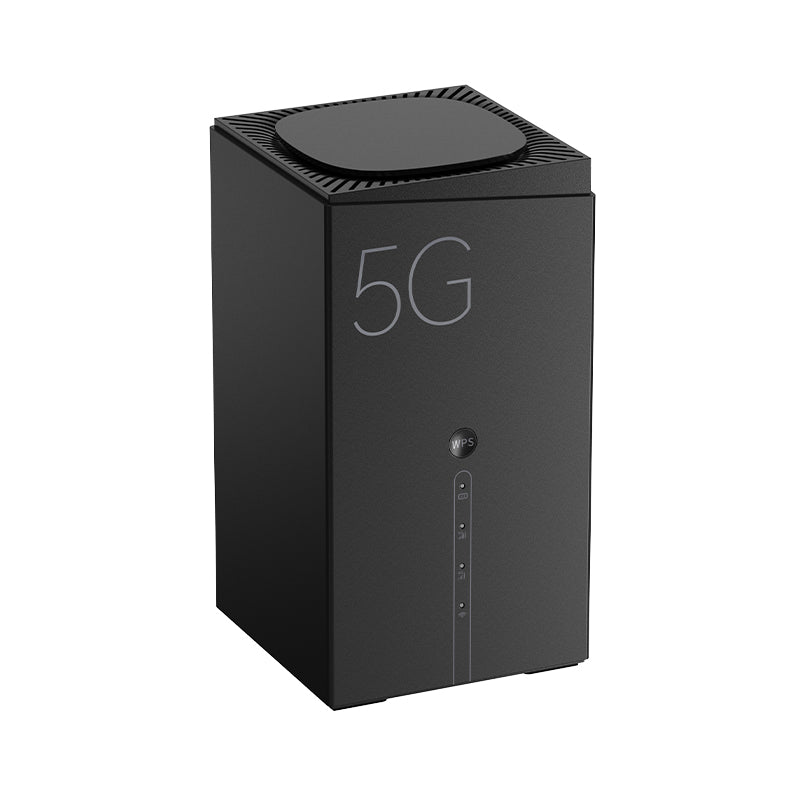

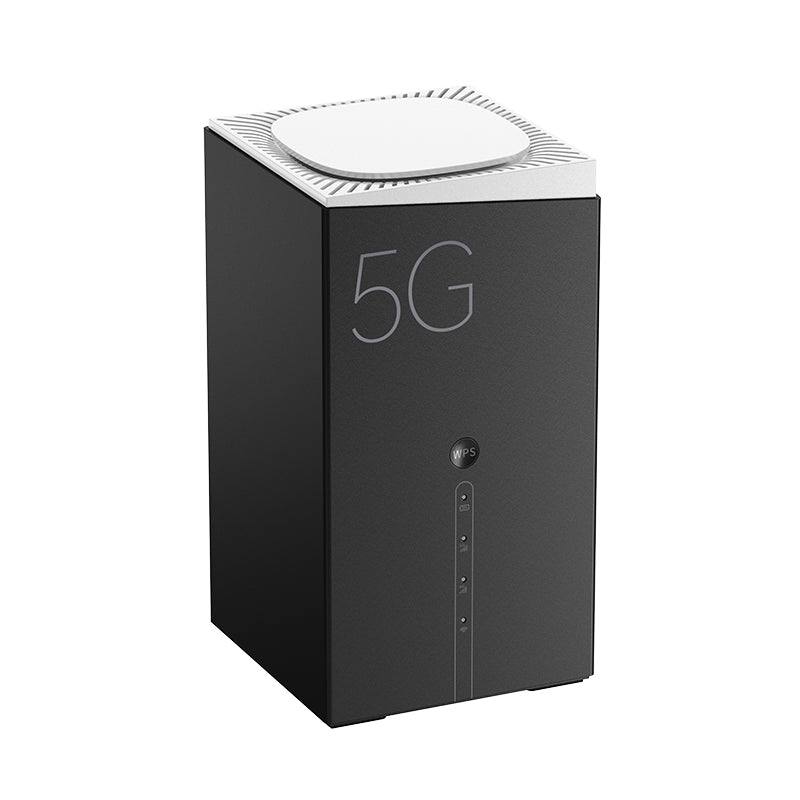

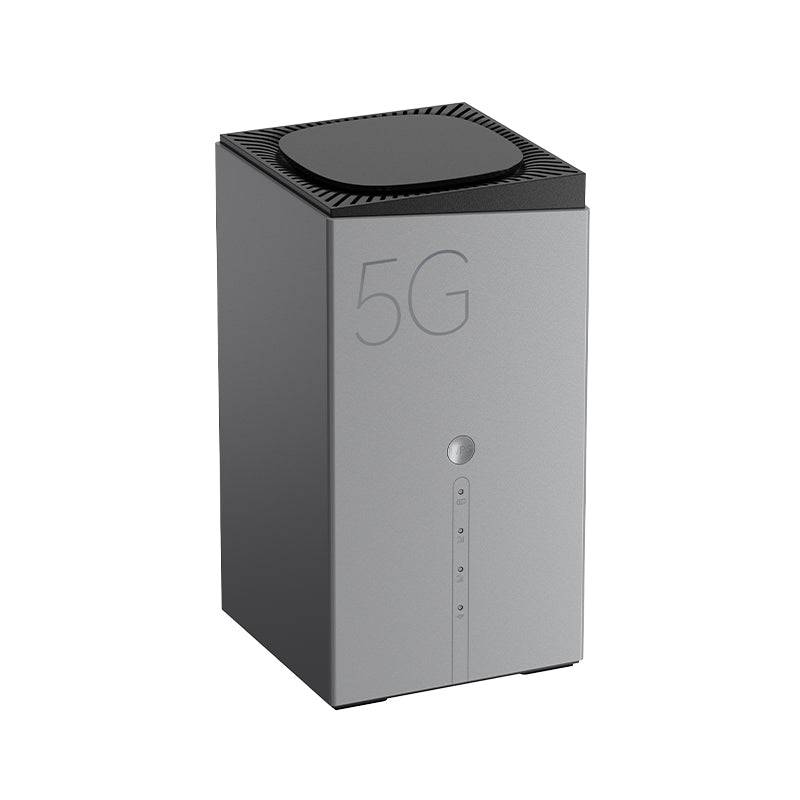

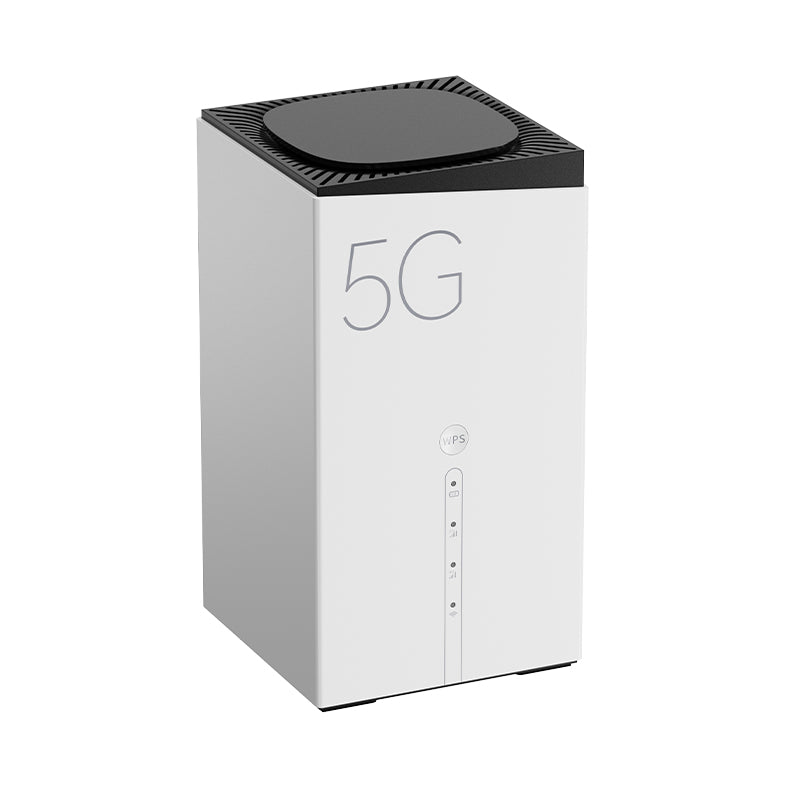

Clever Design, More Home Decor

• Linear design with classical aesthetic appeal
• Matte surface, comfortable to touch and highly approachable
• Elegant color tone, perfectly integrated with modern home decor

Low Power Consumption, Quieter

• Integrated MediaTek 5G ultra security enhancement provides lower energy loss.
• Smart antenna beam forming technology enables direct signal transmission to users.

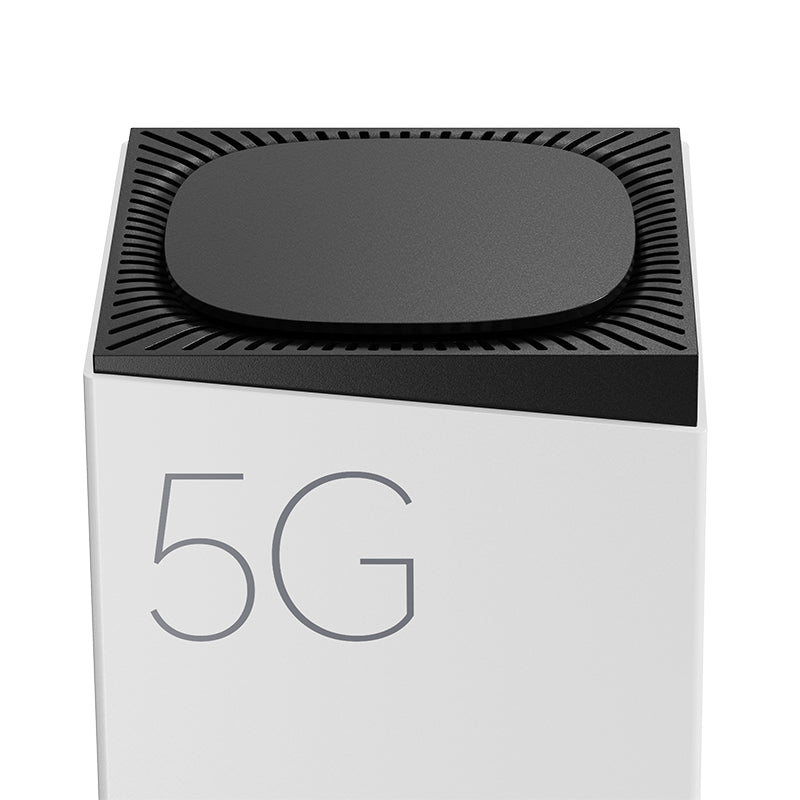

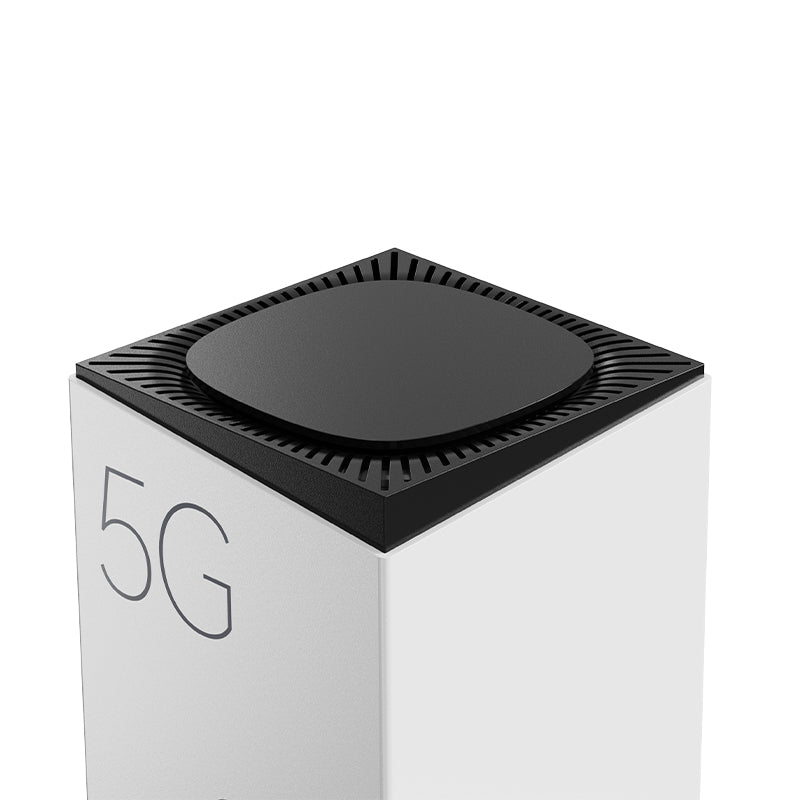

• Unique heat dissipation design can disperse heat and reduce the temperature of the casing.

Product Status:

• 100% New, Unlocked.
• Works in All Countries of The World.

General Information

● Product: 5G CPE

● Model: R4A-77

● Target Market

• R4A-77-EAU for Europe, Middle East,Africa, Asia.
• R4A-77-LAM for Mexico, Latin America.
• R4A-77-NA for North America.

● Highlights

• MTK 5G 6nm MT6877, stable network performance，WiFi6 AX3000.
• Certificates: CE/FCC ability

Specification

● Chipset: MTK MT6877

● Memory: LPDDR4X 2GB RAM+EMMC 8GB ROM or above

● WiFi: MT7981BA+MT7976CN+MT7531AE

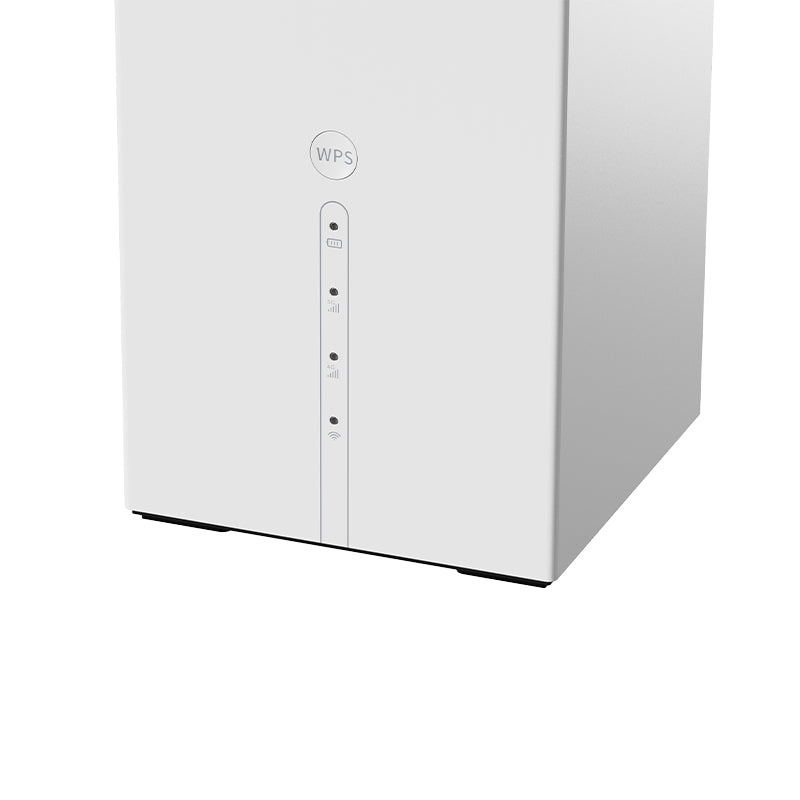

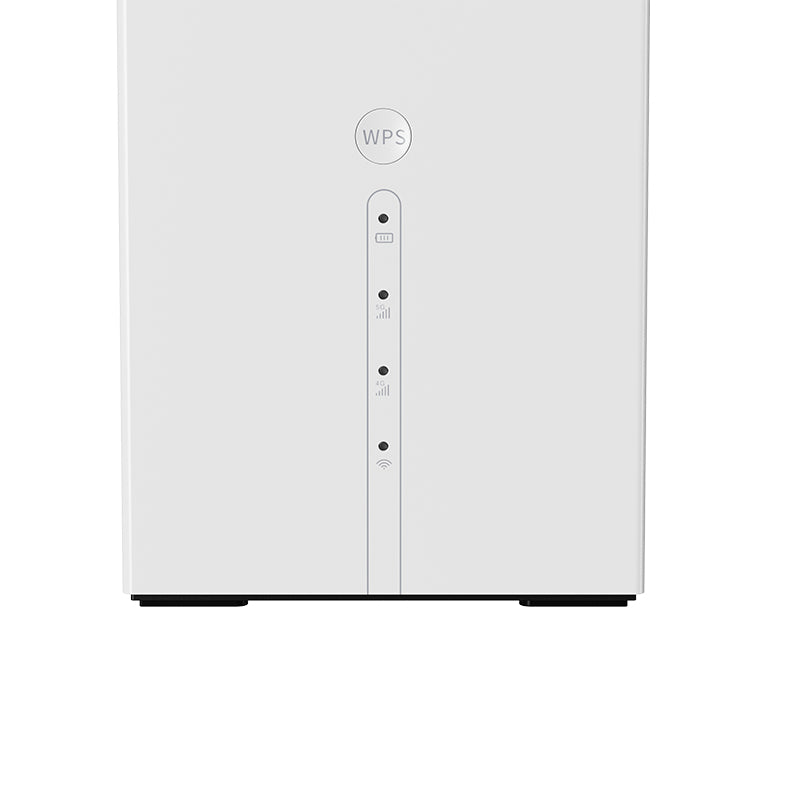

● LED: Power /5G signal /4G signal /WiFi

● Protocal: 3GPP Rel.15，5G NR，SA/NSA，Sub 6G/LTE Category 18

● R4A-77-EAU Bands

• 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
• 4G: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
• 3G: B1/B2/B5/B8

● R4A-77-LAM Bands

• 5G NR: n2/n5/n28/n66/n78
• 4G: B2/B4/B5/B7/B8/B28/B42/B43/B66
• 3G: B1/B2/B4/B5/B8

● R4A-77-NA bands（TBD）

• 5G NR: n2/n5/n12/n25/n66/n41/n48/n71/n77/n78
• 4G: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42/B43/B48/B66/B71
• 3G: B2/B4/B5

● CA/ENDC

● Support mainstream 2CC LTE+1CC NR ENDC combination, as well as LTE 2CA and partial 2CA NR.

● Throughput

• NR：Downlink/Uplink up to 2.77Gbps/1.25Gbps
• LTE：Downlink/Uplink up to 1.2Gbps/150Mbps
• WCDMA：Downlink/Uplink up to 42.2Mbps/11.5Mbps

● Antenna: 4*4 MIMO

● Bands: 2.4G，5.8G

● Protocal: WiFi-6, 802.11a/b/g/n/ac/ax, 2.4GHz & 5GHz Simultaneous Dual-Band Wi-Fi;

● Throughput

• 5 GHz: 2402 Mbps (802.11ax, HE80)
• 2.4 GHz: 574 Mbps (802.11ax)
• Users: 128 users

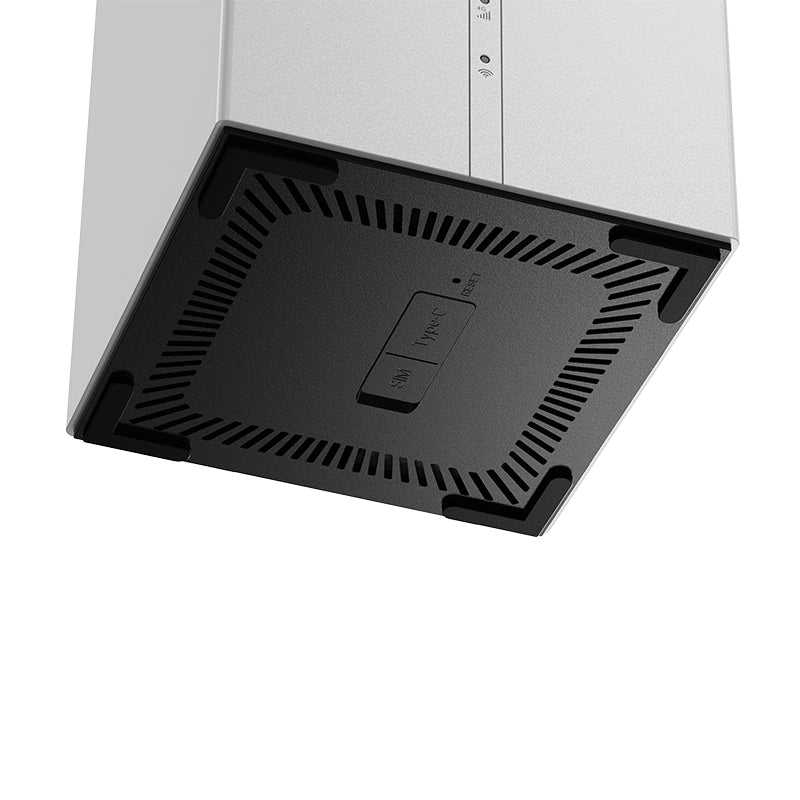

● SIM card:

• NANO SIM card，eSIM optional
• single SIM card，hot plugging supported

● USB: TYPE-C USB2.0

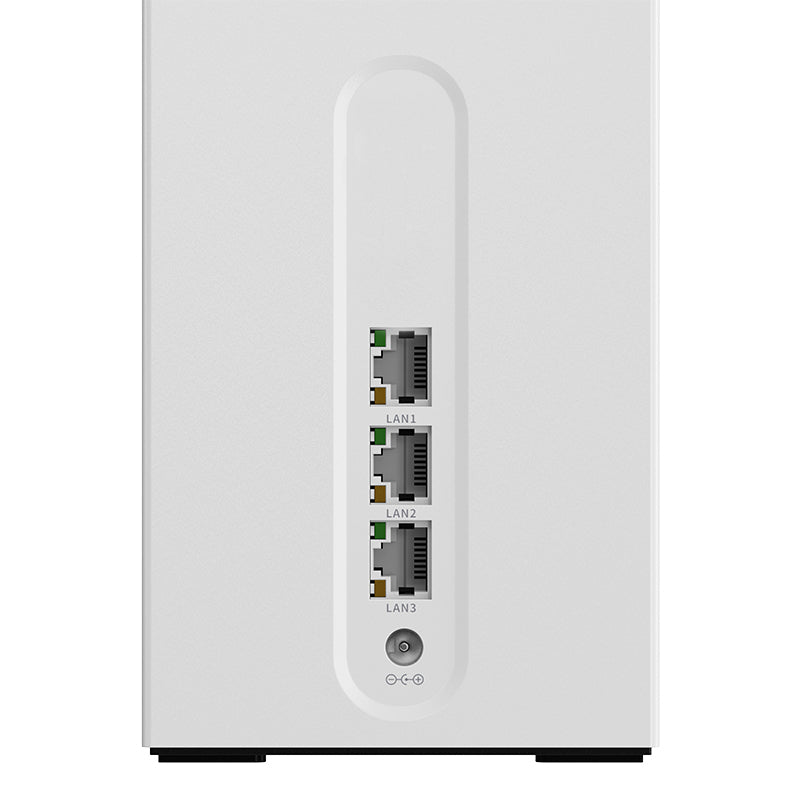

● Ethernet Port: 3 x RJ45 ( 2xLAN 1 Gigabit,1xLAN/WAN 1 Gigabit)

● Languages: English

● Management: Web UI

● Working Mode: Gate way by default

● Network Setup: APN management/Network selection/Statistics/Data usage

● LAN: LAN IP Address/Multicast Proxy/DHCP Service Type/DHCP Server /DHCP Lease Reservation/DHCP Lease Status

● WAN: DHCP/PPPoE/Static IP

● Security: Firewall/VPN Passthrough/DMZ/Port Forwarding/Port Filter/NAT/PP2P/Parental Control/UPnP/IP/MAC/URL Filter/IP sec

● SMS: Support

● DHCP: DHCP/IPv4/IPv6

● Guest Network: Yes

● WIFI Encryption: WPA, WPA2, WPA3

● Support: WIFI Band Steering, MTU Setting, WPS, Fota, SIM Lock, Auto Pin, NTP

● MESH: EASY MESH optional

● TR069: Optional

● Button: 1*WPS/MESH + 1*RESET

● Power input: AC 100~240V, 50/60Hz, DC 12V

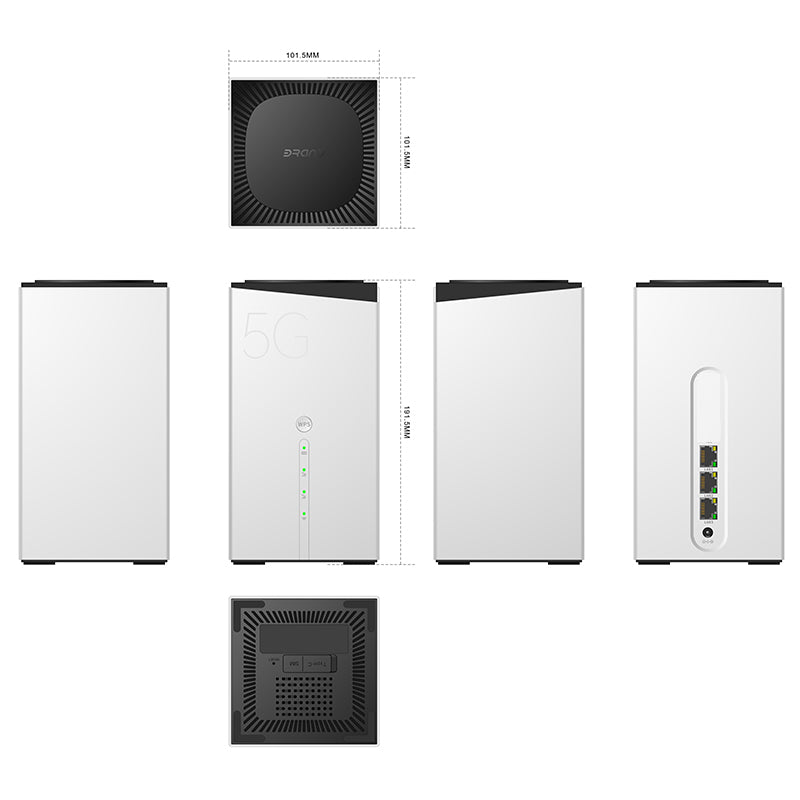

● Size 101.5*101.5*191.5mm

● Working Temperature: 0℃-45℃

● Storagy Temperature: -20℃-70℃

● Humidity: 5%-95%
