TOZED ZLT 5G CPE X300 MAX WiFi 7 BE19000 6GHz Indoor Router
TOZED ZLT 5G CPE X300 MAX WiFi 7 BE19000 6GHz Indoor Router
Não foi possível carregar a disponibilidade de recolha
ZLT X300 MAX is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and 802.11a/b/g/n/ac/ax/be Tri-bands Wi-Fi access needs for residential, business and enterprise users. The product supports advanced Gigabit networking and Tri-bands Wi-Fi AP functionalities. It supports built-in high-gain 5G omnidirectional/directional antennas, and adopts a smart antenna switching algorithm to switch the corresponding high-gain directional antennas intelligently according to the direction of the base station.It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.
Product Status

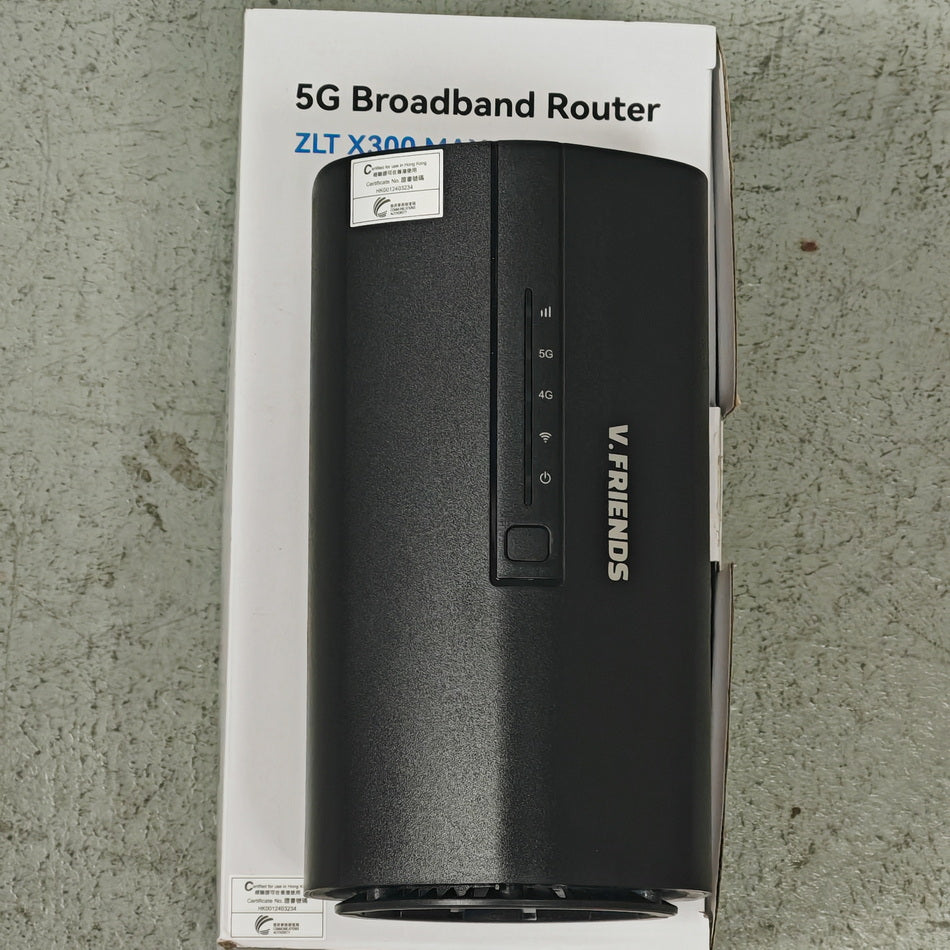

- White or Black Colors
- New and Unlocked Global Sim Card
- No External Antennas Ports
- Support Changing IMEI

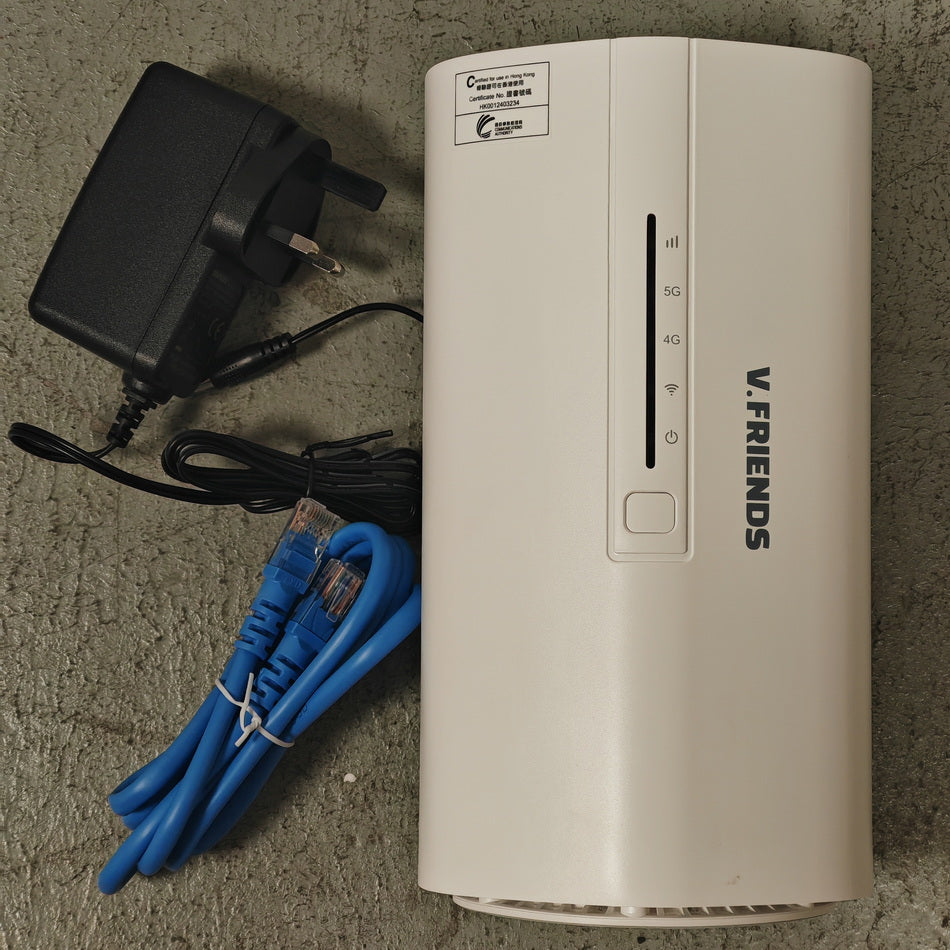

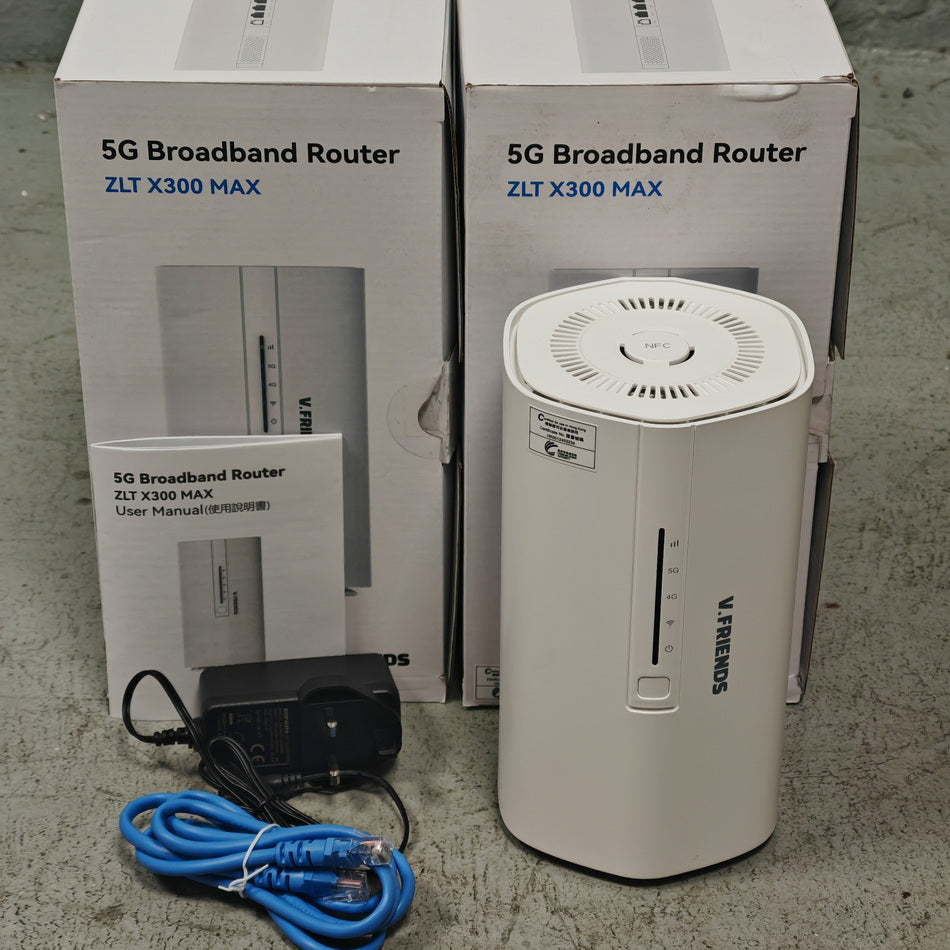

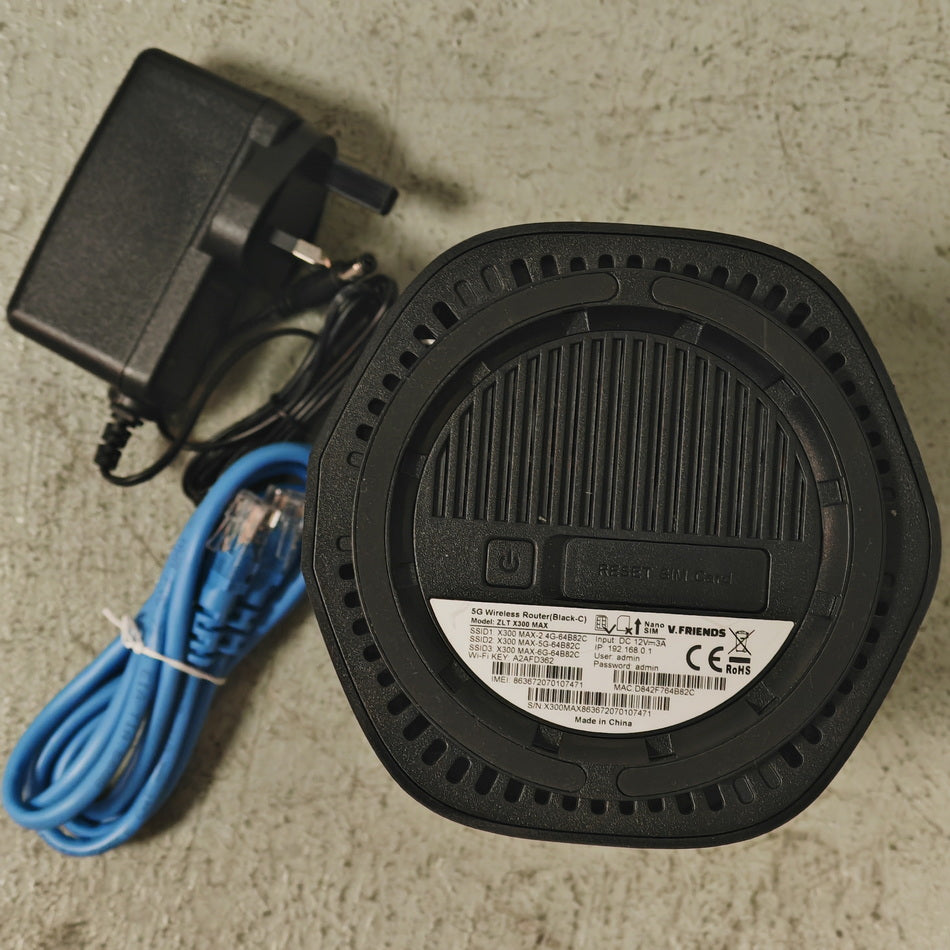

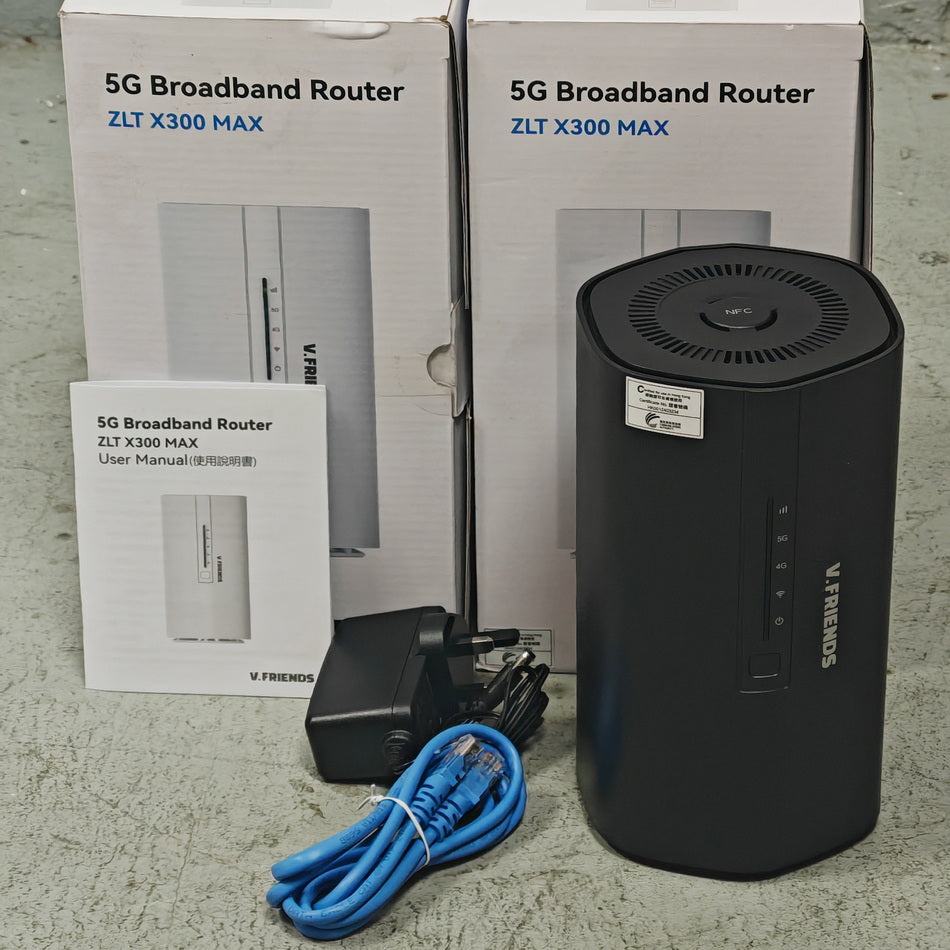

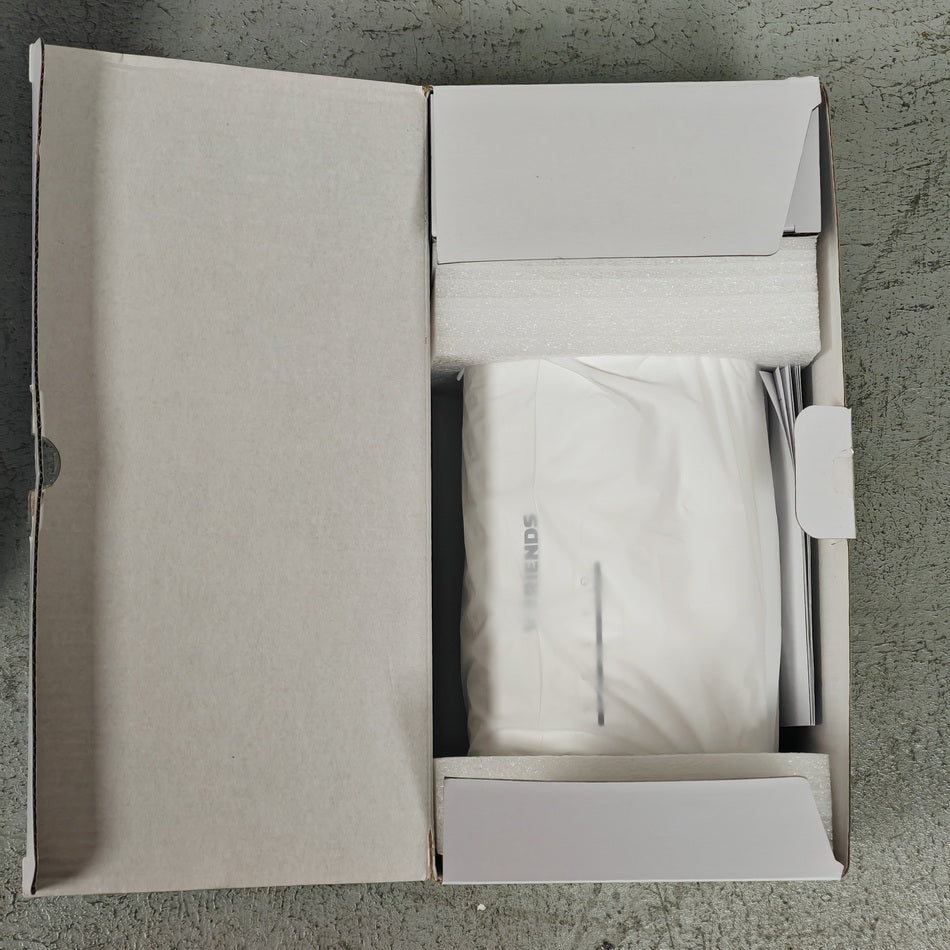

Packing List
- ZLT X300 Max *1
- User Manual *1
- Lan Cable *1
- Power Adapter *1
ZLT X300 MAX 5G Indoor CPE Specifications
Hardware Specifications
● Chipset
- MTK T830
- Wi-Fi: MT7996+MT7976(2.4G)+MT7977(5.8G)+MT7977(6G)
● Cellular network mode
- NSA/SA/TDD-LTE/FDD-LTE/HSPA+
● Flash: 32GB EMMC
● RAM: 8GB LPDDR4
● LED
- Power
- Wi-Fi Switch Status
- 4G Signal Indicator
- 5G Signal Indicator
- Signal Quality Indicator
● Button: Reset Tact Switch, WPS Button

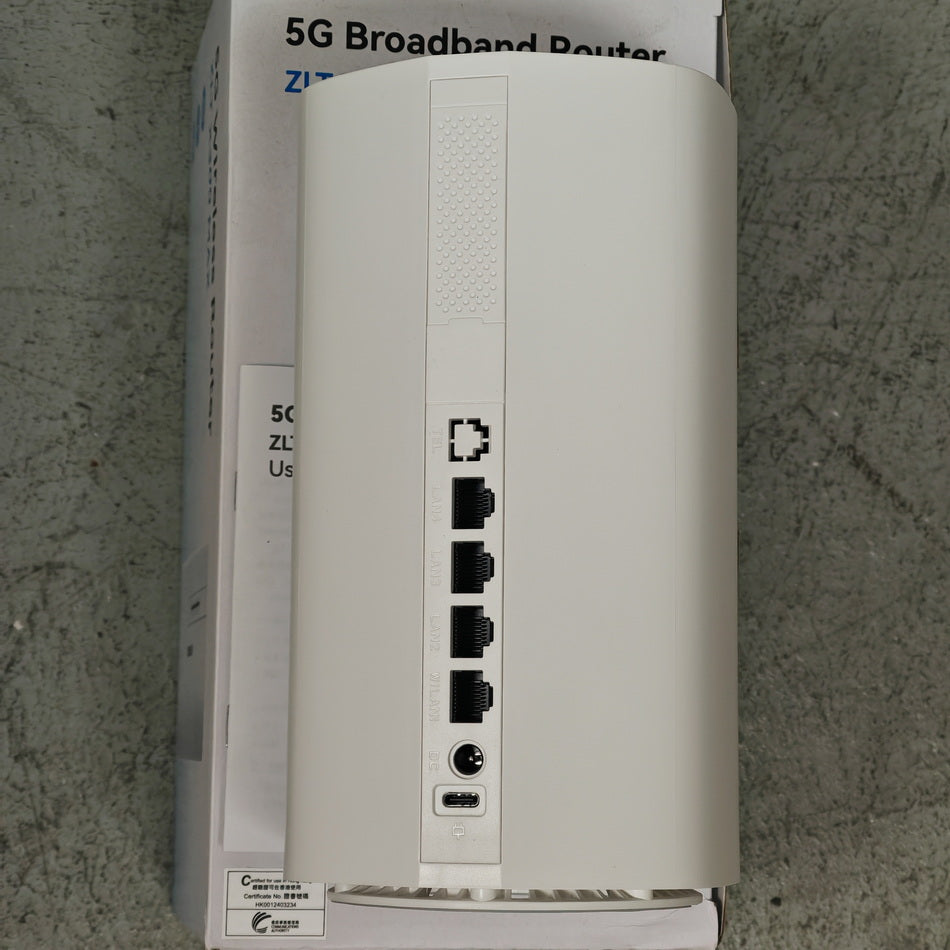

- 1* 5Gbps+ 1* 2.5Gbps LAN+ 2* 1Gbps LAN
- SIM Slot * 1 (4FF)
- DC Socket
- One TYPE-C 9-12V (Support fast charge protocol)
- One TYPE_C USB3.1 for Manufacture
- 2 *1Gbps
- 1 *2.5Gbps
- 1* 5Gbps
● Sim
- 1*SIM (4FF, Nano SIM)
- Support 1.8V & 3.0V
● NFC: Support one-touch connection to WiFi (Only for Android device with NFC function)
● Antenna: 23 Built-in(5G<E&WIFI)
● Dimensions: 120*120*218MM
● Weight: 1200g
● Power Consumption: < 36W
● Power Supply
- 1. DC 12V/4A
- 2. TYPE-C 9-12V (Support fast charge protocol)
● Operating Temperature: 0℃--45℃
● Storage Temperature: -30℃--65℃
5G Capability
● 3GPP Release 16: NSA&SA
● Support Bands: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78/N79
● NR Modulation: DL 256QAM, UL 256QAM
● NR CA: DL 4CA/ UL 2CA
● NR SCS: 30khz, 15khz
● MIMO: 4 × 4 MIMO
● ENDC: TBD
● Channel BW: 5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M, 100M
● 5G HPUE: Support HPUE
● Peak Throughput: 5G NR DL:5.4Gbps/UL:500Mbps (@300MHz,SA TDD 8:2 ratio)
● Output Power@25℃:
- N41/N77/N78:PC1.5
- N40/N41/N77/N78:PC2
- OTHER BAND:PC3
● Antenna: 8 Built in
- 1-5 dBi(omnidirectional)
- 11 dBi (directional)
TDD-LTE/FDD-LTE/WCDMA
● 3GPP Release LTE: 3GPP Release 16
● Support Bands
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD: B38/B40/B41/B42/B43/B46(LAA)
- WCDMA: B1/B5/B8
● LTE Category DL:CAT19; UL:CAT18
● LTE Modulation: DL 256QAM, UL 256QAM
● LTE CA: 5CA
● LTE MIMO: 4 × 4 MIMO
● TDD/FDD LTE Peak Throughput: DL:1.6Gbps, UL:211Mbps
● OutputPower@25℃: 23±2 dBm
- 1-5 dBi(omnidirectional)
- 11 dBi (directional)
WiFi Capability
● Wi-Fi Band
- 2.4GHz+5GHz+6GHz
- 2.4G:2402~2482MHz
- 5G:5170~5835MHz
- 6G:5945~7125MHz
● Wi-Fi Mode: 802.11a/b/g/n/ac/ax/be
● Wi-Fi Antenna: 10 Built-in wifi antenna
● Output Power@25℃: 17 dBm/2.4G; 16dBm/5G; 14dBm/6G
● Wi-Fi Channel BW: 20MHz; 40MHz; 80MHz; 160MHz; 320MHz
● Wi-Fi Antenna Gain: 3 dBi/2.4G; 5 dBi/5G; 5 dBi/6G
● MIMO: 4*4
● Peak Throughput
- BE19000
- 2.4G: 1376Mbps
- 5G: 5765Mbps
- 6G: 11530Mbps
Software Specifications
● Language: English
● Https/Http: Both
● User Login: Support two users (admin user and normal user) and different limitation and display
● Network Status
- Signal strength
- Network type(5G/4G)
- SIM card status
- Wi-Fi status
- LAN status
● System Status: Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information
● Internet Settings: Network mode setup, Data switch, Roaming setup.
● APN Setup: APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size
● SIM Card
- PIN Management
- SIM card Authentication
● DHCP Setup
- Enable/disable DHCP server
- Configure DHCP IP Pool
- Configure DHCP Lease Time
● Static Route: Route Setup on WAN/LAN interface
● DDNS: Support
● Band Lock: Support
● PCI Lock: Support
● Cell Lock: Support
● SIM Lock: Support
● VPN: Support, GRE, L2TP, VPN Pass through
● Work Mode: NAT/ Router mode
Device Management
● Software Update
- Web GUI update
- TR069 update
● TR069: HTTP/HTTPS, Supports upload/download the ACS specified file, Support configure & queries parameters, Support remote upgrade, Support cycle monitor.
● Diagnostics
- Ping/Trace/Tcpdump
- Export diagnosis results and operation logs
WIFI Features Functions
● Support Wi-Fi Switch on/off
● Support Wi-Fi SSID/KEY setup
● Support Encryption: OPEN, WPA2-PSK, WPA/WPA2-PSK, WPA3-PSK, WPA2/WPA3-PSK
● Support SSID broadcasting
● Support Wi-Fi protocol IEEE 802.11 a/b/g/n/ac/ax/be up to WiFi7
● Support Wi-Fi bandwidth setup
● Support Wi-Fi channel self-adapt and select
● Support 2.4G/5G/6G Wi-Fi
● Support Wi-Fi maximum users
- 2.4G Wi-Fi: 64
- 5G Wi-Fi: 64
- 6G Wi-Fi: 64
● Support multi SSID and guest SSID
● Support WPS PIN/WPS PBC
Firewall Features
- DMZ
- Port Filter
- IP-Port Filter
- MAC Filter
- URL Filter
- IP MAC Binding
- ACL Firewall
- Speed Limit
- UPnP
