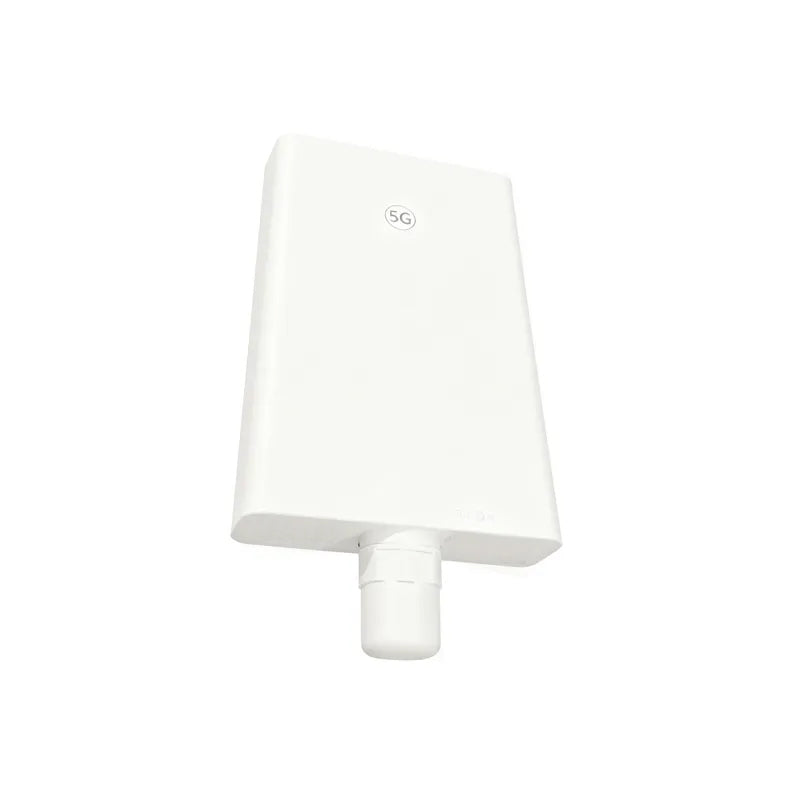

HUAWEI 5G CPE Max 6 H362-383 IP65 POE 5.5G Outdoor Router

The Zowee (Huawei) H362-383 CPE Max 6 is a revolutionary 5.5G Advanced outdoor router that represents the pinnacle of wireless communication technology. This cutting-edge device delivers unprecedented speeds up to 5.4 Gbps download and 500 Mbps upload, making it the ultimate solution for high-demand applications.

● The modem is equipped with antennas with up to 11 dBi gain and intelligent signal tracking, ensuring a stable connection even in challenging locations. The housing meets the IP65 standard, providing complete protection against dust and water, and a temperature resistance of -40°C to +55°C allows for operation in extreme conditions. Additionally, built-in surge protection up to 6 kV protects the device from sudden voltage spikes.

● Installing the Zowee 5G CPE Max 6 modem is quick and intuitive – simply mount the device on a wall or pole, connect it to a power source.

● The Zowee 5G CPE Max 6 is an outdoor modem that provides a stable and fast internet connection even in areas with poor coverage. It supports the latest 5G standard with download speeds of up to 5.4 Gbps, allowing for lightning-fast file downloads, 4K streaming, and interruption-free video conferencing. With support for TDD and FDD and 19 5G bands, the device is suitable for both dense urban areas and suburban areas.

● Ultra-high-performance 5.5G Advanced outdoor router with 5.4 Gbps download speeds, comprehensive 4G/5G band support, and unlocked design for global carrier compatibility.

Key Features:

● 5.5G Advanced Technology: Latest generation 5G with enhanced capabilities

● Ultra-High Speed: Up to 5.4 Gbps download, 500 MGbps upload speeds

● Comprehensive Band Support: Full 4G LTE FDD/TDD and 5G NR band coverage

● Unlocked Design: Compatible with all major carriers worldwide

● Dual Mode Support: Both 5G SA (Standalone) and NSA (Non-Standalone)

● Weather Resistant: IP65 rated for harsh outdoor environments

● Advanced Antenna Technology: Multi-MIMO design for optimal signal reception.

● 4G LTE Band Support: FDD Bands: 1, 3, 5, 7, 8, 20, 28, 32 & TDD Bands: 38, 40, 41, 42, 43

● 5G NR Band Support Bands: n1, n3, n5, n7, n8, n20, n28 (30MHz), n38, n40, n41, n71, n77, n78, n81 (SUL), n83 (SUL), n84 (SUL).

● Perfect for enterprise deployments, remote offices, construction sites, and any environment requiring the absolute fastest wireless internet connectivity available.

5G CPE MAX 6 Specification

3GPP

• 3GPP protocol: Release 16
• 5G-4G interworking: NSA option 3/3x，SA option 2

5G

Frequency Band

• FDD：N1/3/5/7/8/20/28/71
• TDD：N38/40/41/77/78
• SUL：N80/81/82/83/84
• SDL：N75

Bandwidth

• TDD: 100/90/80/70/60/50/40/20/15/10MHz
• FDD: 50/40/30/20/15/10/5MHz

5G Modes

• 5G NR (SA), 5G EN-DC (NSA)

5G_Technology

• 5.5G Advanced (Enhanced 5G)

DL MIMO

• 4*4 MIMO DL: N1/3/7/28/38/40/41/75/77/78
• 2*2 MIMO DL: N5/8/20/71

ULMIMO

• 2*2: N38/41/77/78 (SA only)

DL/UL modulation

• 256QAM/256QAM

DL/UL Peak throughput

• 5G NR 5.4Gbps/500Mbps (@300MHz,SA TDD 8:2 ratio)

No. of Carriers

• DL 3CC 300MHz
• UL 2CC 200MHz

4G

Frequency Band

• B1/3/5/7/8/20/28/32/38/40/41/42/43

MIMO

• 4*4: B1/3/7/28/38/40/41/42/43
• 2*2: B5/8/20

DL/UL modulation

• 256QAM/256QAM

LTE Category

• DL: 20; UL: 18

DL/UL Peak throughput

• 4G LTE 2.0Gbps/200Mbps

Antenna

• Antenna Gain: 11dBi(TBD)
• Antenna Technology: Advanced Multi-MIMO

Wi-Fi

• Protocol: 802.11 n  1*1 MIMO 2.4GHz, used for management purpose only
• Feature: Smart Phone APP

Basic Feature

• Dimension: 280mm x 180mm x 75mm
• Weight: ≈700g (excluding the power adapter)
• Interface: 1 RJ45*2.5GE, Power*1, SIM*1(4FF)
• Power Supply: PoE+ Included
• LED: 5G/4G
• Button: Reset
• Working temperature: -40℃ ~ +55℃, without solar radiation
• Protection Rating: IP65
• Mounting: Outdoor pole/wall mounting

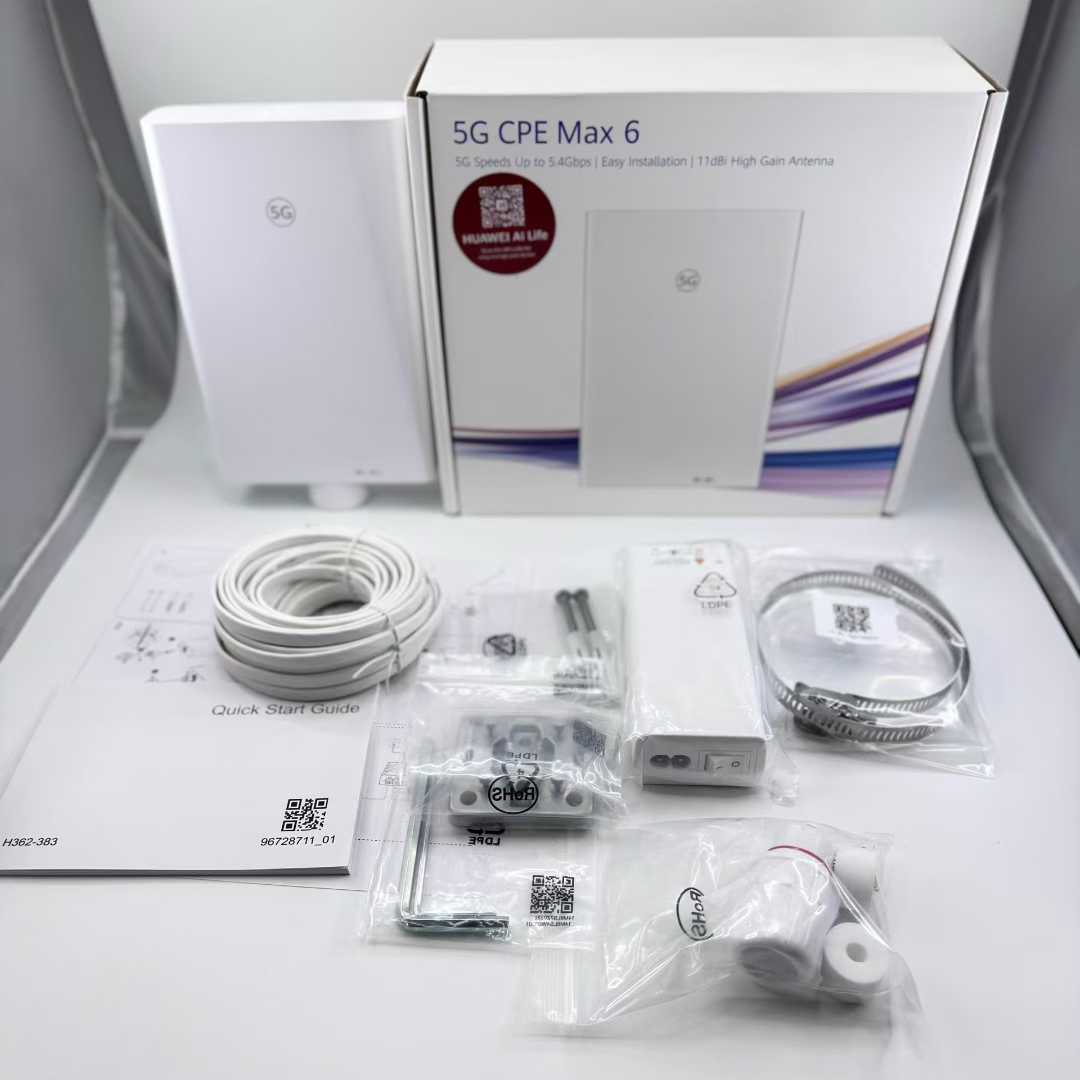

Packing List

• 5G CPE Max 6 H362-383 *1
• Lan Cable *1
• Power Adapter *1
• Other Necessary Accessories

Device Status

• New and Unlocked
• Global Sim Cards Work
