ZTE G5TS Pro WiFi 6 AX3000 5G 4G LTE Indoor Wireless Router

ZTE G5TS Pro - 5G Indoor CPE

G5TS Pro is the excellent entry-level model of the ZTE 5thgeneration 5G wireless router series. It supports 5G NR Rel.16 technologies , and provides Wi-Fi6 , four gigabit network interfaces , and full-voice services. It integrates all indoor terminal functions required for 5G FWA service deployment , so that consumers can enjoy incredible new experience in 5G AR, cloud games , and 4K videos.

Ultra-high-speed Internet connection

With its compact single-chip architecture , G5TS Pro achieves ultra-high performance-to-cost ratio , with a 5G NR download rate of 2 .86Gbps**, and Wi-Fi6 downlink rate of AX3000, demonstrating the ultra-high rate and ultra-low latency of 5G networks end to end.

Rich combinations to exploit the potential of spectrum

G5TS Pro supports global mainstream 3G/4G/5G frequency bands and combinations such as NR 2CC and multi-band ENDC, make full use of the existing spectrum resources of operators , and providing users with high-speed , wide-coverage , and smooth-handover cellular network roaming experience.

Abundant management and configuration interfaces

G5TS Pro supports local configuration management based on WEBUI and mobile apps , and remote management based on the TR069 and MQTT protocols. This improves user experience and provides cost-effective , efficient , and reliable solutions for operators' requirements for FWA terminal deployment , firmware upgrade , and O&M.

Features

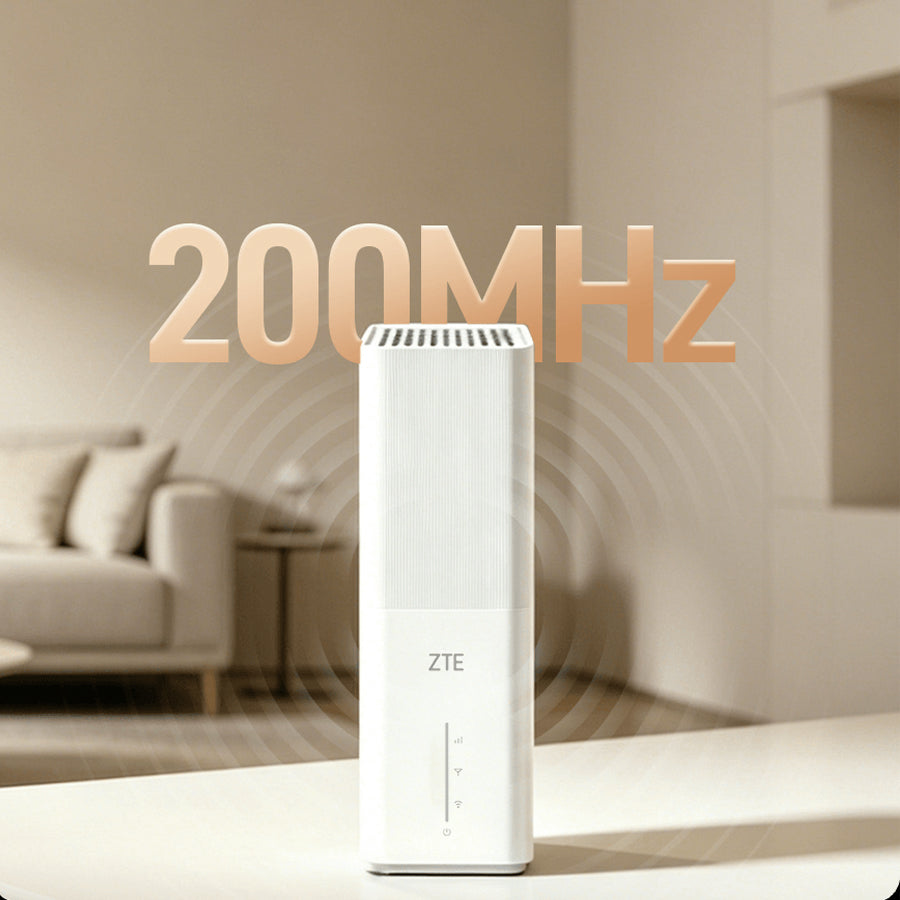

● 5G NR SA & NSA NR CA up to 200MHz Up to 2 .86Gbps DL rate

● Network Signal Detection and Position Suggestion

● VPN Client and VPN passthrough

● Wi-Fi6 AX3000, Wi-Fi auto Optimization

● Parental Control Time Management

● VoNR/VoLTE or VoIP RJ11 Port

● Bridge Mode and Cable Broadband

● ZTE security and stable FOTA

● 4 x RJ45 GE Ports

Product Status

● New Device

● Global Version

● Unlocked Sim Card and Network

● Multiple languages: Arabic , Chinese , Danish , English , Finnish , French , German , Italian , Norwegian , Portuguese , Portuguese (Brazil), Russian , Spanish , Spanish (Latin America), Swede

● We'll open the box to test it, so it's opened-box

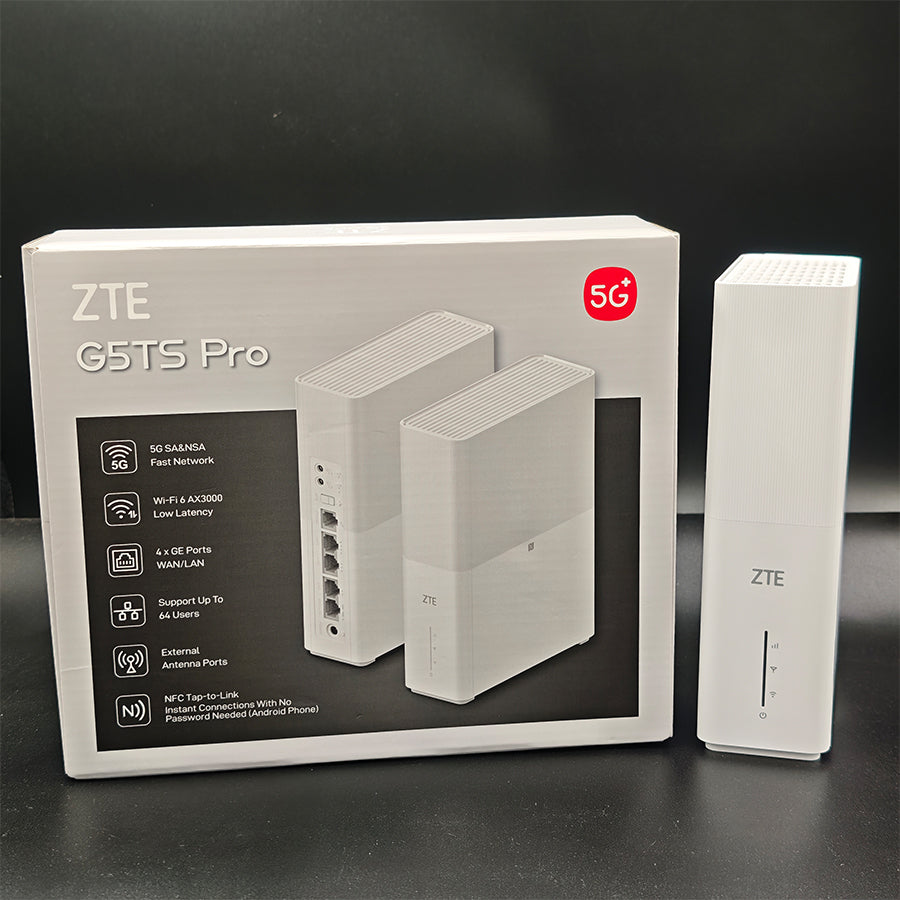

Packing List

● ZTE 5G Router G5TS Pro *1

● Network Cable *1

● UK/EU/AU/US Power Adapter *1

● Original Box *1

ZTE 5G CPE G5TS Pro Specifications

Hardware specifications

5G NR Interface

● 3GPP Release 16

● Supports both NSA and SA modes

● Frequencies: n1/n20/n28/n3/n38/n40/n41/n5/n66/n7/n75/n77/n78/n8

● 4 MIMO: n1/3/7/38/40/41/77/78

4G LTE Interface

● 3GPP DL Category6 , UL Category5

● Frequencies:

   FDD: B1/B2/B20/B28/B3/B32/B4/B5/B66/B7/B8

   TDD: B34/B38/B39/B40/B41/B42/B43

● 4 MIMO: B1/3/7/38/40/41/42/43

UMTS Interface

● DC-HSDPA/HSPA+

● Frequencies: B1/2/4/5/8

Wi-Fi technology

● Wi-Fi6 , 802.11 b/g/n/a/ac/ax , 2.4G&5G

● MIMO: 2*2 for 2.4G&5G

● Speed: AX3000

● Access number: 5GHz up to 32 , 2.4GHz up to 32

Maximum power consumption

● About 16W

Speed

● 5G ENDC(LTE FDD + Sub6G): DL 1.73Gbps , UL130Mbps

● 5G SA: DL 2 .86Gbps ,UL 160Mbps

● LTE FDD:DL 300Mbps ,UL 75 Mbps

● LTE TDD:DL 220 Mbps ,UL 15 Mbps

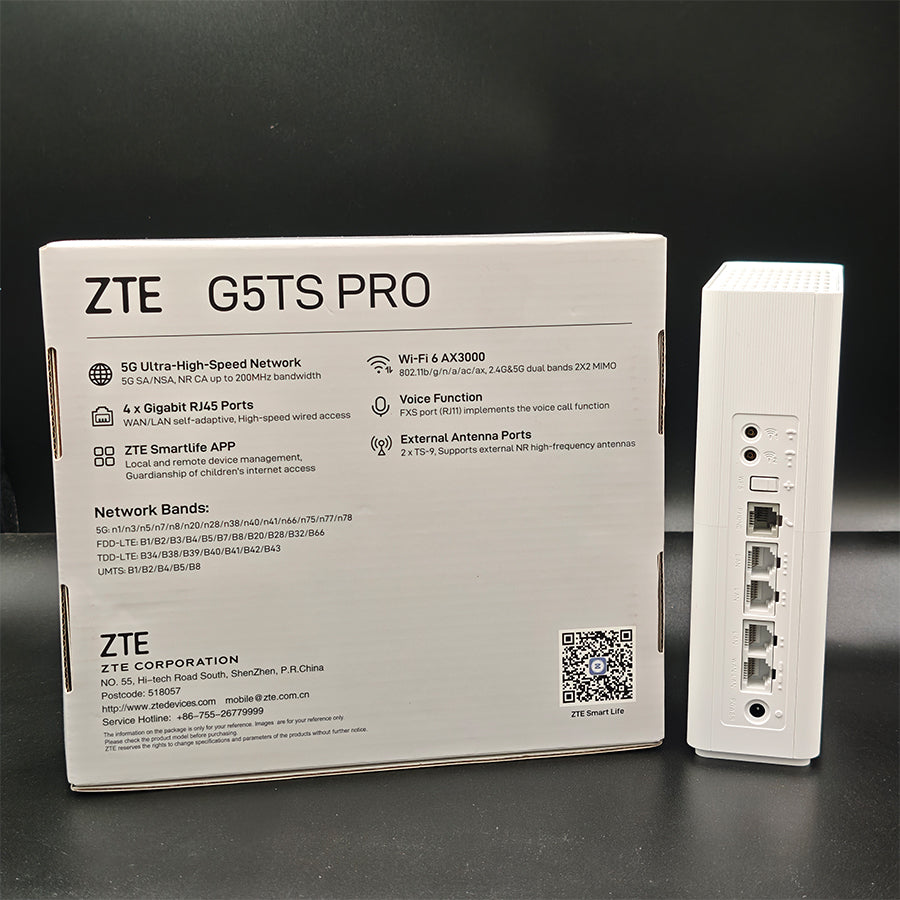

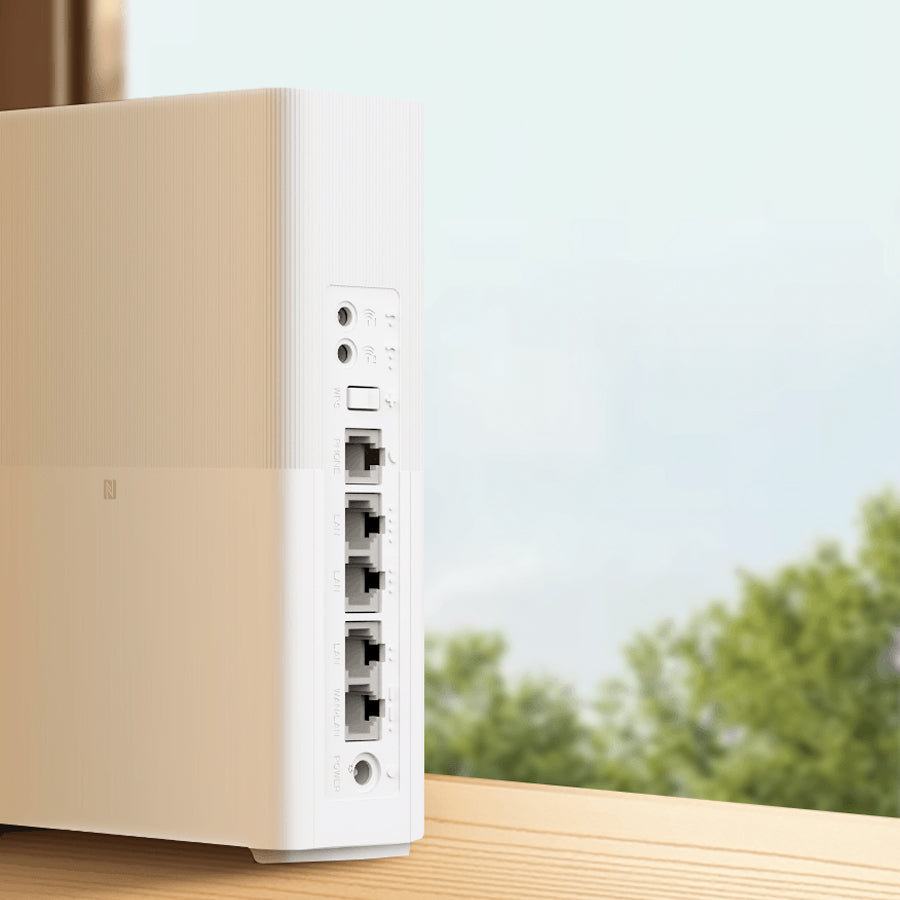

Interface

● RJ45 : 4 , 10Base-T /100Base-T /1000Base-T

● RJ11 : 1 , Voice services

● USB: 1 , Type C, Only for debug

● SIM slot: 4FF/eSIM (default is SIM slot)

● Reset hole to restore factory default

● WPS button to activate the PBC(Push Button Config) function

● TS-9: 2 , External Antenna Ports

LED

● Power / Wi-Fi: 1 LED (White)

● Network: 1 LED (White/Blue/Red)

● Singal Strength: 1 LED (White/Blue/Red)

Package contents

● AC Adapter: 12V/2A

● Ethernet cable

● Quick Start Guide

Antenna Gain

● 5G/4G/3G:

700~960MHz: up to 1.5dBi, 1450~2700MHz: up to 2.5dBi, 3300~4200MHz: up to 4dBi

Certification

● CE , WEEE , ROHS , REACH, Wi-Fi

Environment

● Operating temperature 0 to 40℃

● Storage temperature -40 to 70℃

● Humidity 5% to 95% (Non-condensing)

Artwork

● Dimensions: 187.5*135*52mm

● Weight: 1.2KG

Software specfications

Device Mode

● Automatically mode (wireless or wire auto switch)

● Daul WAN

● Hybird mode (wireless and wired are used at same time)

● Wireless mode

● Bridge mode

● Cable Broadband Mode

Firewall

● Port Forwarding

● Port Filtering

● Port Mapping

● Domain Filtering

● MAC address Filtering

● Upnp

● DMZ

● Remote Access/Ping switch

Device Managemnt

● Connected device Management

● SMS

● PIN/PUK management

● APN management

● Lock Frequency/Lock Cell

● TR069 with TR181 data model default

● Upgrade: FOTA / TR069

● ZTE Smartlife APP

● Device can FOTA/TR069 on bridge mode

● PC/Phone/PAD Web UI management selfadaptation

Voice

● VoNR,VoLTE ,CSFB ,VoIP

Wi-Fi

● Wi-Fi Switch

● Bandsteering

● Security mode: WPA-PSK/WPA2-PSK , WPA2 -PSK/WPA3-PSK ,WPA2-PSK

● Wi-Fi Broadcast

● WiFi Isolation

● Auto channel selection

● WPS

● EasyMesh

● GuestSSID support

● Wi-Fi Sleep Mode

IP Networking & Routing

● IPv4/IPv6 dual stack (NDP IPv6)

● DHCP server

● VPN client: L2TP\PPTP\IPSec \GRE

● VPN pass-through(L2TP/PPTP/IPSec)

● NAT/NAPT

● Sip ALG

● Multiple APNs

Special Feature

● Preferred Position: Can help user to find a good position

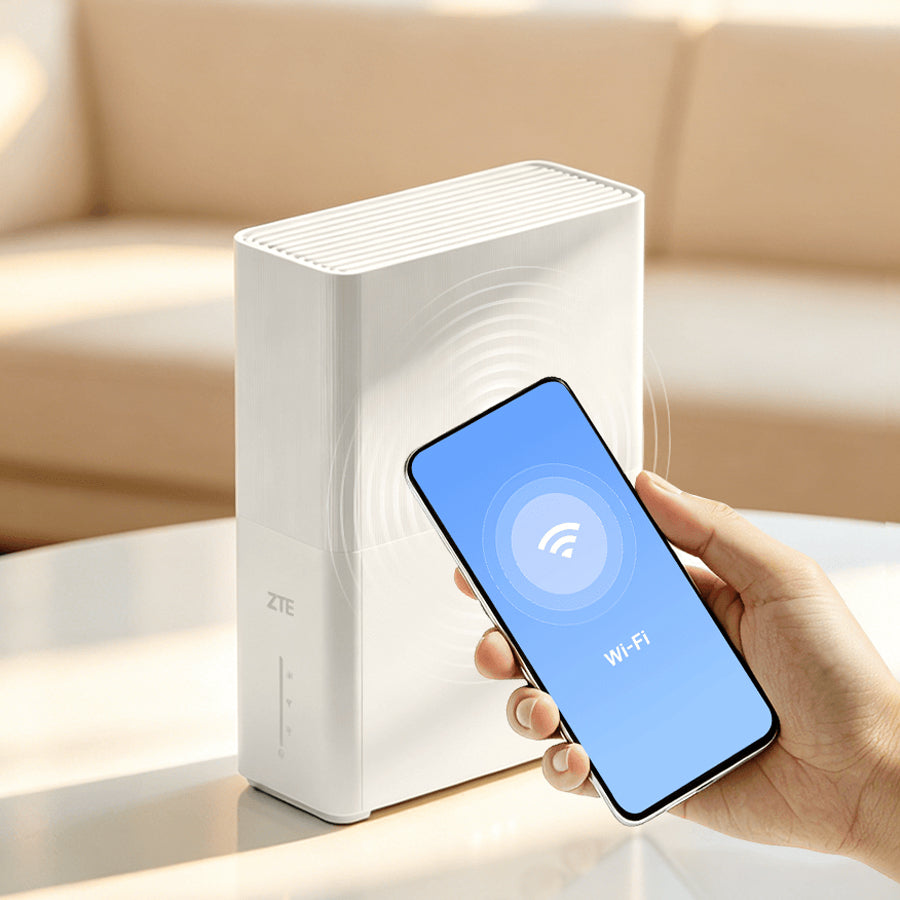

● NFC: Andriod phone touch can access the Router WiFi

● Device Diagnosis will list all device running key status and give fix solution

● OpenWrt
