HUAWEI 4G CPE Pro 3 B628-350 Dual Band Gigabit WiFi Modem

HUAWEI 4G CPE Pro 3 B628-350 is a 4G LTE WiFi router which support peak LTE speed up to 600Mbps with 4 x 4 MIMO technology, it is simple to set up, just plug in the Nano-SIM card. Connect your phone, laptop and other Wi-Fi devices to the router anywhere you go. From your living room to the cafe, high-speed Wi-Fi follows you. The newly designed LTE antennas receive more signals, thus further enhance the speed.

B628-350 4G Wireless router also supports LTE category 12 with Qualcomm MDM9250 chipset. This Huawei B628 router is capable of delivering data transfer speeds of up to 600 Mbps on a 4G network, while the 2.4/5 GHz frequency support provides data transfer speeds of up to 1167 Mbps. It can support up to 64 wireless users to access the internet. There are two TS-9 connectors for external antennas. And the RJ45 & RJ11 ports are available for WAN/LAN and telephone.

Key Features

• Chipset: Qualcomm MDM9250-2
• 4G Speeds: DL 600Mbps, UL 100Mbps
• Support up to 64 devices
• WLAN: 802.11a/b/g/n/ac, 2.4GHz & 5GHz, 2x2 MIMO
• 1 x Telephone (RJ-11) Connector + 2 x RJ45 Ports
• 2 x External Antenna Ports

Product Status

• Unlocked Global Sim Card
• Almost New, No Scratches, Fully Tested

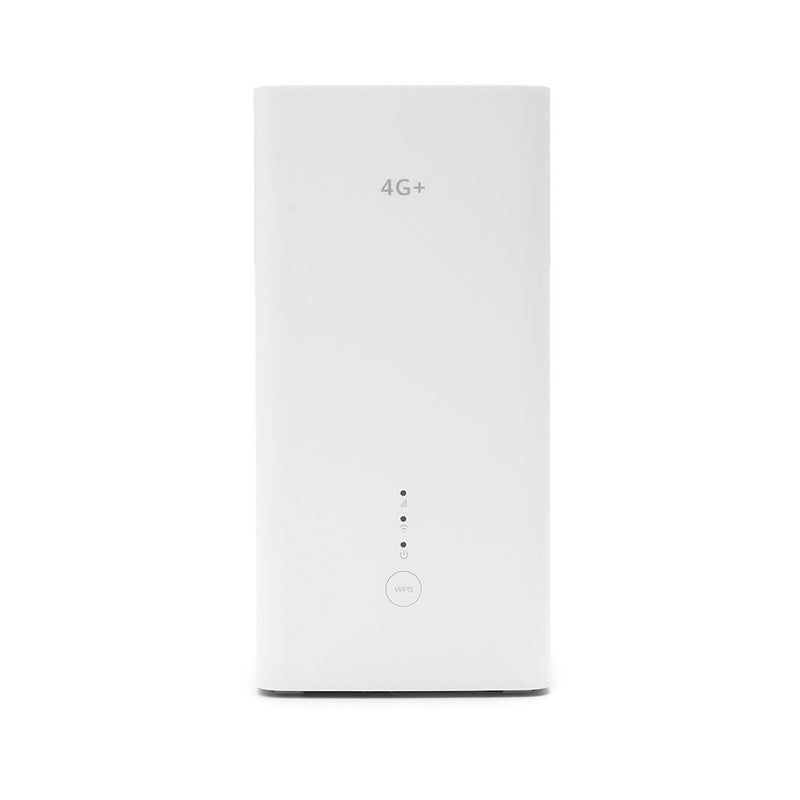

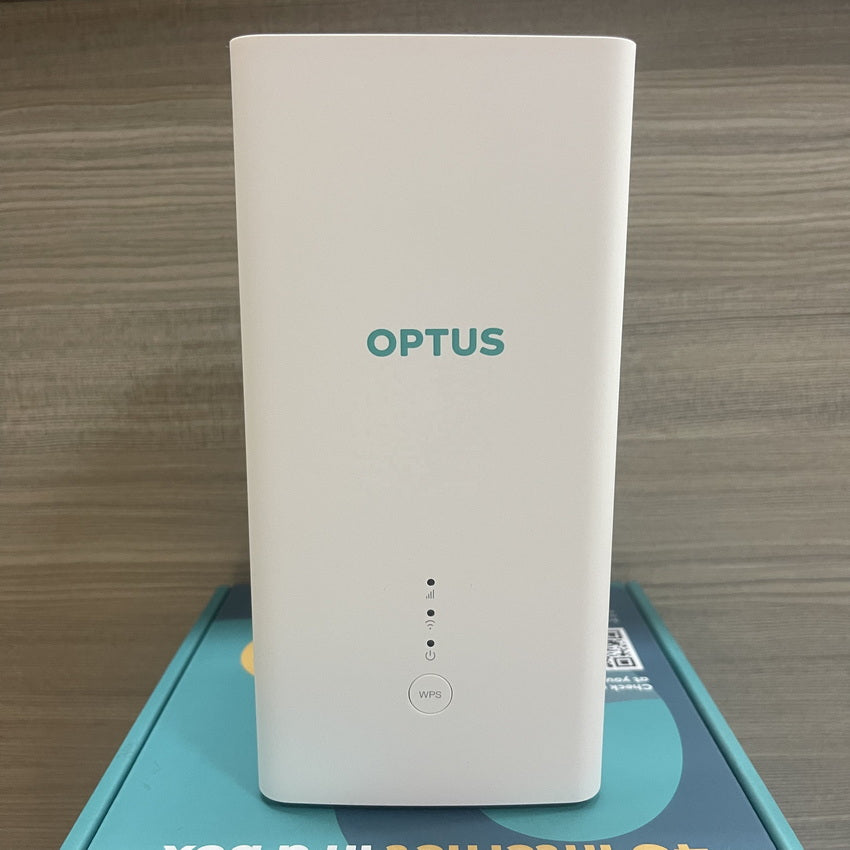

• The Logo on front side might be HUAWEI or 4G+ or OPTUS or WiFi Cube 3, Same Device but logo different.

What's on box?

• HUAWEU 4G CPE B628-350*1
• Power Adapter *1
• RJ45 Ethernet Cable *1
• Original or Neutral Packaging *1

HUAWEI 4G Router B628-350 Technical Specifications

● Product Type: HUAWEI 4G Modem

● Category: 4G LTE Cat12

● Network: 4G & 3G

● 4G Bands: B1/3/5/7/8/20/28/32/38/40/41. FDD B1 (2100MHz), B3 (1800MHz), B5 (850MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28 (700MHz), B32 (1400MHz) ; TDD B38 (2600MHz), B40 (2300MHz), B41 (2500MHz)

● CPU: Balong Chipset

● 4G Speeds: DL up to 600Mbps, UL up to 100Mbps

● WLAN: WiFi 802.11 b/g/n/a/ac, 2.4/5GHz, 4 x 4 MIMO

● Support up to 64 wireless devices to access the internet

● Antenna:

• Two LTE external antenna ports(TS-9 type)
• Built-in LTE/UMTS primary and secondary antennas

● Network Port

• One LAN / WAN port (RJ45)
• One LAN port (RJ45)
• One phone port (RJ11)

● Interface

• One power adapter port
• Two external LTE antenna ports (TS-9)
• One SIM card slot (Nano-SIM)

● Indicator LED Light

• Signal
• WiFi
• Power
• H

● Button: Reset/Power/H, support HiLink device one-button pairing, compatible with WPS

● Power Supply

• Less than 24 W
• AC / DC Power Supply
• AC: 100V – 240V, 50Hz / 60Hz; DC: 12V / 2A

● APP: HUAWEI AI Life App (Android), HUAWEI Smart Home App (iOS)

● More Functions:

• Mobile / Ethernet Network Access
• Voice Services
• SMS
• Firewall Service
• MAC Filtering
• Wi-Fi Authentication
• VPN Client / Pass-through
• IP Pass-through (optional)
• IPv4 & IPv6 Dual Stack and IPv6 Only (optional)
• Multi-APN (optional)
• 5GHz Preferred
• WebUI
• Operator Maintenance (optional)
• HOTA
• ETC

● Security

• Anti-brute force algorithms
• WPA-PSK/WPA2-PSK Wi-Fi encryption
• Firewall
• DMZ/PAP/CHAP
• DMZ/DoS Attack Protection

● Temperature:

• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -20 °C ~ 70 °C

● Humidity: 5% ~ 95% (non-condensing)

● Dimensions: 95 mm x 95 mm x 190 mm

● Weight: About 550g
