ZYXEL 5G Indoor CPE NR5103E WiFi 6 AX3600 Home Modem

Zyxel NR5103E 5G NR Indoor Route (3 Logo)

The Zyxel NR5103E 5G NR Indoor Router supports the latest 5G NR technology while at the same time remaining the full compatibility with 4G networks. The NR5103E is ideal for 5G NR FWA deployment. Certified with WiFi 6 and EasyMesh R2, the NR5103E allows service providers to deliver premium broadband services across customers’ homes or workplaces.

• 3GPP Rel. 15 5G NR Sub-6 GHz DL 2xCA, up to 4.67 Gbps/ 2.5 Gbps (DL/UL) with NSA & SA mode
• WiFi 6 (11ax) 4x4 + 4x4 for superior performance and coverage
• WiFi AX 5Ghz 2x2, 2,4Ghz 2x2 speed up to theoretical 3.6 Gbp
• 2.4/5Ghz shared WiFi connectivity, up to 64 devices
• Built-in 4x4 MIMO, 4 high performance 4G/5G antennas
• 4 female TS9 ports for external antenna connection
• Certified with WiFi 6 and EasyMesh R2

Product Status

• Refurbished equipment & completed full tested.
• Unlocked Global sim card.
• Works in Middle East, Asia, Europe, Africa, Australia, Chile.

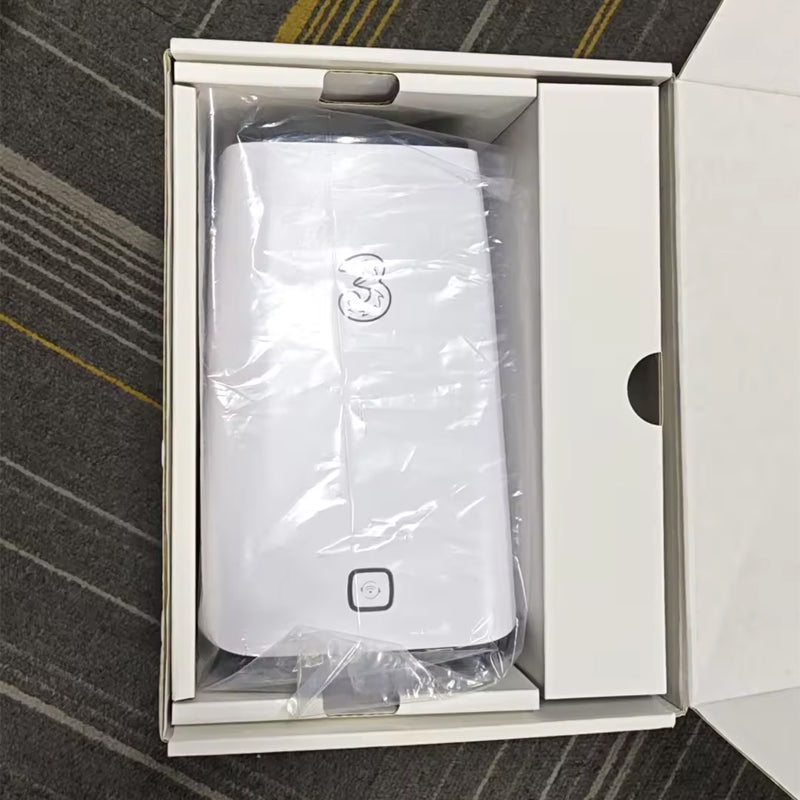

Packing List

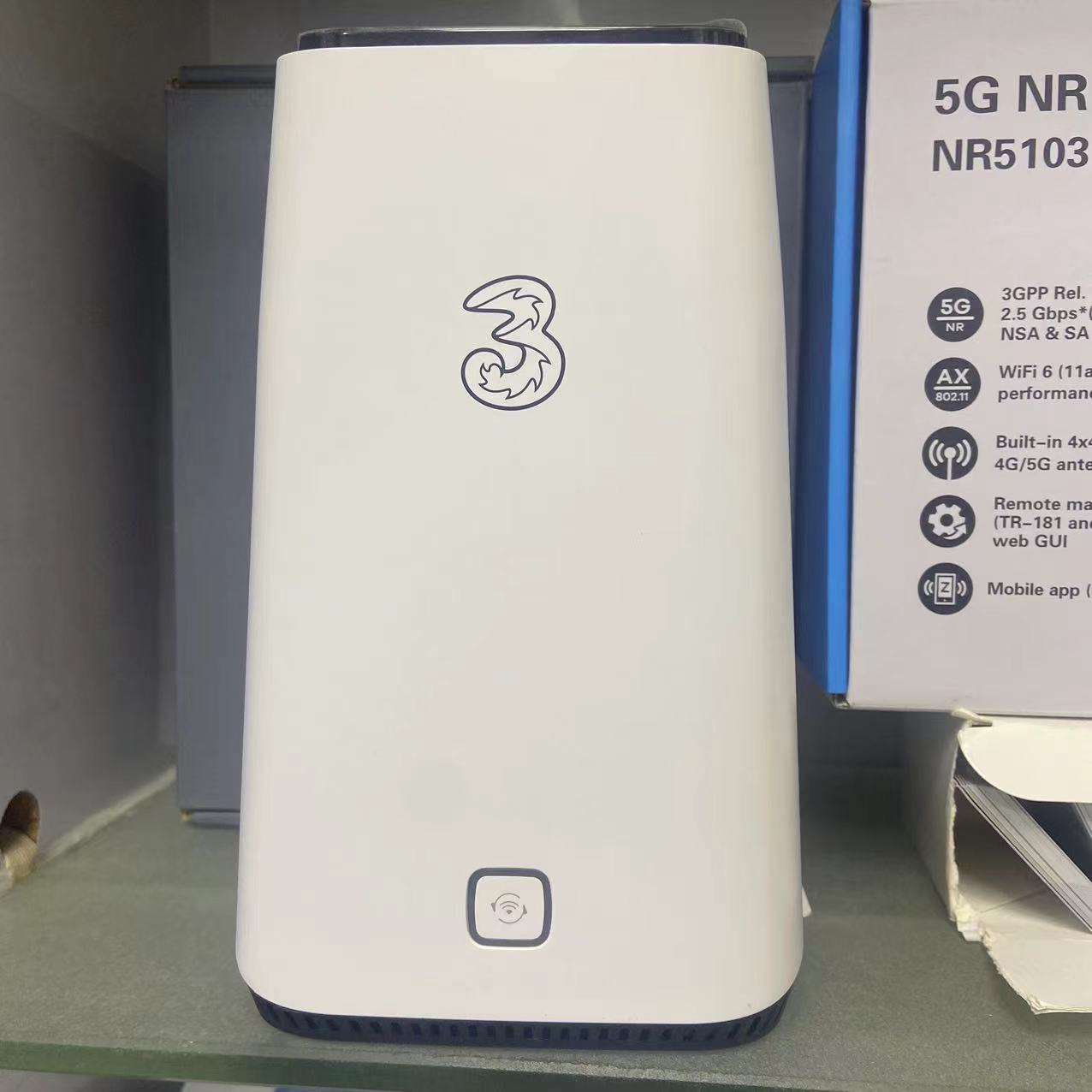

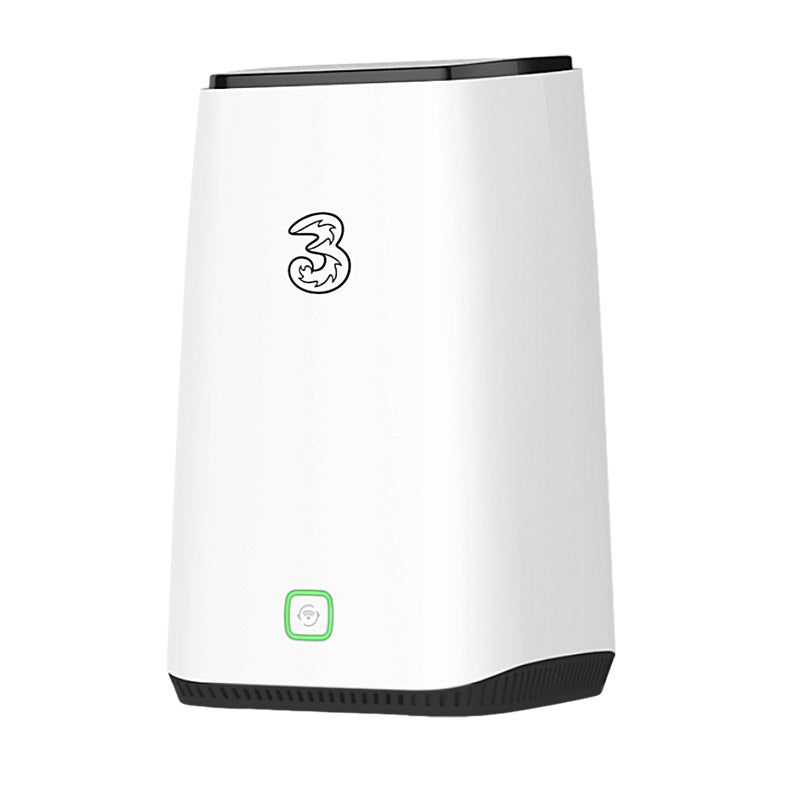

• NR5103E (3 Logo)
• RJ45 Ethernet Cable
• Chinese Plug + EU/UK Power Adapter

Specifications

Hardware specifications

5G NR interface

• 3GPP Release 15
• NSA and SA modes
• Sub-6 NR DL 2xCA (TDD/FDD)
• 5G Bands: n1.n3.n5.n7.n8.n20.n28.n38.n40.n41.n77.n78
• DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78

• 5G SA: DL 4.67 Gbps; UL 2.5 Gbps
• 5G NSA: DL 3.74 Gbps; UL 1.46 Gbps
• DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

4G LTE interface

• 3GPP UE Category 19
• 4G Bands: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40 /B41/B42
• DL 4×4 MIMO: LTE-FDD: B1/B3/B7 &  LTE-TDD: B38/B40/B41/B42
• Max. DL 1.6 Gbps/UL 200 Mbps
• DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM
• UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM

WiFi air interface

• IEEE 802.11 b/g/n/a/ac/ax
• Link rates up to 1.2 Gbps* for 2.4 GHz
• Link rates up to 2.4 Gbps* for 5 GHz
• Up to 64 devices

5G NR/4G LTE antennas

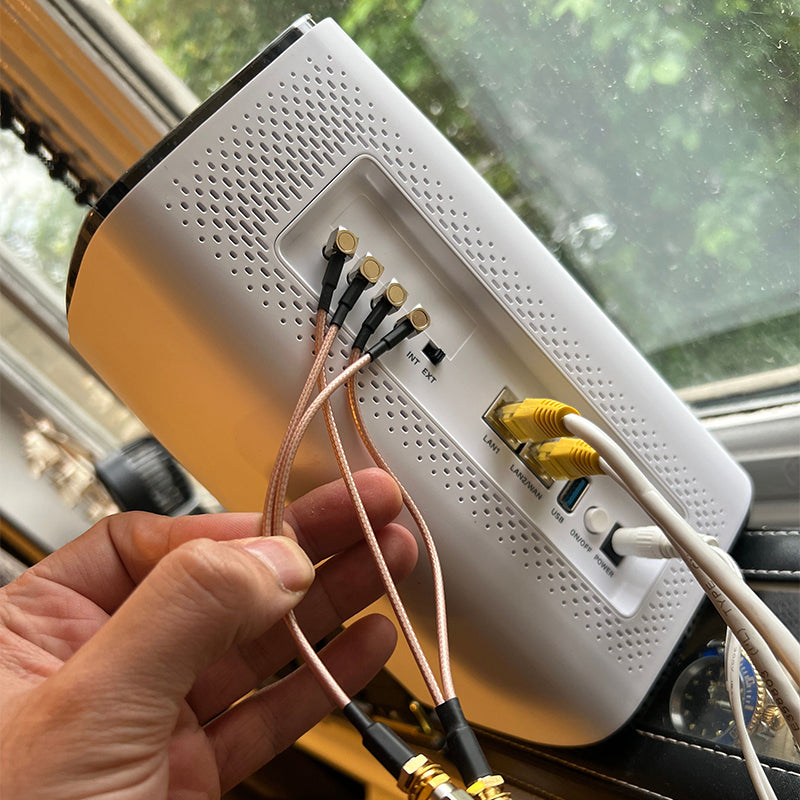

• Four TS9 connectors for external antennas
• Four embedded omni-directional antennas
• Up to 5 dBi peak gain

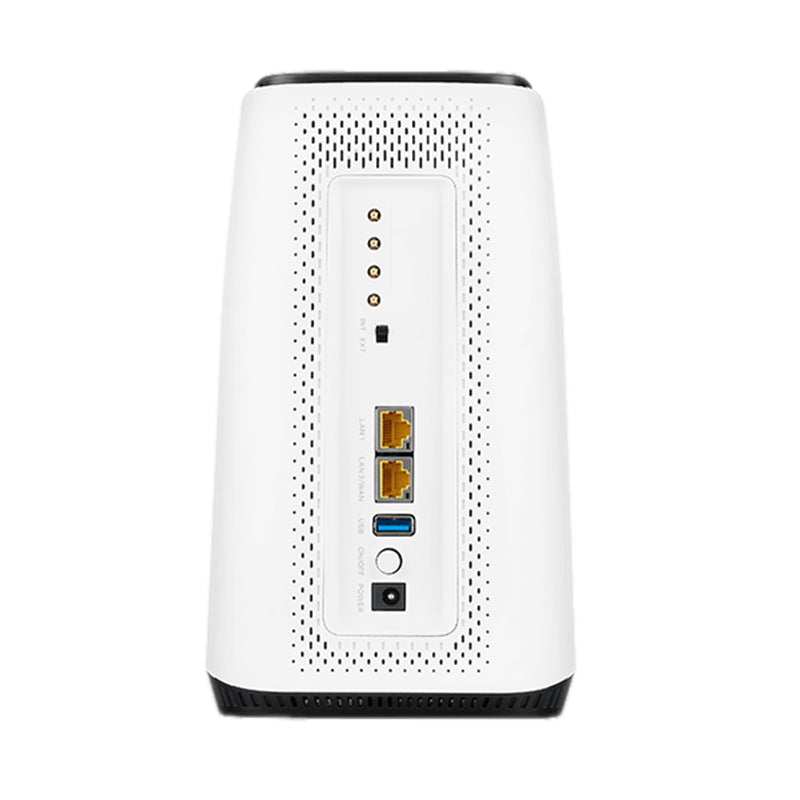

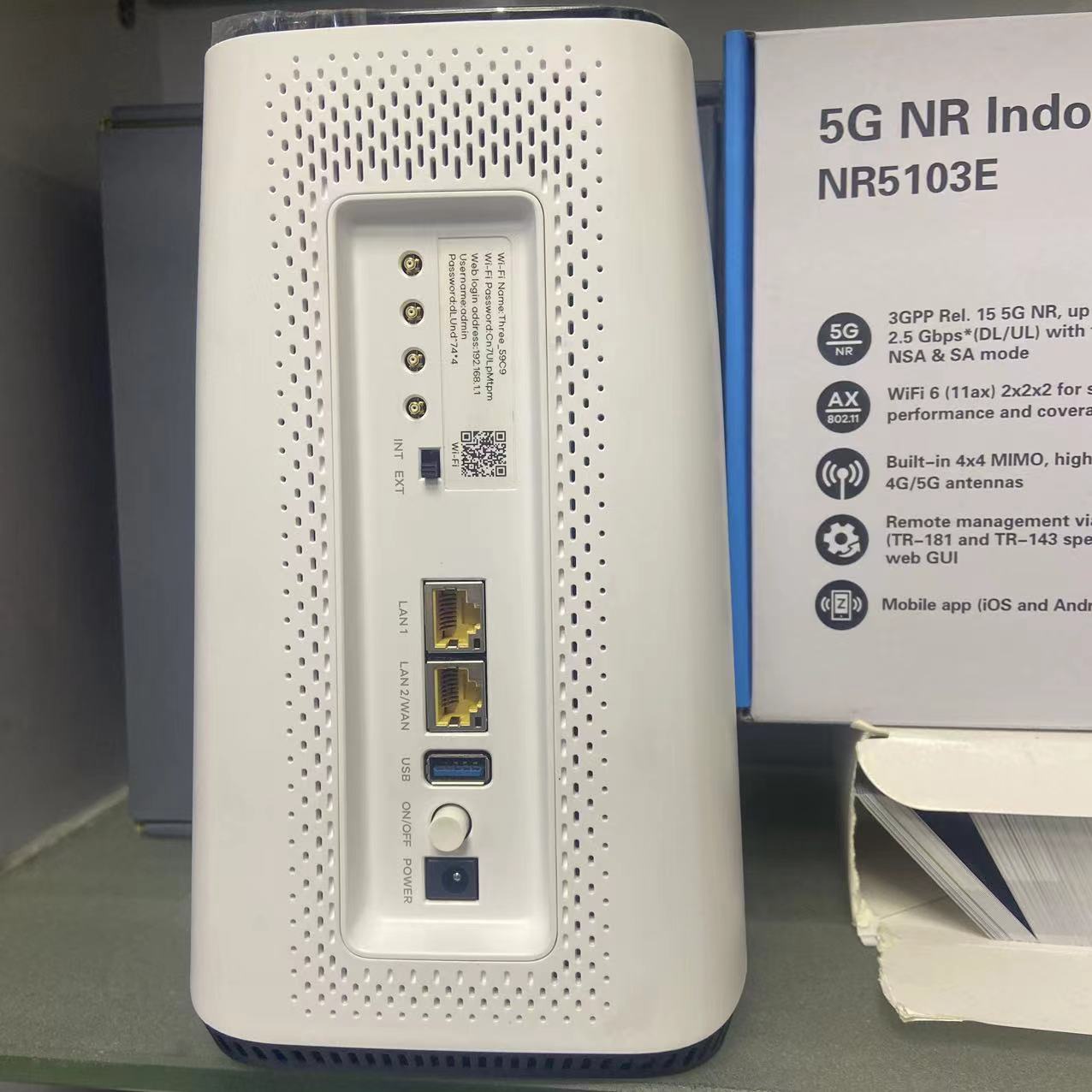

Hardware interface

• Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 for Ethernet WAN port
• Four external antenna connectors (TS9 type)
• One 3FF/Micro SIM card slot
• One power on/off button
• One WPS/WiFi on/off button
• One reset button
• One Int/Ext antenna switch
• One USB 3.0 host port for file sharing

LED indicators:

• Power indication
• SMS status
• Signal strength
• Internet connection status
• Radio access technology status
• WiFi AP status
• WPS status

Physical specifications

• Size: 132.5 x 134 x 230 mm
• Item weight: 1006 g
• Packing weight: Almost 2000 g

Environmental specifications

• Temperature: 0°C to 40°C
• Humidity: 10% to 90% RH
• Temperature: -30°C to 70°C
• Humidity: 5% to 95%

System specifications

IP networking

• Supports IPv4/IPv6 dual stack (NDP IPv6)
• DHCP server
• Virtual Private Network (VPN) pass-through
• Supports NAT/NAPT
• Supports DMZ
• Multiple APNs
• Supports port forwarding
• Supports ALG

Routing

• Supports bridge and router modes
• Supports dynamic DNS for first APN
• Supports remote management under bridge mode
• Static/dynamic routing settings for RIP v1/v2

IP firewall

• DoS attack detection
• Supports SPI
• Application-level firewall (LAN to WAN such as HTTP, Telnet, Ping)
• Filters LAN MAC address
• Filters LAN IP address
• Filters URLs

Management

• Supports local/remote device management and firmware upgrade
• SMS management
• PIN/PUK management
• APN management
• Operating frequency band selection
• CLI/SSH (local and remote SSH access)

WLAN feature

• Auto channel selection
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• WiFi-enabled devices: up to 64
• Security: none, WPA2-Personal, WPA+WPA2, WPA2+WPA3, WPA3
• MAC address filtering with 64 address supported
• Multiple SSIDs/hide SSIDs
• WLAN scheduling

Lightning-fast internet connectivity

The Zyxel NR5103E has 5G NR DL speeds of up to 4.7 Gbps and 4G LTE DL speeds of up to 1.6 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. With the high-speed 5G NR service you are able to fulfill the worldwide market requirements of mobile broadband access services.

Wi-Fi 6 (11ax) technology for superior performance and coverage

Compliant with the latest Wi-Fi 6 (802.11ax) standard, the Zyxel NR5103E offers speeds of up to 3.6 Gbps with 2x2 UL/DL MU-MIMO. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the NR5103E to deliver premium speed for multi-streaming data access and optimal Wi-Fi experience without dead zones.

Strengthen your competitive edge with Fixed Wireless Access (FWA)

Deploying NR5103E as part of FWA allows you to extend your 5G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fiber-grade connection.
