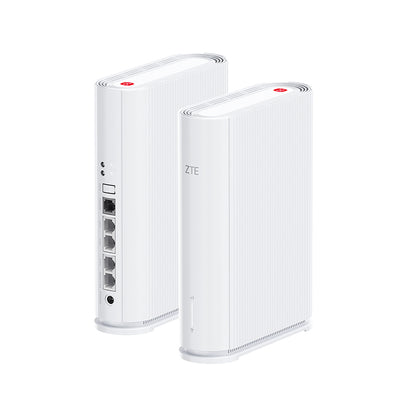

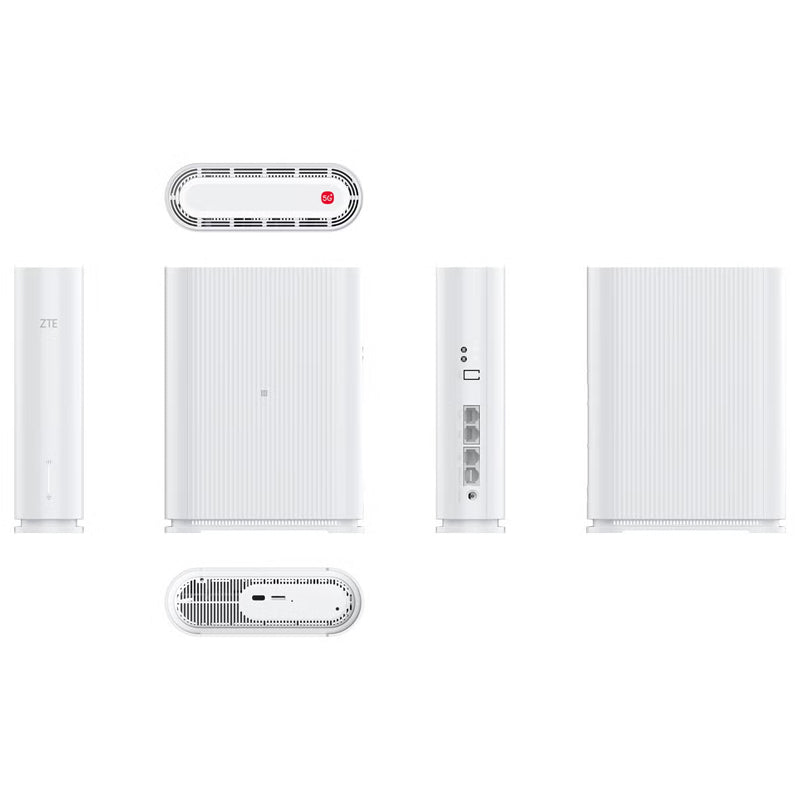

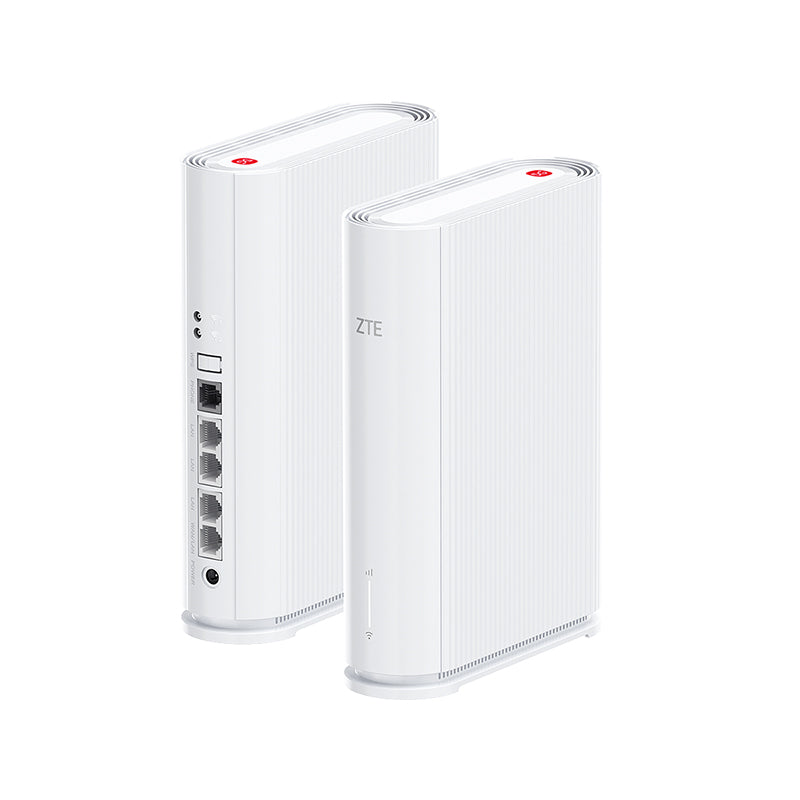

ZTE 5G CPE G5TS Dual Band Wi-Fi 6 Wireless Router 4GE Ports

ZTE G5TS 5G CPE

• ZTE High-performance 5G Chipset
• Wi-Fi 6, Dual Band 2MIMO
• 4 GE Ports for Multiple Wired Connections
• Up to 64 Wi-Fi Users

3GPP Release 16 & NR-CA Technology

Embrace 5G standards with 3GPP R16 and NR-CA (New Radio Carrier Aggregation), dynamically combining multiple carriers for high - speed network. Perfect for HD streaming, remote work, and smart home applications.

11 Omnidirectional Antennas for 360° Coverage

Equipped with 11 high-gain antennas to eliminate dead zones and ensure stable, seamless connectivity across all frequencies, provide rock - solid multi - device connectivity, and thereby unlock the full potential of 5G/Wi-Fi 6 performance.

26dBm Transmit Power for Superior Signal Penetration

Delivers robust signal strength (up to 26dBm*) to overcome walls and obstacles, optimized for n41/n78 frequency bands.

Wi-Fi 6 for 64 Connected Devices

Experience ultra-low latency and blazing-fast speeds with Wi-Fi 6, supporting up to 64 devices simultaneously for lag-free gaming, streaming, and IoT connectivity.

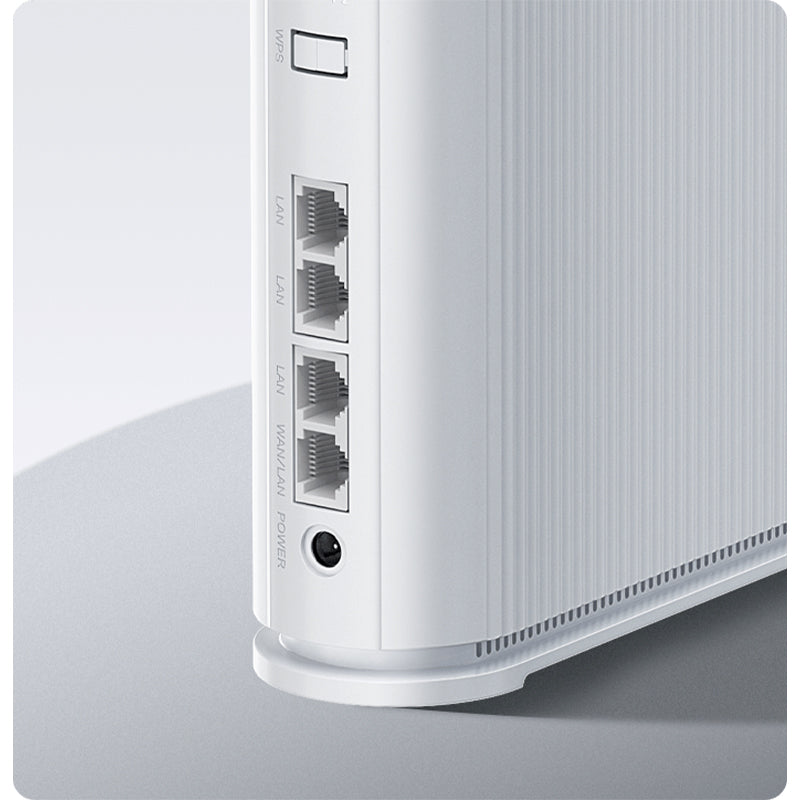

4 Gigabit Ethernet Ports for Wired Stability

4 Gigabit LAN ports offering wired connections that shield against external interference, ideal for high-bandwidth tasks like 4K video conferencing and data-intensive workflows.

5G + Wired Dual-Network Backup

Seamlessly switch between 5G and wired broadband to minimize downtime, prioritizing security and stability for mission-critical applications.

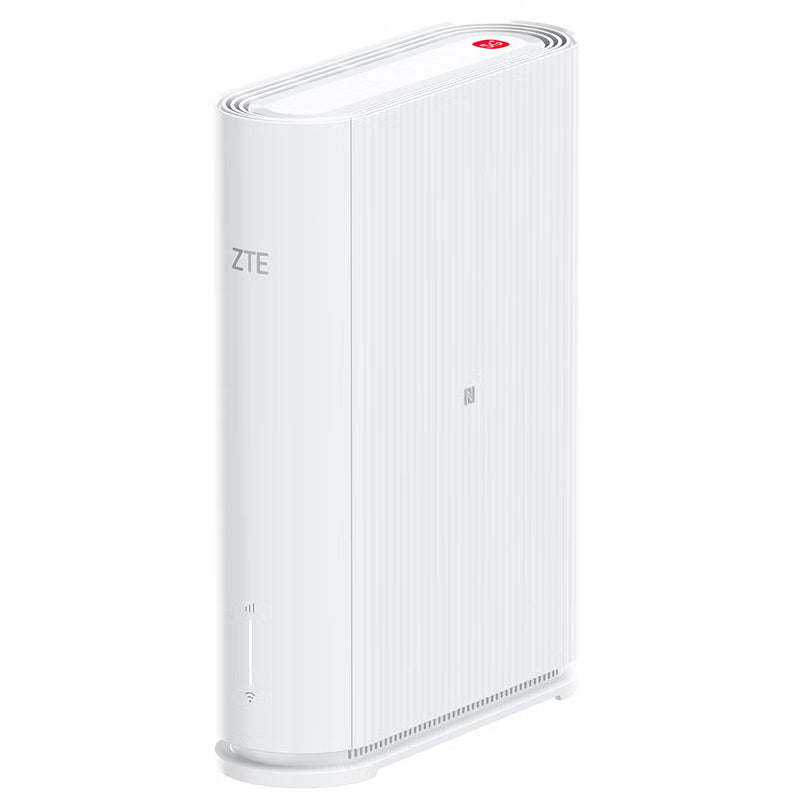

NFC Tap-to-Connect

When connecting to a mobile Wi-Fi device, NFC skips the cumbersome manual device search and password input of traditional Bluetooth. Just hold the phone near the device to connect, saving time and steps. It's also compatible with Android phones, tablets, etc.

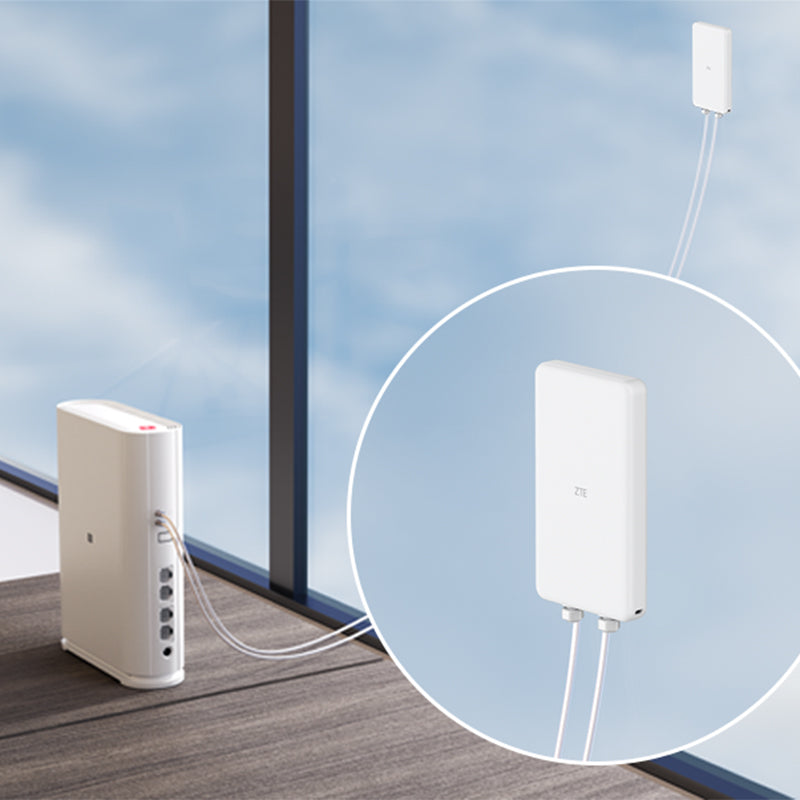

Expandable Antenna Support

It supports the extension of signal coverage through external antennas, enabling signal reception in areas where there was previously none and optimizing the signal coverage layout to provide you with a flexible, precise, and customized internet browsing experience. The external antenna must comply with the TS-9 interface standard and support the B38/B40/B41, n41/n78 frequency bands.

ZTE 5G CPE G5TS Technical Parameters

Cellular network

5G Standard

• 3GPP Release16

Network

• 5G NR SA&NSA
• LTE FDD/TDD
• UMTS

Modulation:

Sub6G

• DL: 256QAM
• UL: 256QAM


LTE

• DL:64QAM
• UL: 16QAM

Bandwidth

• 40MHz, 60MHz, 80MHz, 100MHz, 50MHz, 90MHz

Transmitter power

• 26dBm for N78 & 23dBm for other bands

Bands

• 5G R16: n1/n3/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78
• 4G FDD-LTE:B1/B3/B7/B8/B20/B28
• 4G TDD-LTE:B32/B38/B40/B41/B42/B43

MIMO for wireless

• 5G Sub6: n1/3/7/38/40/41/77/78 supports 4MIMO
• LTE: B1/3/7/38/40/41/42/43 supports 4MIMO

Default antenna

• Internal antenna for all bands

Antenna Gain

• 700~960MHz : 1~1.5dbi
• 1450~2700MHz : 2~2.5dbi
• 3300~4200MHz : 4dbi

Bands supported by External Antenna Ports

• LTE B42/43, B7/38/40/41
• SA n7/38/40/41
• SA/ NSA  n77/78

Theoretical Max Rate

• 5G NSA LTE FDD + Sub6G: DL 1.73 Gb/s & UL 130Mb/s
• 5G SA LTE TDD: DL 2.86 Gb/s & UL 160Mb/s
• LTE FDD(DL Category 6, UL Category 6): DL 300Mb/s & UL 50Mbps
• LTE TDD(DL Category 6, UL Category 6): DL 220Mb/s & UL 10+Mbps
• WCDMA CS: UL 64kbps/DL 64kbps
• WCDMA PS: UL 384kbps/DL 384kbps
• HSDPA: DL 14.4Mb/s(Category 10), DL 21Mb/s(Category 14)
• HSUPA: UL 5.76Mb/s(Category 6)

WiFi Network

Standard

• 5GHz: Wi-Fi6, 802.11a/n/ac/ax;
• 2.4GHz: Wi-Fi4, 802.11b/g/n;

Band & MIMO

• 5GHz 2MIMO
• 2.4GHz 2MIMO

Speed

• 2.4GHz 2MIMO 300Mbps
• 5GHz 2MIMO 1200Mbps
• Max. theoretical rate: 1500Mbps

Bandwidth

• 2.4G:  20M/40M
• 5G: 20M/40M/80M

Default antenna

• Internal antenna for all bands

Antenna Gain

• 2.4GHz: 1.5dbi
• 5GHz: 2.5dbi

Access number

• 5GHz up to 32
• 2.4GHz up to 32

Interface

Interface

• RJ45 interface: 4 x GE: 10Base-T /100Base-T /1000Base-T
• RJ11 interface: 1
• USB interface: 1 Type-C
• External Antenna Ports: 2 x TS-9
• USIM/SIM slot: 4FF, SIM card interface for 3V/1.8V SIM card

Button

• Power button
• Reset button
• WPS button

LED

• Power: WiFi: White
• Network: White/Blue/Red
• Singal Strength: White
• RJ45 port's LED

Others

• Maximum power consumption: 15W
• Ingress Protection: IP30
• Operating temperature: 0-40℃
• Storage temperature: -40~70℃
• Humidity: 5% to 95% (Non-condensing)
• Certification: CE, WEEE, ROHS, REACH, WiFi
• AC Adapter: OUTPUT: DC 12V/2A

Software Feature

Device Mode

• Automatically mode (wireless or wire auto switch)
• Daul WAN
• Hybird mode (wireless and wired are used at same time)
• Wireless mode
• Bridge mode
• Cable Broadband Mode

IP networking

• IPv4/IPv6 dual stack (NDP IPv6)
• DHCP server
• VPN pass-through(L2TP/PPTP/IPSec)
• VPN L2TP
• VPN PPTP
• VPN IPSec
• VPN GRE
• NAT/NAPT
• Sip ALG
• Multiple APNs

Firewall

• Port Forwarding
• Port Filtering
• Port Mapping
• Domain Filtering
• Upnp
• DMZ
• Remote Access/Ping switch
• MAC address filtering

WiFi

• WiFi Switch
• Bandsteering
• Security mode: WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK
• WiFi Broadcast
• WiFi Isolation
• Auto channel selection
• WPS
• EasyMesh
• GuestSSID support
• WiFi Sleep Mode

Voice

• VoNR
• VoLTE
• CSFB
• VoIP

Device Managemnt

• Connected device Management
• SMS
• PIN/PUK management
• APN management
• Lock Frequency/Lock Cell
• TR069 with TR181 data model default
• Upgrade: FOTA/TR069
• ZTE Smartlife APP
• Multiple languages: Arabic, Chinese, Danish, English, Finnish, French, German, Italian, Norwegian, Portuguese, Portuguese (Brazil), Russian, Spanish, Spanish (Latin America), Swede
• Device can FOTA/TR069 on bridge mode

Special Feature

• Green Mode: user can set the device to save the power
• Preferred Position：Can help user to find a good position
• NFC：Andriod phone touch can access the Router WiFi
• Device Diagnosis will list all device running key status and give fix solution
• PC/Phone/PAD WebUI management self-adaptation
• OpenWrt
