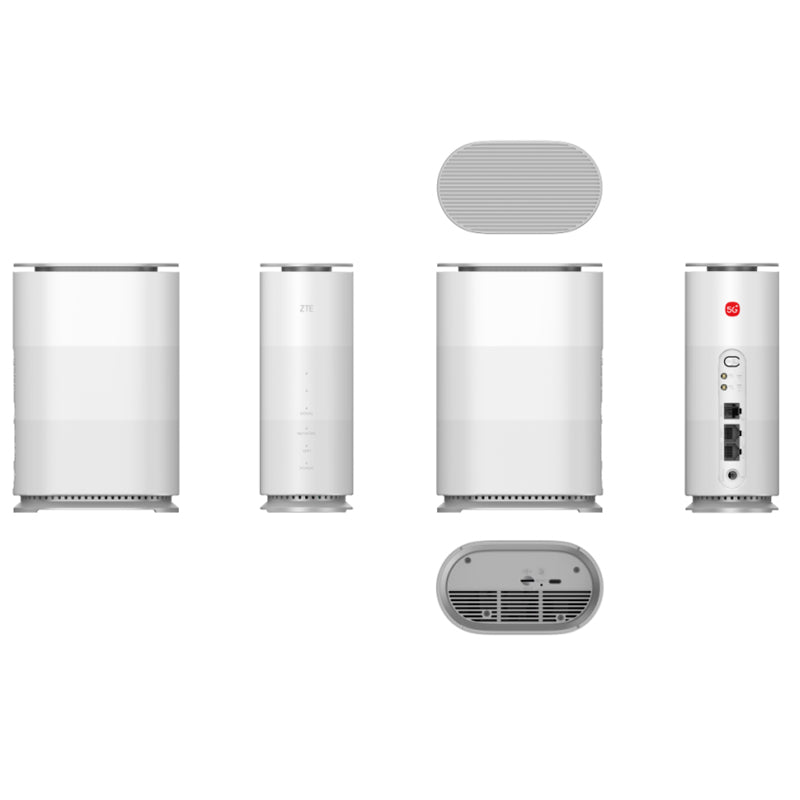

ZTE 5G CPE G5 Air MC8510D 2.5G Port WiFi 7 Router

ZTE G5 Air 5G CPE

5G+Wi-Fi 7: Connect Beyond Limits.

5G High-Speed Connection

5G NR CA | 3GPP R16 | 256QAM | 4x4 MIMO

The theoretical download speed can reach 4.29 Gbps

Enhanced 5G Signal Reception

Up to 10dBi High Gain Antennas and 2 TS-9 External Antenna Ports

Supports up to 128 Connected Devices

Equipped with Wi-Fi 7

Total Aggregate Speed of 3,570 Mbps (2.4 GHz:688 Mbps+5 GHz:2,882 Mbps)

Reliable Gigabit Wired & Voice Connectivity

2 5GE Port & GE Port & RJ11 Port

Product Status

New and unlocked global sim card

ZTE G5 Air 5G CPE MC8510D Technical Specifications

Cellular Network

3GPP Release

• LTE R15; NR R16

Network

• 5G NR SA&NSA , Support  5G NR CA
• LTE FDD/TDD
• UMTS

Modulation

• Sub6G DL: 256QAM / UL: 256QAM
• LTE DL: 256QAM / UL: 256QAM

Bandwidth

• Sub6G: 40MHz, 50MHz, 60MHz, 80MHz, 90MHz,100MHz

Frequency Bands

• 5G SA+NSA: n1/3/7/8/20/28/38/40/41/75/77/78
• 4G LTE: B1/3/7/8/20/28/32/38/40/41/42/43
• 3G UMTS: B1/2/5/8
• 2G Bands: Not Support

MIMO for wireless

• 5G+4G support 4MIMO

Default antenna

• Internal antenna for all bands

Antenna Gain

• 600-960MHz : 1-1.5dBi
• 1400-2700MHz : 2-2.5dBi
• 3300-5000MHz : 4dBi/10dBi

Bands supported by External Antenna Ports

• B38/40/41/42/43
• N38/40/41/77/78

Theoretical Max Rate

• 5G ENDC LTE FDD + Sub6G DL 3.86 Gb/s, UL 280 Mb/s
• 5G SA DL: 4.29 Gb/s, UL: 320 Mb/s
• 4G LTE FDD (DL CAT19, UL CAT18) DL 1.6Gb/s, UL 200Mbp.
• 4G LTE TDD DL 1.12Gb/s, UL 40Mb/s
• 3G WCDMA CS: UL 64kbps/DL 64kbps
• 3G WCDMA PS: UL 384kbps/DL 384kbps

Wi-Fi Network

Standard

• WiFi 7, 802.11b/g/n/a/ac/ax/be

Band & MIMO

• 2*2 MIMO for both 2.4G&5G

Speed

• 2.4GHz 2MIMO 688Mbps
• 5GHz 2MIMO 2882Mbps
• The totoal speed can up to 3570 Mbps

Bandwidth

• 2.4G:  20M/40M
• 5G:  20M/40M/80M/160M

Modulation

• 11be up to 4096QAM

Default antenna

• Internal antenna for all bands

Antenna Gain

• 2.4GHz: 1.5 dbi
• 5GHz: 2.5 dbi

Access number: up to 128

Interface

• RJ45 interface: 1 x GE & 1 x 2.5GE
• RJ11 interface: 1
• USB interface: 1 TypeC USB3.1
• External Antenna Ports: 2 * TS-9
• USIM/SIM slot: 4FF 3V/1.8V SIM card

Environment Specifications

• Ingress Protection: IP30
• Operating temperature: 0-40℃
• Storage temperature: -40 to 70° C
• Humidity: 5%~95% (Non-condensing)

Software Feature

Device Mode

• Automatically mode (wireless or wire auto switch)
• Daul WAN
• Hybird mode (wireless and wired are used at same time)
• Wireless mode
• Bridge mode
• Cable Broadband Mode

IP networking

• IPv4/IPv6 dual stack (NDP IPv6)
• DHCP server
• VPN pass-through(L2TP/PPTP/IPSec)
• VPN L2TP
• VPN PPTP
• VPN IPSec
• VPN GRE
• NAT/NAPT
• Sip ALG
• Multiple APNs

Firewall

• Port Forwarding
• Port Filtering
• Port Mapping
• Domain Filtering
• Upnp
• DMZ
• Remote Access/Ping switch
• MAC address filtering

WiFi

• WiFi Switch
• Bandsteering
• Security mode: WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-PSK,WPA2-PSK
• WiFi Broadcast
• WiFi Isolation
• Auto channel selection
• WPS
• EasyMesh
• GuestSSID support
• WiFi Sleep Mode

Voice

• VoNR
• VoLTE
• CSFB
• VoIP


Device Managemnt

• Connected device Management
• SMS
• PIN/PUK management
• APN management
• Lock Frequency/Lock Cell
• TR069 with TR181 data model default
• Upgrade: FOTA/TR069
• ZTE Smartlife APP
• Multiple languages: Arabic, Chinese, Danish, English, Finnish, French, German, Italian, Norwegian, Portuguese, Portuguese (Brazil), Russian, Spanish, Spanish (Latin America), Swede
• Device can FOTA/TR069/remotely access on bridge mode

Special Feature

• Green Mode: user can set the device to save the power
• Preferred Position：Can help user to find a good position
• NFC: Andriod phone touch can access the Router WiFi
• Device Diagnosis will list all device running key status and give fix solution
• PC/Phone/PAD WebUI management self-adaptation
• OpenWrt
