OPPO WiFi 6 AX5400 Wireless Router RSD07 2.5G LAN Port

Introduction

● The OPPO Wi-Fi 6 Router AX5400 (RSD07) promises blazing-fast speeds and seamless connectivity for modern homes. With its stylish design and advanced features, it’s positioned as a premium option in the crowded Wi-Fi 6 market.

● OPPO Wi-Fi 6 router AX5400 supports Easy Mesh, which can realize fast and convenient Mesh networking between cross-platform and cross-brand routers, and expand Wi-Fi network coverage. Self-developed technology is faster and more stable Equipped with 4 high-gain antennas and 6 independent signal amplifiers, combined with OPPO’s self-developed anti-jamming algorithm, it can make the Wi-Fi signal transmission distance longer and more stable.

Advantages

• Equipped with Qualcomm Technologies Chipset, The Performance is Powerful.

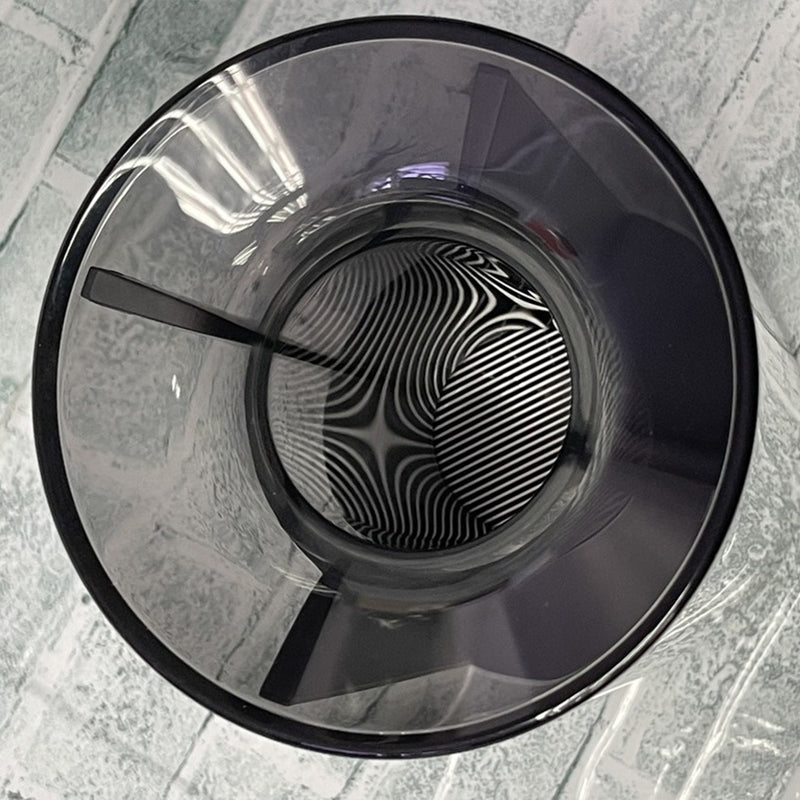

• The Chimney-shaped External Structural Heat Dissipation Design helps Natural Wind to Take Away Heat.
• It can support up to 256 Devices to Connect Simultaneously.
• 4 High-strength Antennas and 6 Independent Signal Amplifiers.
• Self-developed Anti-interference Algorithm.
• Supports EasyMesh.

Key Features

The AX5400 boasts a compelling list of features, including its sleek, modern design. The 360° biomimetic curved surface is undeniably eye-catching, fitting seamlessly into any modern home décor. Beyond aesthetics, the router is packed with practical features such as:

• Wi-Fi 6 (802.11ax) Technology: Delivers faster speeds and lower latency compared to older Wi-Fi standards.
• Dual-Band Support (2.4GHz & 5GHz): Provides optimal performance for various devices.
• 4 High-Gain Antennas: Ensures strong and reliable Wi-Fi coverage throughout your home.
• 2.5G Adaptive Interface & 2 Gigabit Ports: Supports high-speed wired connections.
• Easy Mesh Support: Allows for seamless expansion of your network with additional OPPO mesh devices.
• Supports up to 256 Connected Devices: Ideal for large households with numerous smart home devices.
• Self-developed Anti-interference Algorithm: Helps maintain a stable and consistent connection.

AX5400 Wi Fi 6 Specifications

OPPO Wi-Fi 6 The router AX5400 belongs to the wireless dual band specification, corresponding to the Wi Fi 6 standard, and provides services in both 2.4GHz and 5GHz spectra. It corresponds to (Tx: 4, Tx: 4) MU-MIMO mode at 5GHz and supports a maximum wireless connection speed of 4804Mbps, while 2.4GHz corresponds to (Tx: 2, Tx: 2) and 574Mbps wireless speeds. At the same time, the product also supports the Easy Mesh standard and can be paired with OPPO or other brands of wireless routers corresponding to Easy Mesh to establish a Mesh Wi Fi network and expand wireless coverage.

Electronic Home Artwork

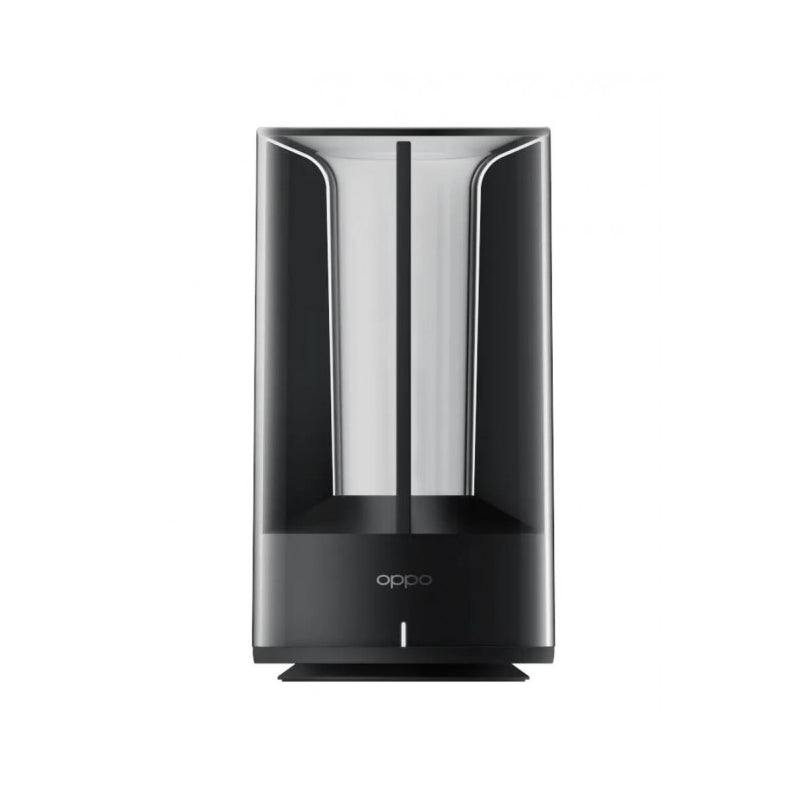

OPPO Wi-Fi 6 The appearance of the router AX5400 is also quite attractive. The design team drew inspiration from the minimalist style of modern homes and designed the router as a symmetrical cylinder, cleverly incorporating elements such as antennas, interfaces, and function buttons into the design, making it a modern "electronic home" artwork that can perfectly blend into home or office environments.

2.5Gbps Interface

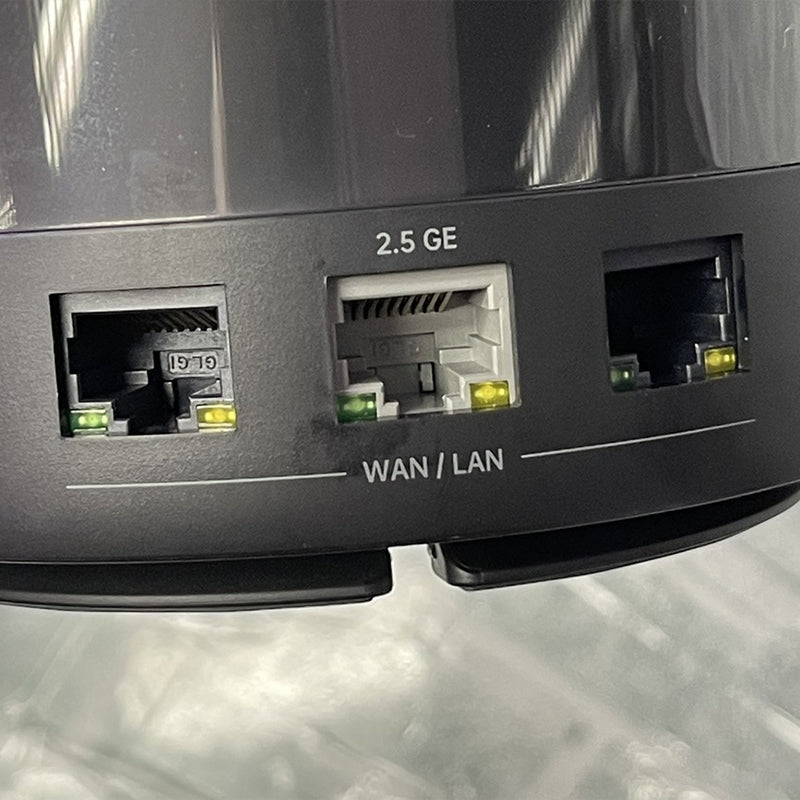

OPPO Wi-Fi 6 Another selling point of the AX5400 router is that it provides a set of 2.5Gbps WAN interfaces at the back of the body, making it convenient for users to connect to 2.5Gbps high-speed broadband services. Although limited by cost, the two sets of LAN in the product only have a 1Gbps speed specification, so the wired part can only provide a maximum speed of 1Gbps. However, with Wi Fi 6 wireless connection, it can also fully utilize the high bandwidth provided by 2.5Gbps broadband.

Easy Setup

The OPPO Wi Fi 6 router AX5400 provides a dedicated management application called "OPPO Connect". Users can set up an open SSID that can be connected to the router for the first time, configure it on a webpage, and then use the "OPPO Connect" application for management. The OPPO Connect application can also configure features such as parental control and firewall settings.

Wi Fi 6 Connection Test

In the test, the OPPO Wi Fi 6 AX5400 router was connected to a 2.5Gbps fiber optic indoor broadband, and a Xiaomi 11i smartphone with Wi Fi 6's "Tx: 2, Rx: 2" and 160MHz bandwidth was connected to the OPPO Wi Fi 6 router AX5400 at a full speed of 2402Mbps, and the "Speedtest by Ookla" test was conducted. During close range testing, download and upload speeds of 1425Mbps and 559Mbps were recorded, showing impressive performance.

OPPO RSD07 AX5400 WiFi 6 Router Data:

● Model Number: RSD07

● Chipset: QC IPQ5018 + QCN9024

● WiFi features:

• 802.11ax WiFi 6 AX5400
• MIMO: 2.4GHz 2X2 MIMO 574Mbps, 5GHz 4x4 MIMO 4804Mbps
• 4K QAM
• 160MHz bandwidth
• WiFi Mesh

● Interfaces:

• 1 x 2.5GE WAN/LAN port
• 2 x GE WAN/LAN ports

● Antenna Type: Internal

● Security: WPA, WPA2, WAP3, WPS

● Other functions: Easy Mesh, Parental control, firewall settings

● Dimension: 115 * 115 * 210mm

● Weight: 750g

● Package contents:

• 1 x OPPO WiFi Router AX5400
• 1 x Ethernet cable
• 1 x Power adapter
• 1 x User manual
