✔ Fiberhome LG6121D is an outdoor 5G CPE for home. Downlink supports 2.5GE LAN to provide home users with over gigabit network access.
Product Status:
- 100% New
- Chinese version but support English
- IMEI changed available
- Unlocked global sim card and network
Product Descriptions
✔ FiberHome 5G CPE Outdoor Edition.
✔ Processor: Quad-cores MTK T750.
✔ IP67 Waterproof and Dustproof | 5G/4G Full Network | 2.5G Ethernet Port.
✔ Dual mode 5G/4G full network connectivity: Covering mainstream frequency bands.
✔ IP67: Adapt to various harsh weather conditions.
✔ High gain cellular antenna: Stronger signal, 8 cellular antennas.
✔ 2.5G Ethernet port: High speed transmission.
✔ Dual mode 5G/4G full network, multiple devices share the network well.
✔ Covering mainstream frequency bands worldwide, card insertion allows for high-speed network access.
✔ Supports 5G/4G full network connectivity, NSA and SA, enabling full utilization of network resources even in areas with limited spectrum.
IP67 waterproof and dustproof rating
Meets IP67 waterproof and dustproof rating requirements, and is not afraid of dust and rainwater intrusion. Lightning protection level 6KV, cold and heat resistance -40 ℃ C-55 ℃. Suitable for network requirements in building office, outdoor monitoring, agriculture, forestry, animal husbandry, fishing, field operations and other scenarios.
High gain cellular antenna: enhancing 5G/4G signals
By adopting directional and omnidirectional hybrid antenna technology, 360° coverage is achieved, with a 20% increase in base station edge rate, a cellular antenna gain of up to 10dBi, and a 30% increase in base station coverage range.
Large capacity storage
1GB DDR4 memory and 1GB flash memory meet the requirements of high-speed caching and large-scale data processing.
2.5G Ethernet port
✔ High speed access ensures high-speed network.
✔ Equipped with 2.5G Ethernet port as standard, supporting speeds up to 2.5Gbps, efficient transmission ensures stable large data streams.
POE remote power supply
Connect POE adapter/POE switch for remote power supply, supporting a maximum transmission distance of 100 meters.(This product list includes a 10 meter Ethernet cable length and does not include POE switches.)

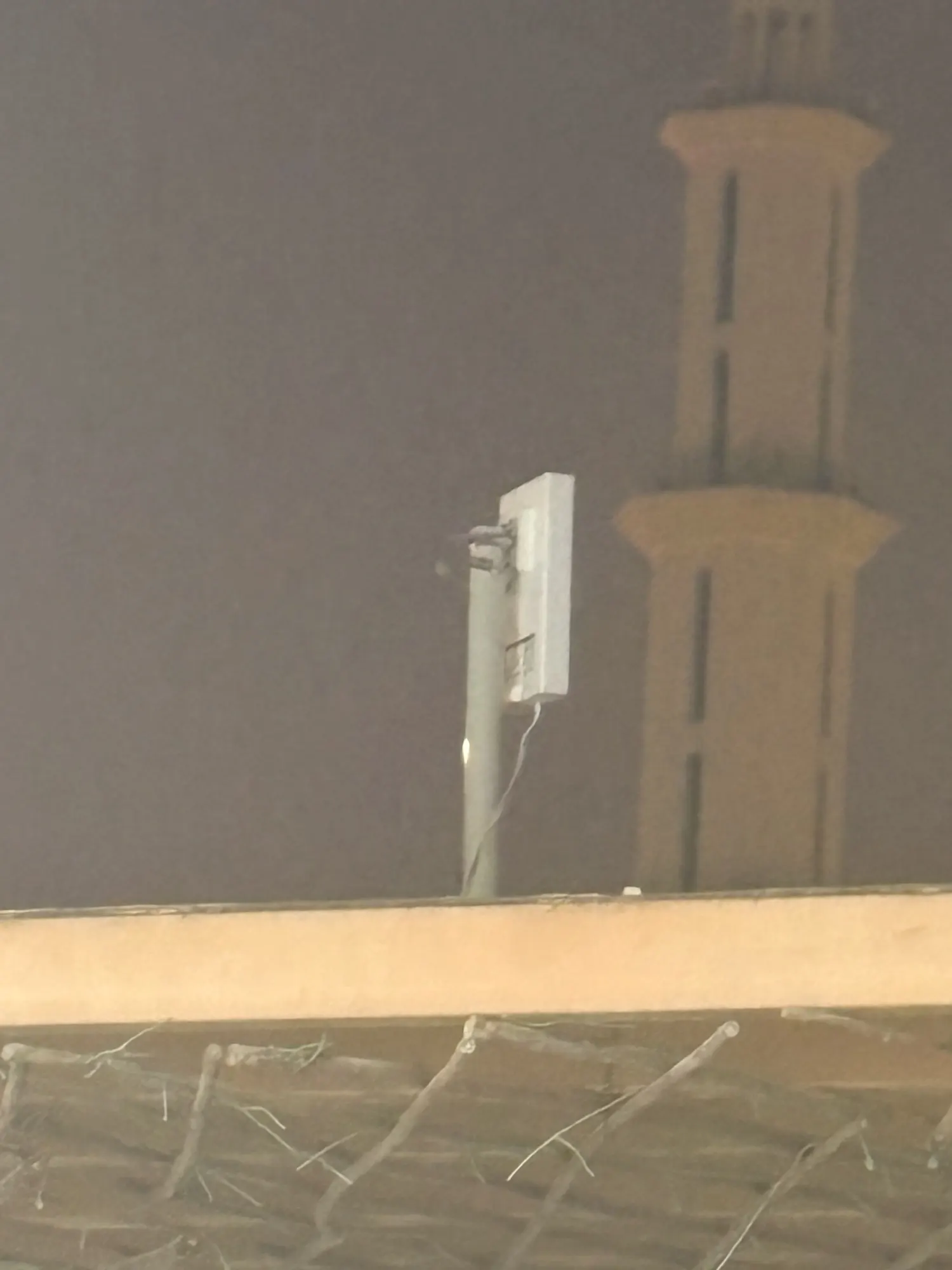

Easy installation, adaptable to various application environments
Supports wall mounted and pole mounted installation, suitable for a wide range of application environments.
Highly acclaimed lock frequency lock community function
Lock specific frequency bands or communities as needed, match the best settings for the usage environment, and customize your own network experience.
App remote management
✔ Support parental control, online behavior management, provide network blacklist and whitelist, and remote control through the app.
✔ Real time control of device operation status and repair of network issues in the background, without the need for manual restart or network configuration, making internet access easier.
Based information
✔ Brand: FiberHome
✔ Model: LG6121D
✔ Body material: ABS/PC
✔ Processor: Quad-cores MTK T750
✔ Bare machine size: 230 (length) * 141 (width) * 45.5 (height) mm
✔ Bare weight: approximately 760g
✔ Specification information
- Number of Ethernet ports: 1 2.5G LAN port (supporting reverse PoE power supply)
- Waterproof and dustproof rating: IP67
- Antenna type: 5G NR, 4G LTE
✔ Wireless frequency band:
- 5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
- 4G FDD : B1/B3/B5/B7/B8/B20/B28/B32
- 4G TDD : B38/B40/B41/B42/B43
✔ Functional features:
- 5G gigabit broadband, can be opened with a card, 2.5G network port, IPV6.
- Dual mode 5G, 4G full network, supporting NSA and SA.
- 1GB DDR4 memory, 1GB flash memory.
- High gain antenna enhances 5G signal.
- Efficient heat dissipation ensures stable operation.
- App remote control, internet protection, parental control.
- Frequency locking and cell locking function: Lock specific frequency bands or cells as needed.
- Applicable scenarios: Network requirements for building offices, outdoor monitoring, agriculture, forestry, animal husbandry, fishing, field operations, and other scenarios.
- Installation methods: wall mounted installation, pole mounted installation.
✔ Work environment
- Power adapter: 48V, 0.3A output
- Equipment power consumption:<14.4W
- Working temperature: -40 ° C~55 ° C (no solar radiation)
- Storage temperature: -40 ° C~70 ° C

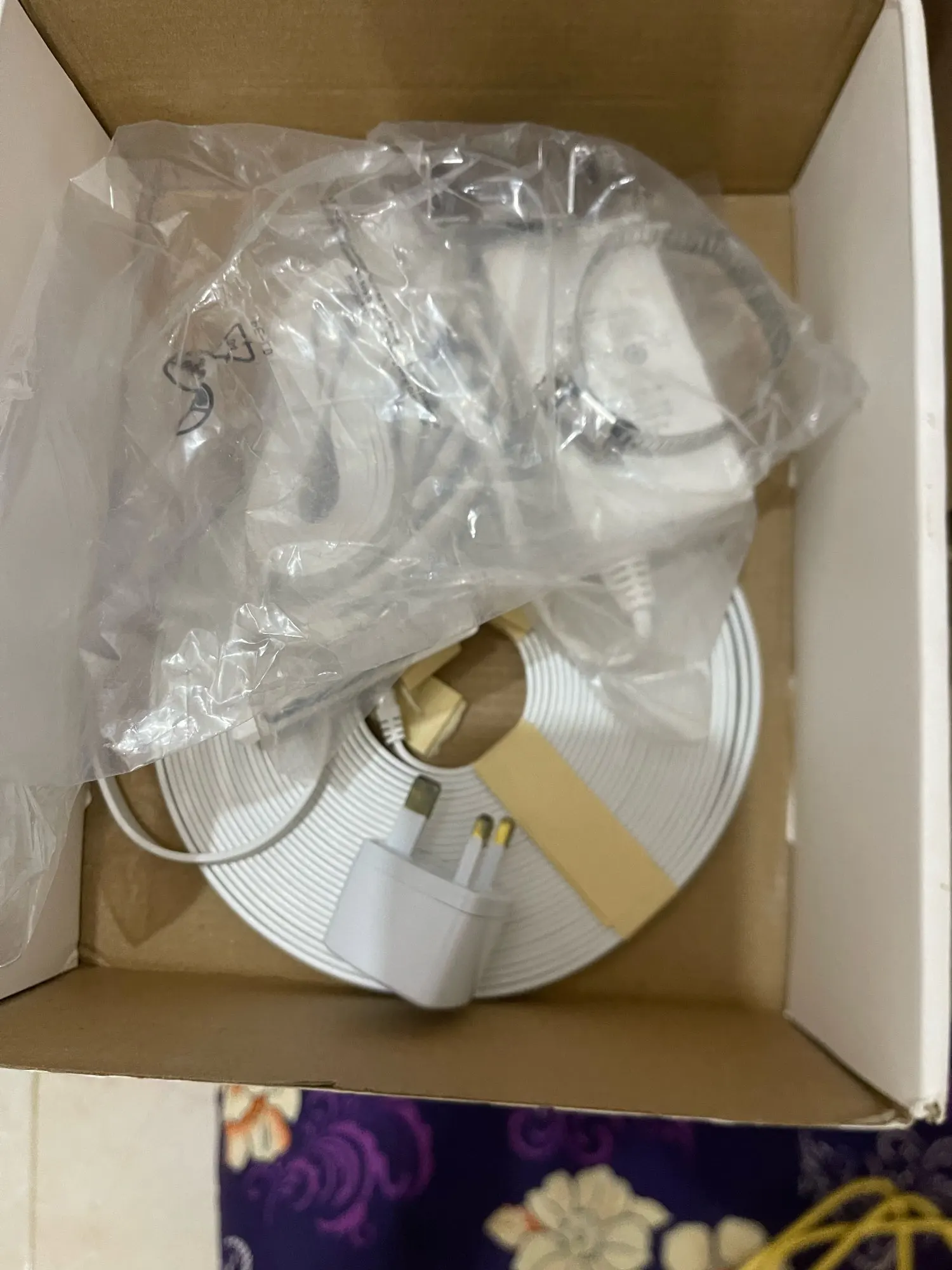

✔ Packing list:
- 5G wireless data terminal
- The power adapter
- Network cable 1.5 meters
- SIM card cover assembly (CAT5E Ethernet cable 2/SIM card cover) (length 10 meters)
- user 's manual
- Installation bracket
- Hug hoop
- M6 expansion screw component (sleeve x2/screw x2)
Technical Specifications
✔ Physical Parameters
|
Size
|
230*140*31mm
|
|
Weight
|
About 840g
|
|
Color
|
White
|
|
Operating Temperature
|
-40℃~55℃ without solar radiation
|
|
Power Consumption
|
< 14.4W
|
|
Power Supply
|
DC 48V, 0.3A
|
|
NNI Ports
|
5G NR/4G LTE
|
|
UNI Ports
|
1*2.5GE
|
|
Memory
|
1GB DDR , 1GB Flash
|
|
LED Indicators
|
Power, 5G NR, 4G LTE
|
|
Power Supply Mode
|
PoE
|
|
Level of Dustproof and Waterproof
|
IP67
|
RF Interface
✔ 5G NR
- Support 5G NR (3GPP Release 15) Sub-6G
- 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
- 5G DL 4*4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78 Peak
- Throughput: DL 3.8Gbps/UL 2.5Gbps
✔ 4G LTE
- LTE Category: Cat 19
- Support TDD-LTE/FDD-LTE
- 4G FDD Bands: B1/B3/B5/B7/B8/B20/B28/B32
- 4G TDD Bands: B38/B40/B41/B42/B43
- 4G DL 4*4 MIMO: B1/B3/B7/38/B40/B41/B42/B43
- Peak Throughput: DL 1.6Gbps/UL 316Mbps
✔ RF Extensions
- Support NR 2CC CA
- Support ENDC
- Support DSS
UNI Interface
✔ Ethernet Port
- 1*2.5GE for LAN port
- RJ45 interface
- 10M/100M/1000M/2500M auto-negotiation
- MDI/MDIX auto-sensing
- IEEE 802.3/802.3u
Wi-Fi Interface
- IEEE 802.11 b/g/n/ax 2.4G, used for management purpose only
- 1 Built-in 2.4G Wi-Fi antennas
SIM Slot
- 4FF SIM Card (Nano-SIM) format
- Support carrier SIM lock
- Support SIM card hot swap
Product Function
✔ Smart Interconnection
- Easy to access two network: 5G/4G LTE
- Support two 5G network mode: NSA/SA
- Easy to connect to ACS by TR069
- IPv4/IPv6 auto-negotiation
- Different LED clearly indicate network status
✔ Software Update
- Web UI update
- TR069 update
- FOTA update
✔ Device Management
✔ APN Setting
- Support default APN (customized)
- Set APN username/password/IP mode
✔ TR069
- Support HTTP/HTTPS format
- Upload/download the ACS specified files, Download CPE configuration files
- Configure & query parameters
- Remote upgrade
✔ Diagnosis
- Ping diagnosis
- Traceroute diagnosis
- Export operation diagnosis logs
✔ Security Services
- Firewall service: firewall switch, DMZ, UPnP, port forwarding, IP MAC binding
- ACL filter: Mac/IP address filter, Port/URL filter
✔ L3 Functions
- Support DHCP/Static IP config
- Support IPv4, IPv6, IPv4/IPv6 dual stack
- DNS RELAY and NAT
- ALG: L2TP/IPSEC/SIP FTP
- Support PPTP/L2TP VPN/IPSec VPN
Installation Method
- Wall Mounted
- Pole Mounted
- Window Mounted
