FiberHome 5G CPE Pro LG6851F WiFi 7 BE7200 Router Dual 2.5G Ports

Product Overview

✔ Fiberhome 5G CPE PRO LG6581F is a high-performance Customer Premise Equipment for 5G/LTE network access. It is mainly used in home or small office scenarios where no fiber coverage, providing various services such as family network coverage,  equipment monitoring, wireless routing etc.

✔ LG6581F supports 5G NR, 4G FDD-LTE, and 4G TDD-LTE mobile network standard. It is adapt to different network deployments.

✔ LG6581F supports 802.11a/b/g/n/ac/ax and the latest 802.11be ( Wi-Fi 7 ) protocol.

✔ LG6851F is an indoor 5G CPE for home. Downlink supports latest Wi-Fi 7 technology and maximum speed up to 7200Mbps. Besides using in home and small office, LG6851F is also suitable for camping, picnic, open cinema, and other outdoor scenarios. It supports ethernet cable uplink, so after the fiber is deployed, it can be used as a router to increase the availability of this device.

✔ Product Status:

• 100% New
• Chinese Version, Support English
• Unlocked global sim card
• Allow users to change IMEI

Fiberhome 5G WiFi 7 Router LG6851F Technical Specifications:

RF Interface

✔ 5G NR

• Support 5G NR (3GPP Release 16) Sub-6G
• 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78
• 5G DL 4*4 MIMO: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/78
• Peak throughput: DL 7.01Gbps/UL 2.5Gbps

✔ 4G LTE

• LTE Category: Cat 19
• Support TDD-LTE/FDD-LTE
• LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32
• LTE-TDD B38/B40/B41/B42/B43
• 4G DL 4*4 MIMO: B1/B3/b7B8/38/B40/B41/B42/B43
• Peak throughput: DL 1.6Gbps/UL 316Mbps

✔ RF Extensions

• Support  NR 4CC CA
• Support ENDC
• Support DSS

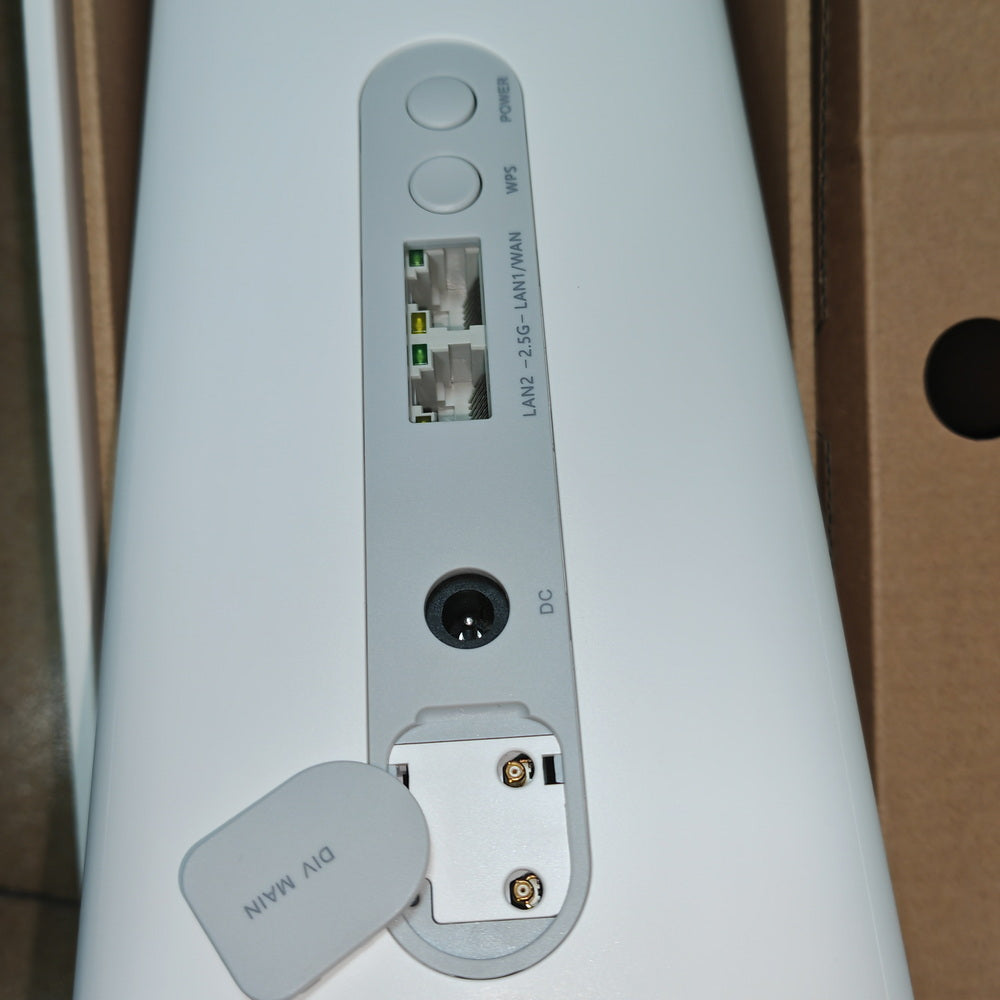

• Support Two 5G Antenna Extension Ports

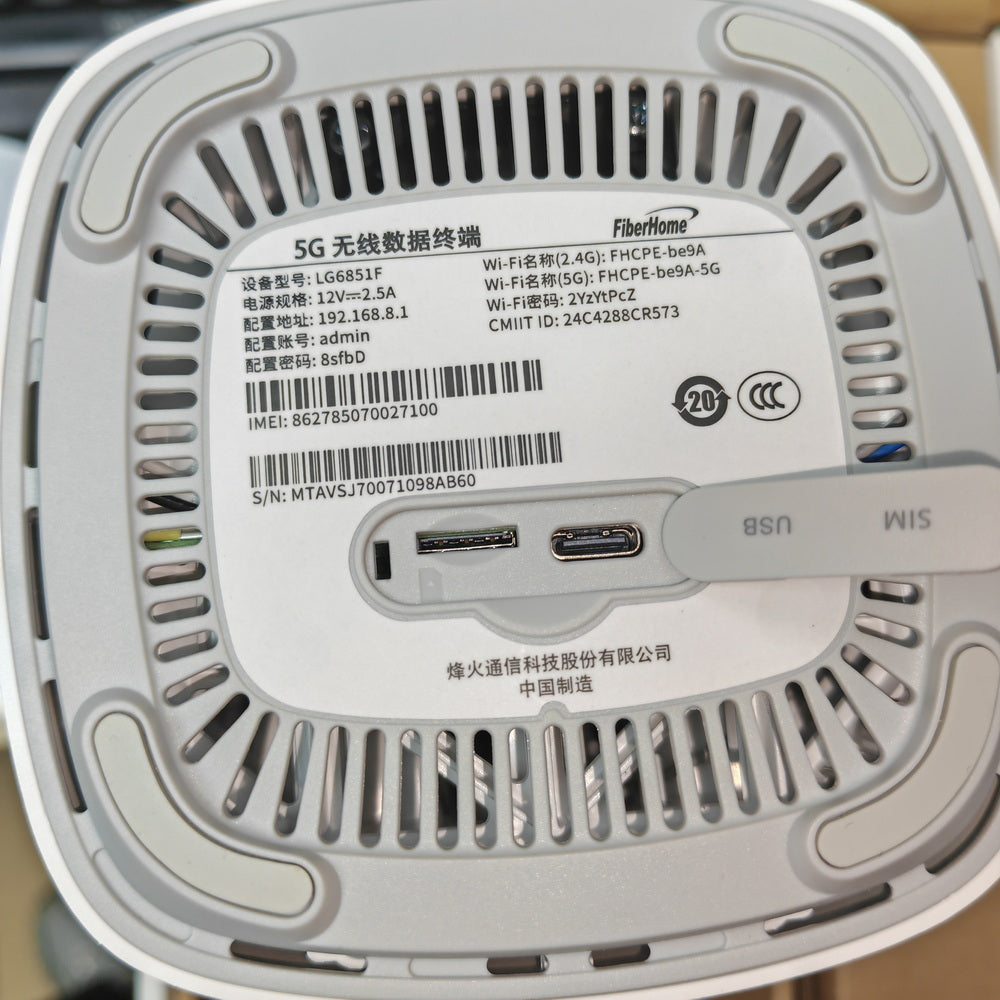

SIM Slot

✔ SIM Slot

• 4FF SIM card (Nano-SIM) format
• Support carrier SIM lock
• Support SIM card hot swap

✔ Lock

• Locking cells and frequency points

✔ Message

• Support sending and receiving short messages

UNI Interface

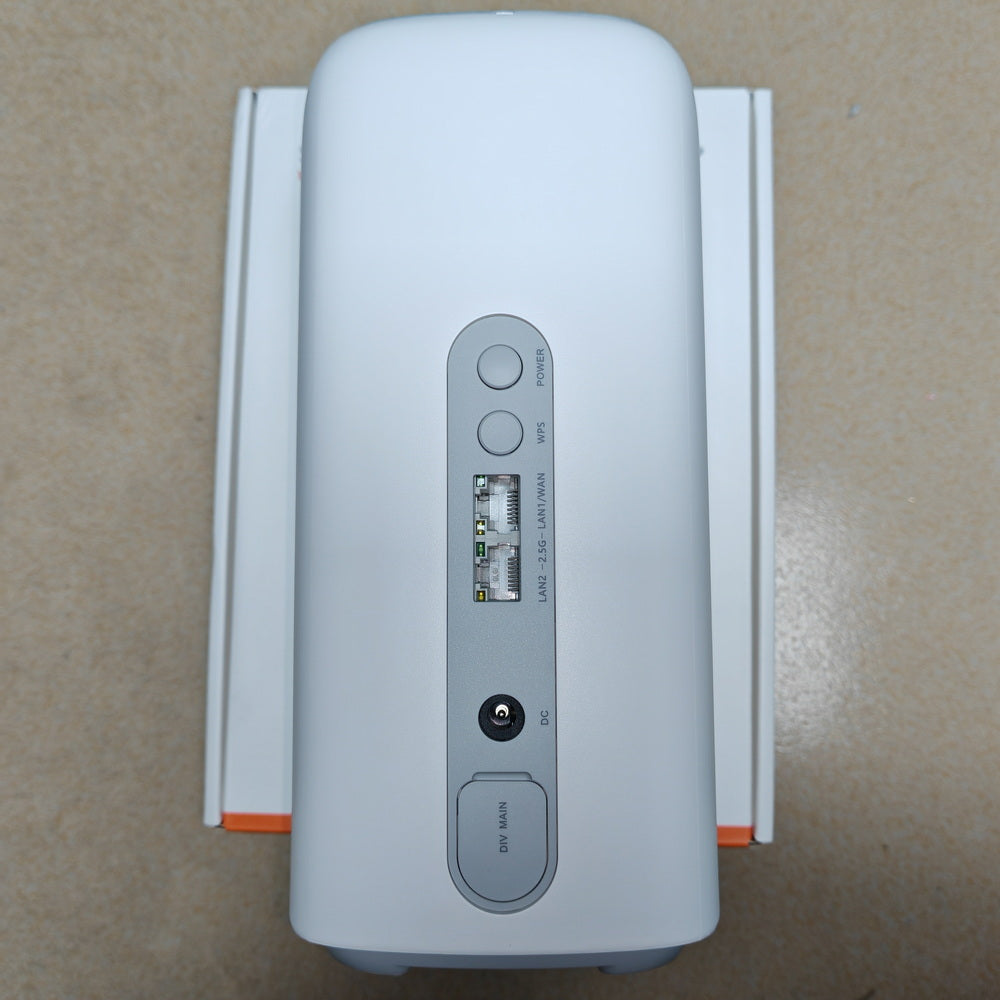

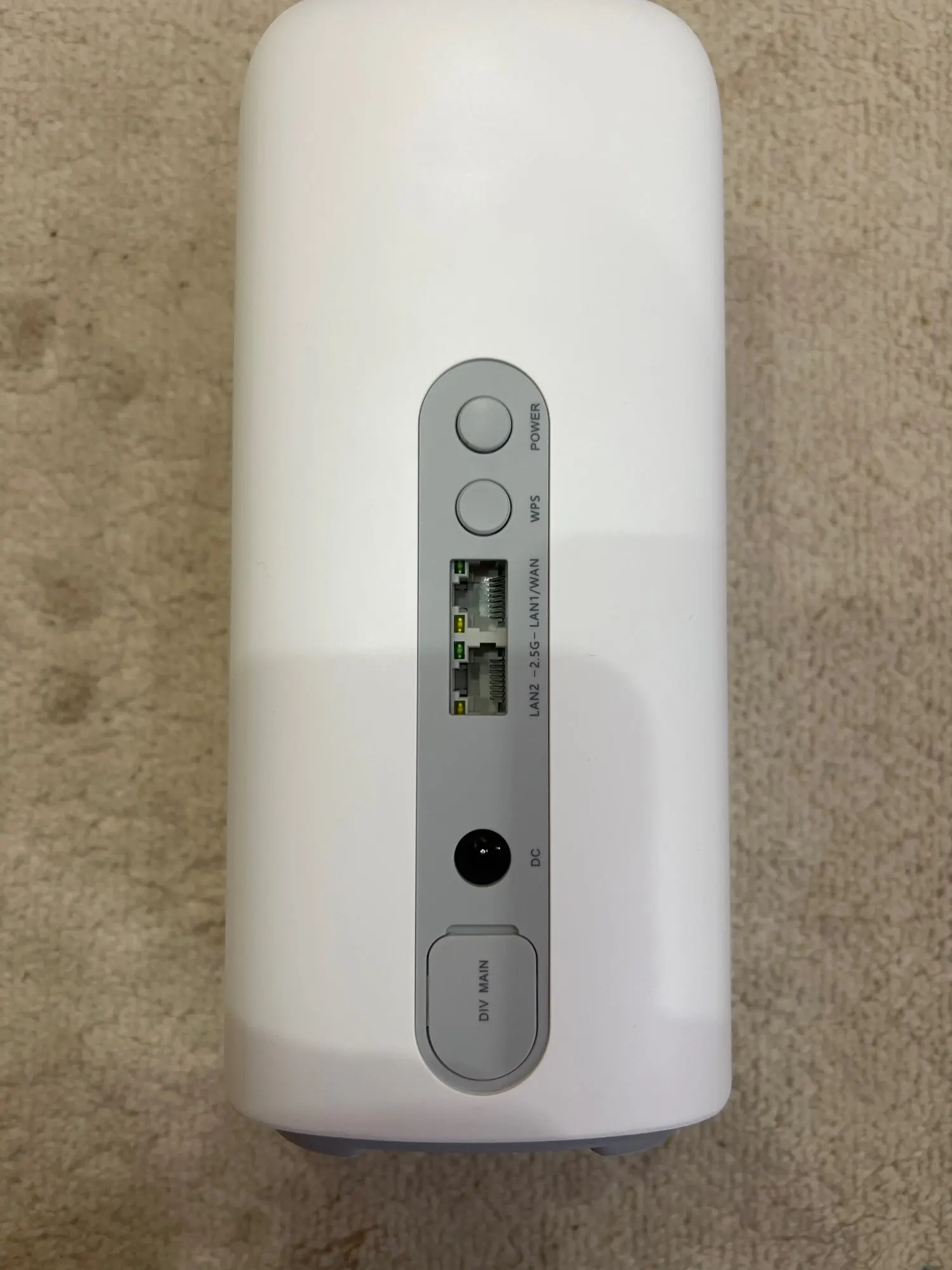

✔ Ethernet Port

• 1*2.5GE for LAN/WAN port + 1*2.5GE for LAN port
• WAN/LAN switch
• RJ45 interface
• 10/100/1000/2500M auto-negotiation
• MDI/MDIX auto-sensing
• IEEE 802.3/802.3u

✔ USB

• 1*USB Type-C port

✔ Wi-Fi Interface

• IEEE 802.11 b/g/n/ax/be (2.4GHz)
• IEEE 802.11 a/n/ac/ax/be (5GHz)
• Dual-band Wi-Fi 7 :  BE7200，2.4G(4*4 MIMO) and 5G(4*4 MIMO)
• Encryption: WEP, AES, and TKIP + AES
• Security mode:  Open, WEP, WPA2-PSK, WPA/WPA2-PSK, WPA3
• Support multi SSID and guest SSID
• Support changing SSID and password
• Press the WPS button to quickly connect
• 2.4GHz&5GHz  dual-band auto-selection
• 4 internal 2.4G Wi-Fi antennas; 4 internal 5G Wi-Fi antennas
• Support DBDC
• Support maximum of 128 connected stations

Product Function

✔ Multi-Services

• Multi services: Internet, voice
• Flexible UNI connection modes: wire (GE/Phone) + wireless (Wi-Fi)

✔ Smart Interconnection

• Easy to access two network: 5G/4G LTE
• Support two 5G network mode: NSA/SA
• Easy to connect to ACS by TR069
• Wi-Fi 2.4GHz&5GHz dual-band auto-selection
• IPv4/IPv6 auto-negotiation

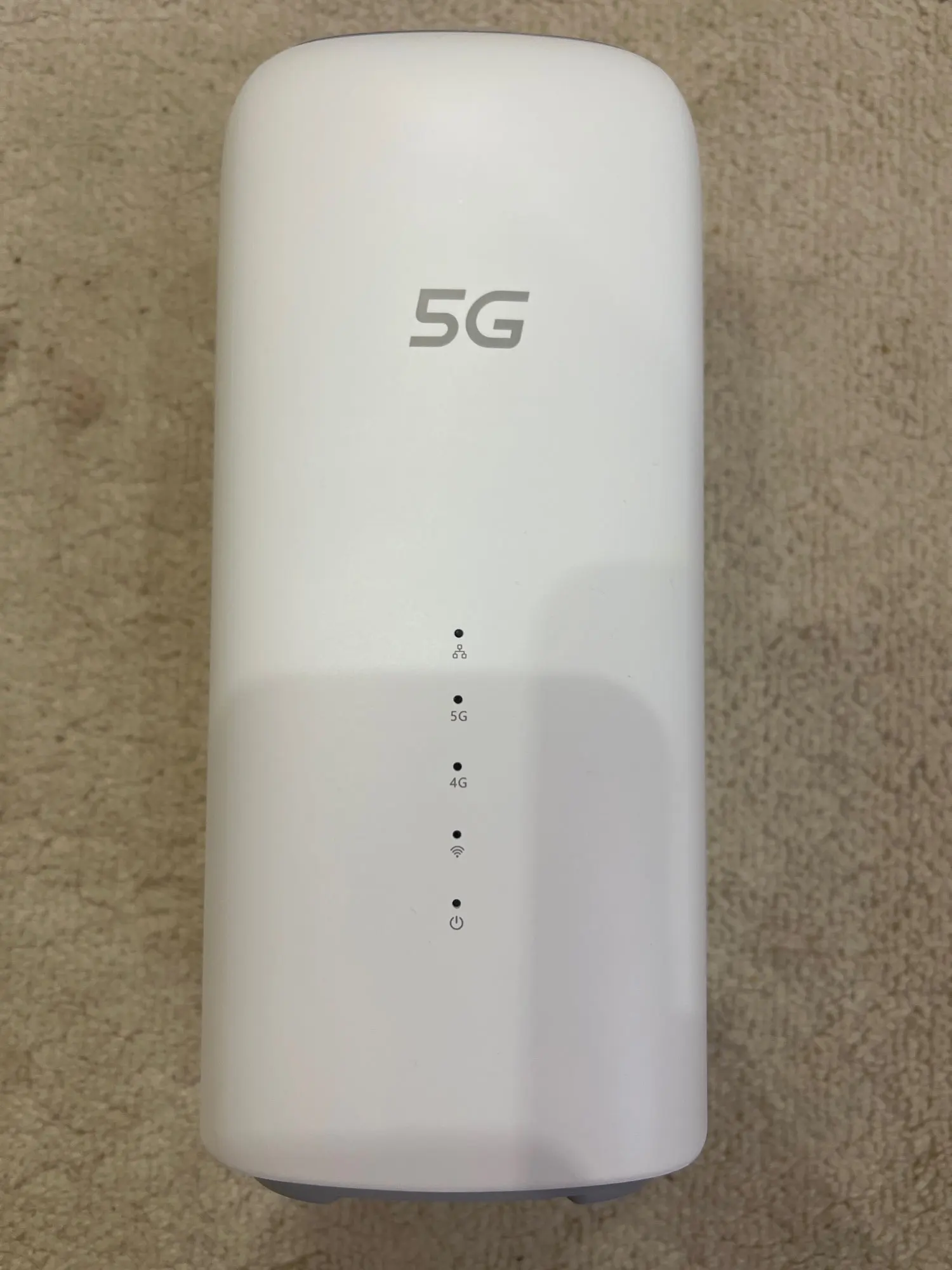

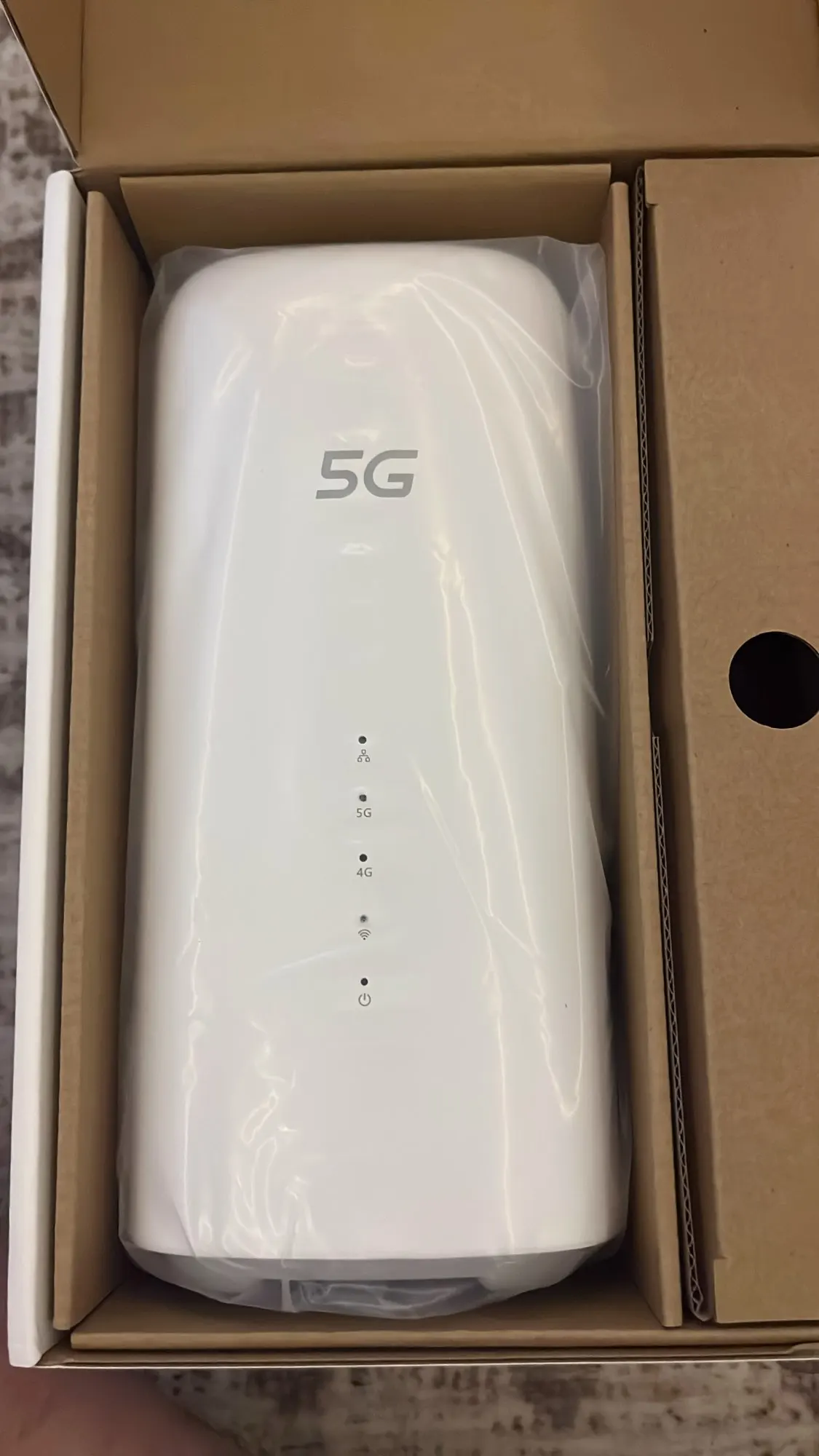

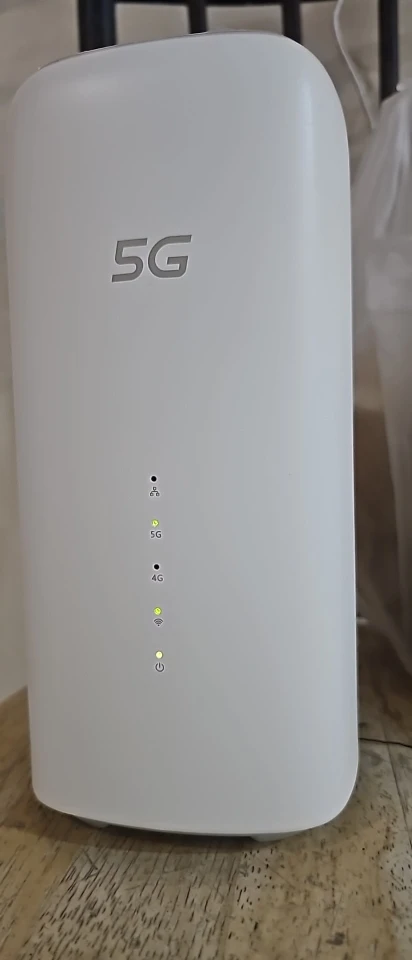

• Different LED clearly indicate network status

✔ Software Update

• Web UI update
• TR069 update
• FOTA update

✔ Device Management

• Web UI
• TR069 management
• Mobile APP (could be customized)


✔ APN Setting

• Support default APN (customized)
• Set APN username/password/IP mode

✔ TR069

• Support HTTP/HTTPS format
• Upload/download the ACS specified files, Download CPE configuration files
• Configure & query parameters
• Remote upgrade

✔ Diagnosis

• Ping diagnosis
• Traceroute diagnosis
• Export operation diagnosis logs


✔ L3 Functions

• Support PPPoE/DHCP/static IP config
• Support IPv4, IPv6, IPv4/IPv6 dual stack
• DNS RELAY and NAT
• ALG: H.323/SIP/RTSP/L2TP/PPTP/FTP
• Support PPTP/L2TP VPN/IPSec VPN


✔ Security Services

• Firewall service: firewall switch, DMZ, UPnP, port forwarding, IP MAC binding
• ACL filter: Mac/IP address filter, Port/URL filter , Wi-Fi black/white list
• Wi-Fi authentication

Product Certification

✔ Certification

• Support  CE Certification
• Support  Wi-Fi Alliance Certification

✔ Materials

• Meet RoHS requirements
