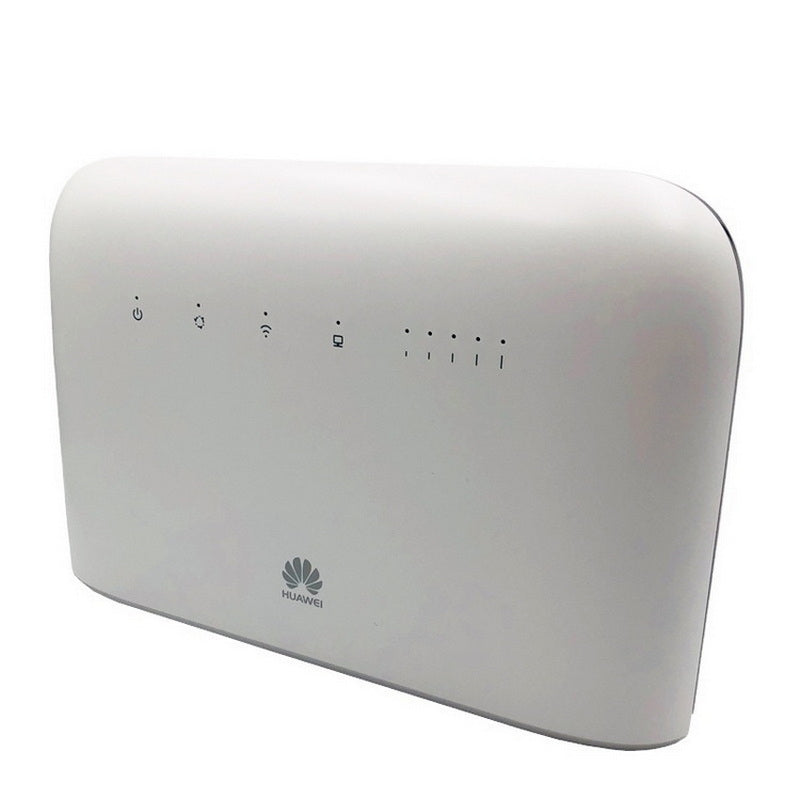

HUAWEI 4G LTE CAT9 Wireless Router B715s-23c

Huawei B715 4G LTE WiFi Router provides fast mobile network connection. The compact design makes it ideal for home use or a small office. The router offers excellent connectivity options - 4 Gigabit Ethernet ports and 2 optional external antennas (available separately).

B715s-23c has a maximum download speed of 9 categories 4G LTE 450 Mbps. Insert your 4G SIM card into your router and enjoy a reliable network connection. The router has an expanded internal antenna that allows Wi-Fi to cover the entire house and provides wireless access for up to 64 devices.

Overview

If you need to provide Internet access for homes, offices, apartments, buildings or production facilities through the 4G LTE network of mobile operators. The Huawei B715S is exactly what you need. It has all the necessary parameters and capabilities. The Huawei B715S is one of the earliest routers from Huawei to support 4G LTE CAT9. By aggregating three carriers, information loading speeds of up to 450 Mbit/s can be achieved. This makes the network speed of mobile operators not only comparable to fiber optic networks, but also far exceeding them. Gigabit Ethernet allows data to be transmitted through network cables without losing speed.

Communication Standards

HUAWEI B715S-23C supports second-generation (2G), third-generation (3G), and fourth generation (4G LTE) mobile networks, covering the following frequency bands:

• 2G EDGE/GPRS/GSM:850/900/1800/1900 MHz
• 3G DC-HSPA+/HSPA+/HSPA/UMTS:900/2100 MHz
• 4G LTE bandwidth 1/3/7/8/20/28/32/38
• FDD 700/800/900/1500/1800/2100/2600MHz
• TDD 2600MHz

Data Transmission Speed

The maximum download speed limit for Huawei B715S-23C 4G data is 450 Mbit/s, and the upload speed limit is 50 Mbit/s. In 3G mode, the download speed of DC-HSPA+is as high as 43.2 Mbit/s. This will ensure that you are comfortable using the Internet with any task - from surfing and socializing, watching online videos, TV and complex online games.

Dual Band WiFi

The Huawei B715S-23C is equipped with 2.4GHz and 5GHz dual band Wi Fi modules. Up to 64 users can connect to the router simultaneously via wireless network. The activity radius of the network can reach up to 100 meters in open areas.

Gigabit Ethernet

The Huawei B715S-23C router is equipped with four Gigabit Ethernet ports (RJ45), which can connect to desktop computers, workstations, televisions, and other devices without WiFi modules.

Ports and Connectors

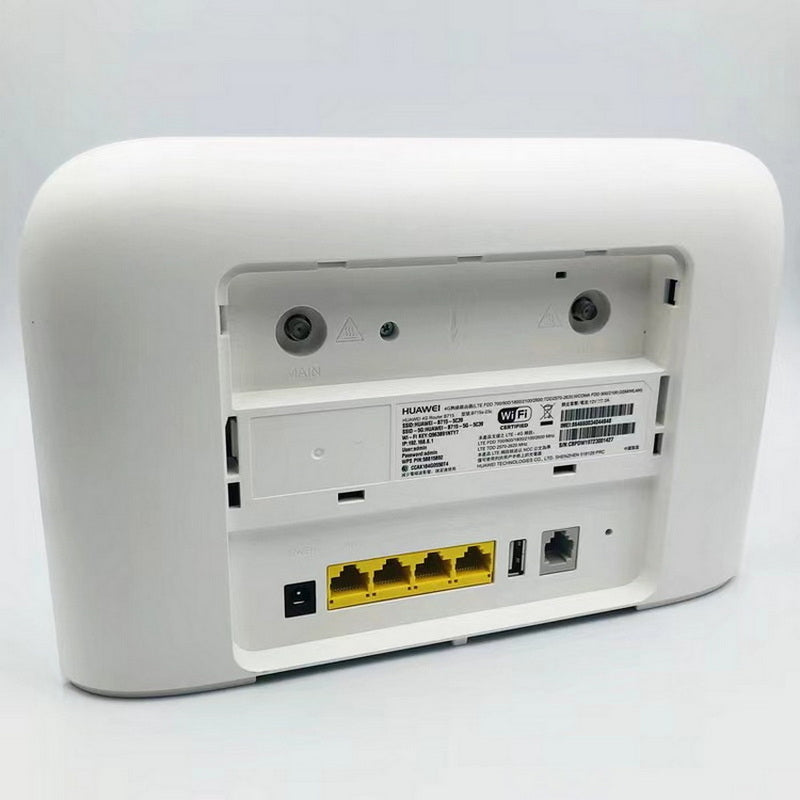

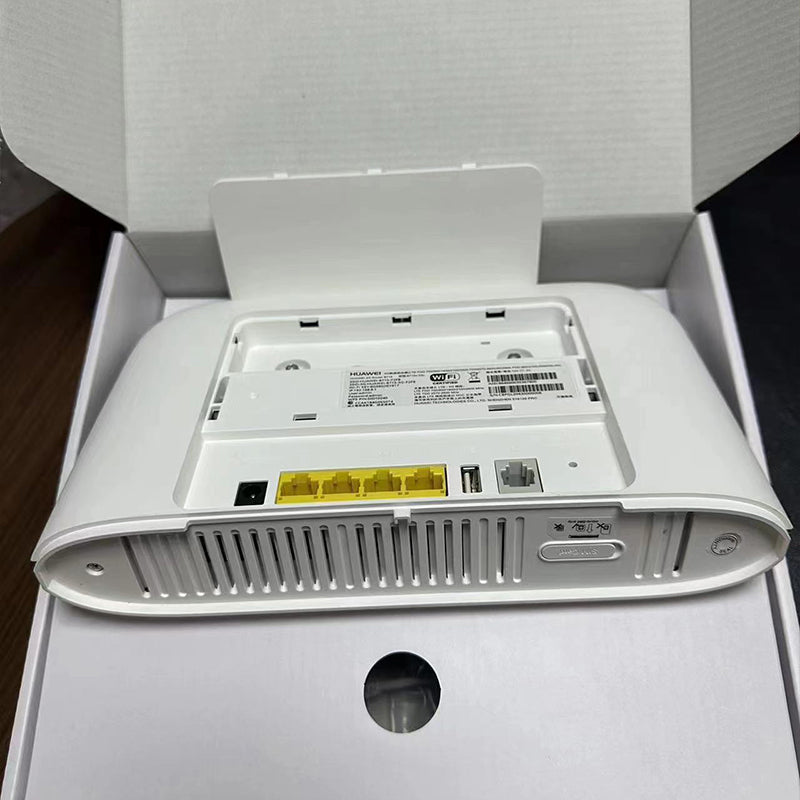

The Huawei B715S-23C has a USB 2.0 port that can be connected to a memory drive or printer. There is also a telephone port (RJ11) for making calls using mobile phones and SIM cards used by mobile operators. There are two SMA-FEMALE ports under the cover on the back of the router, which are used to connect external 4G LTE enhanced antennas. By the way, routers support MIMO antenna technology, so they can connect MIMO antennas to better amplify signals.

Key Features

• LTE Category 9 Wireless CPE
• LTE DL 450Mbps/UL 50Mbps
• Built-in DHCP Server, DNS RELAY and NAT
• 4 x LAN Ports (One for LAN/WAN), 1 x Telephone Port, 1 x USB2.0
• Two Connectors for External Antenna
• Support up to 64 Wireless Devices
• WiFi 802.11b/g/n/ac, Dual Band
• Security Protocols: WEP, WPA-PSK / WPA2-PSK

Product Status

• Unlocked Sim Card
• Almost New, No Scratches, Fully Tested

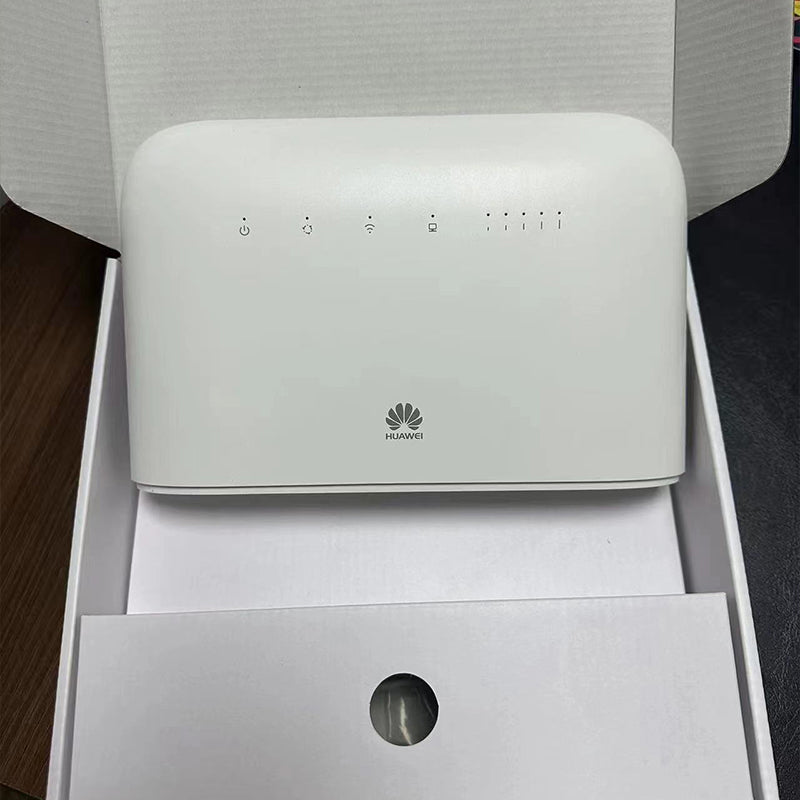

What's in the box?

• HUAWEI 4G CPE B715s-23c
• Power Adapter *1
• RJ45 Ethernet Cable *1
• Original HUAWEI or Neutral Packaging *1

HUAWEI 4G Home Modem B715s-23c Datasheet

● 4G Sim Card LTE Category 9 Router

● Support 4G LTE Band 1/3/7/8/20/28/32/38

● (FDD 700/800/900/1500/1800/2100/2600MHz & TDD 2600MHz)

● Support 3G DC-HSPA+/HSPA+/HSPA/UMTS：2100MHz/900MHz

● Support 2G EDGE/GPRS/GSM：1900MHz/1800MHz/850MHz/900MHz

● LTE DL 450Mbps/UL 50Mbps

● 4 x LAN ports(One for LAN/WAN), 1 x telephone port

● Two connectors for external antenna

● SIM type: Micro SIM

● Carrier Aggregation：

(4G)2CA: CA_1A-3A, CA_1A-7A, CA_1A-8A, CA_1A-20A, CA_1A-28A, CA_1A-38A, CA_1C, CA_3A-7A, CA_3A-8A, CA_3A-20A, CA_3A-28A, CA_3A-32A, CA_3A-38A, CA_3C, CA_7A-7A, CA_7A-8A, CA_7A-20A, CA_7A-28A, CA_7A-32A, CA_7C, CA_20A-32A, CA_20A-38A, CA_38C.

(4G)3CA: CA_1A-3A-7A, CA_1A-3A-8A, CA_1A-3A-20A, CA_1A-3C, CA_1A-7A-20A, CA_1A-7C, CA_3A-7A-8A, CA_3A-7A-20A, CA_3A-7A-28A, CA_3A-7A-38A, CA_3A-20A-32A, CA_3C-7A, CA_3C-20A, CA_7A-20A-38A.

● Access to LTE wireless networks

● Access to Gigabit Ethernet networks

● High-speed data access

• LTE FDD: 4*4MIMO+2CA 582Mbps
• LTE TDD: 4*4MIMO+2CA 426Mbps
• DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s
• HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s
• HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s
• WCDMA PS: 384 kbit/s
• EDGE: DL 296 kbit/s, UL 236.8 kbit/s
• GPRS: 85.6 kbit/s

● Complies with wireless 802.11b/g/n/ac standards with dual-band(2.4GHz and 5GHz)

● Support up to 64 wireless devices

● SMS

● IPv4 /IPv6 dual stack

● Compatibility with RJ11 telephone ports; support VoLTE voice(customizable function), can be set to Voice over Internet Protocol (VoIP) voice mode or Circuit Switch (CS) voice mode

● External LTE antenna port

● Support for Huawei HiLink App

● WPS 2.0

● HOTA updates

● Built-in DHCP Server, DNS RELAY and NAT

● Security services. Provides instant protection to block potential security risks and intrusion attempts

● Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT), MAC OS X 10.9, 10.10, 10.11 and 10.12 with latest upgrades

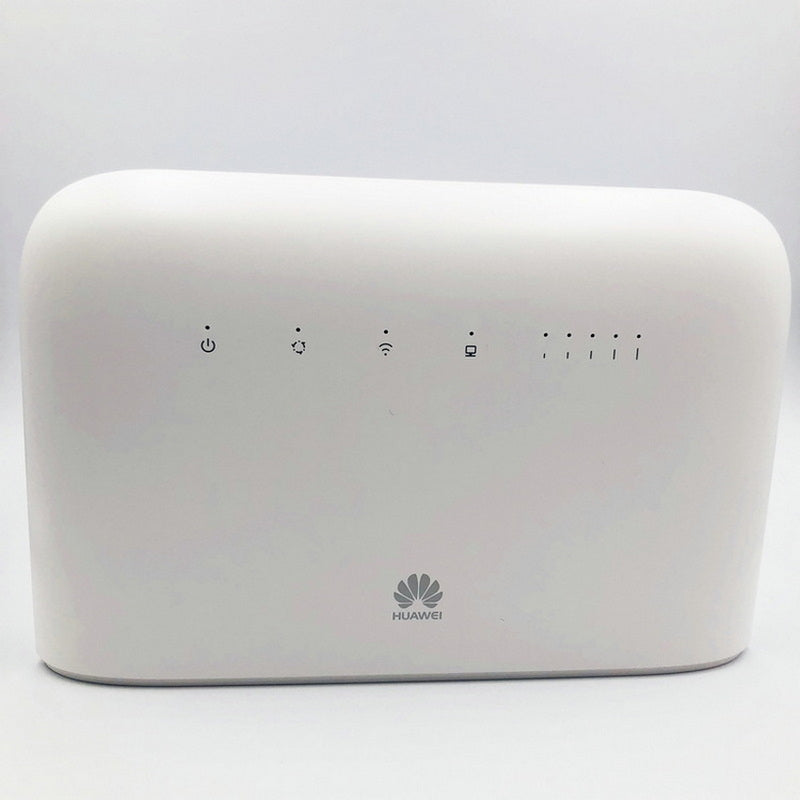

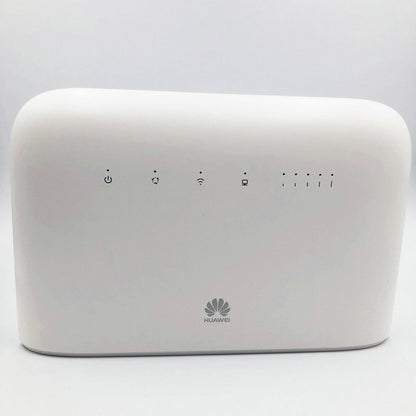

● User-friendly design of LED indicator. Easy to observe the status of equipment

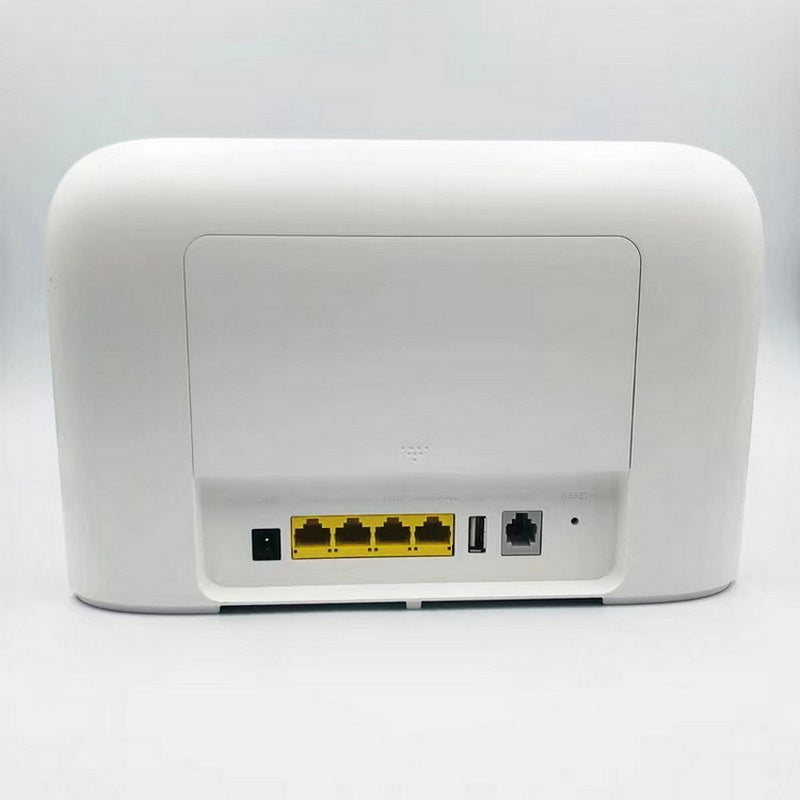

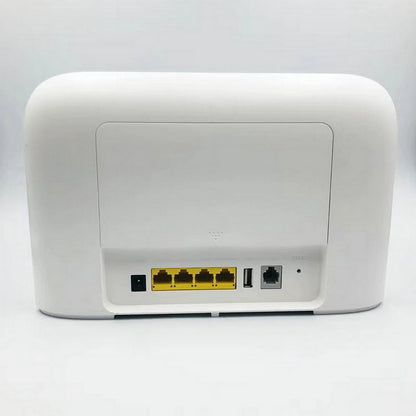

● External port

• One power adapter port
• Three LAN port (RJ45)
• One LAN/WAN port (RJ45)
• One phone port (RJ11)
• Two external LTE antenna ports(SMA-female Type)

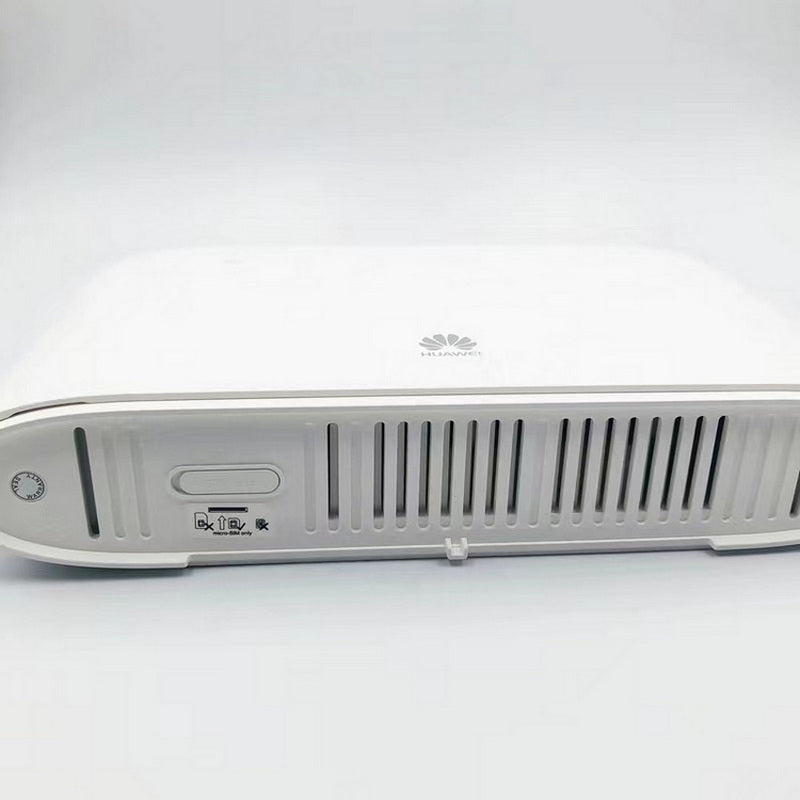

• One micro-SIM card slot

● Power consumption: < 12W

● AC/DC power supply

• AC: 100 V - 240 V
• DC: 12 V/1 A

● Temperature

• Working temperature: 0°C to 40°C
• Storage temperature: -20°C to +70°C

● Humidity: 5% - 95%( Non-condensing)

● Dimensions(Maximum): 240mm × 448mm × 47mm

● Weight: About 450g (excluding the power adapter)
