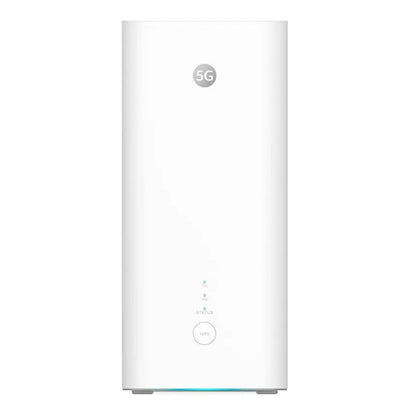

HUAWEI 5G CPE Pro 3 H138-380 WiFi 6 AX1800 4G LTE CAT19 Sim Router
HUAWEI 5G CPE Pro 3 H138-380 WiFi 6 AX1800 4G LTE CAT19 Sim Router
Couldn't load pickup availability
GHTelcom 5G CPE Pro 3
1.8 Gbps Downlink | 250Mbps Uplink | 5G/4G DSS
Device Status
Unlocked | Like New Condition | Fully Tested
Stay Home, Stay Connected
GHTelcom 5G CPE Pro 3 allows you to set up a whole-home mesh network system, which offers seamless Wi-Fi throughout your home. As you walk around the house, the connected device will automatically switch to the strongest signal in the system.
Mobile Broadband: Zero Touch,Plug & Play for Various Scenarios
- Flexible Home Broadband
- Continuous Network for when Renting on a Short-Term Basis
- Economical and Convenient Network Access for Small and Minor Enterprises
- Cost-Effective Network for Shops and Stores
- Secure Network Monitoring
- Network Access for Agriculture, Forestry, Farming and Fishery
- Convenient Network Access for Construction Sites and Warehouses
- Multiple Network Use in Student Dormitories
5G CPE Pro 3, Beyond Speed
Want to watch 4K TV and enjoy high upload speed, then choose 5G CPE Pro 3.
One SSID for dual-band, 5GHz Wi-Fi is priority. 5GHz Wi-Fi up to 1201Mbps, 2.4GHz Wi-Fi up to 574Mbps. Wi-Fi channel optimization supported, click the Optimize button to always keep Wi-Fi best performance.
5G/4G DSS: Dynamic Spectrum Sharing Supported
In different deployment phases of the LTE and NR networks, LNR shared spectrum can be dynamically allocated to the two RATs (minute-level) based on their network load. Only one RAT can use the shared spectrum at a time.
One-Name Wi-Fi, Seamless Roaming
One-Click Pairing
WPS key to enter mesh
1+5
supports one CPE and five Wi-Fi routers
500m2
Wi-Fi coverage
<100ms
switching time when traveling among mesh units
Auto Sync
once changed Wi-Fi name or password
Huawei H138-380 5G CPE Pro
Huawei H138-380 5G CPE Pro 3 is an ultra-fast 5G/LTE router with download speeds of up to 1.2 Gbps (LTE) and 1.8 Gbps (5G). In addition, WiFi 6 and WiFi speeds of 574 Mbps (2.4GHz) and 1.2 Gbps (5GHz). The H138-380 5G is the perfect router for small office environments or home networks with a maximum number of connections for 128 devices simultaneously. Supports NAT and NAPT, DHCP server enable and disable and enables VPN connection.
5G LTE CAT19 Router
The Huawei 5G CPE Pro 3 achieves higher throughput speeds than ever. The H138-380 is the ideal router for small offices or home networks. It allows multiple users, up to 128 devices to access the Internet simultaneously. The CPE Pro supports 5G and LTE networks and provides a WiFi 6 connection. The router provides download speeds up to 1.2 Gbps (LTE) and 1.8 Gbps (5G) and upload speeds up to 100 Mbps (LTE) and 250 Mbps (5G). In addition, it is possible to set up a VPN connection so that you can connect to the network remotely.
WiFi 6 Router
The Huawei 5G CPE Pro 3 features 1x Gigabit WAN/LAN, 1x Gigabit LAN and 1x RJ-11 phone port. The WAN/LAN port allows the Huawei 5G router to also be used as a WiFi 6 router with fixed internet connection. The CPE Pro supports Dual-Band wireless-AC (2.4 and 5GHz) with WiFi 6 speeds up to 574 Mbps (2.4GHz) and 1.2 Gbps (5GHz). With smart Dual-Band WiFi, this router provides excellent WiFi coverage throughout the home or office. The RJ-11 phone port allows a phone to be wired so that phone calls can be made.
HUAWEI H138-380 Main Features
● Compatible with 5G frequencies in NSA and SA mode (Non Stand alone and Stand Alone) in the bands n1/3/5/7/28/38/40/41/77/78/79/80/84 and 4G in the bands B1/3/5/7/8/20/28/32/34/38/39/40/41/42/43.
● In 5G, downloading up to 1.8 Gbps and sending up to 250 mbps, DL MIMO 4x4: n1/3/7/38/40/41/77/78/79, 5G 2x2 MIMO; n5/8/20/28/71; UL MIMO 2x2: n38/41/77/78/79, DL / UL 256QAM.
● In 4G, Category 19 256 QAM download up to 1.6 Gbps and send up to 150 mbps, aggregation up to 5 frequencies at a time. LTE 4x4 B1 / 3/7/38/39/40/41/42/43, LTE 2x2 B5 / 8/20/28/32/34.
● Wi-Fi 6 AX1800 2x2 MIMO 802.11a/b/g/n/ac/ax in the 2.4Ghz and 5Ghz bands up to 128 devices simultaneously, up to 250 meters of range. Compatible with the new WPA3 security standard. Speed up to 1.8 Gbps on the 5Ghz band, and 300 mbps on the 2.4 Ghz band.
● 2 ports RJ45 Gigabit (10/100/1000) dont 1 port LAN/WAN
● 1 RJ11 port for analog or DECT telephone, to make and receive calls via the configuration of a VoIP / SIP account in the interface.
● Complete interface for experts: Bridge mode, Reservation of IP and MAC addresses, Frequency selection, Change of router IP, Guest WiFi mode, DDNS, Integrated L2TP PPTP VPN client, supports SMS reception and transmission.
● Information page with Cellid, RSRP, RSRQ and SINR to know the signal strength and the transmitter you depend on.
HUAWEI GHTelcom 5G CPE PRO 3 H138-380 Specification
Technical standard
- WAN: 3GPP Release 15; LTE DL Cat19/UL Cat18
- LAN: IEEE 802.3/802.3u
- Wi-Fi: IEEE 802.11b/g/n/a/ac/ax
Working Band
- 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n77/n78/n79
- 4G LTE: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B34/B38/B39/B40/B41/B42/B43
- WiFi: WiFi 6 2.4GHz 574Mbps, 5GHz 1200Mbps
DL MIMO
- 5G 4x4: n1/n3/n7/n38/n40/n41/n77/n78/n79
- 5G 2x2: n5/n8/n20/n28/n71
- LTE 4x4: B1/B3/B7/B38/B39/B40/B41/B42/B43
- LTE 2x2: B5/B8/B18/B19/B20/B26/B28/B32/B34
UL MIMO
- 5G 2x2: n41/n77/n78/n79, Supported only in SA mode.

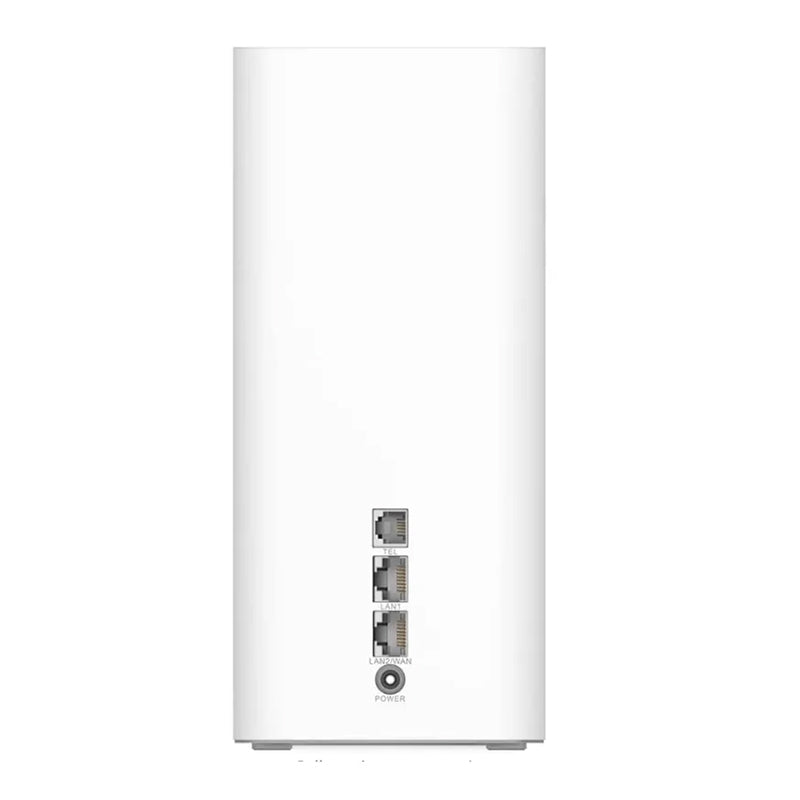

External Port
- One power adapter port
- One LAN/WAN port (RJ45), One LAN port (RJ45)
- One phone port (RJ11)

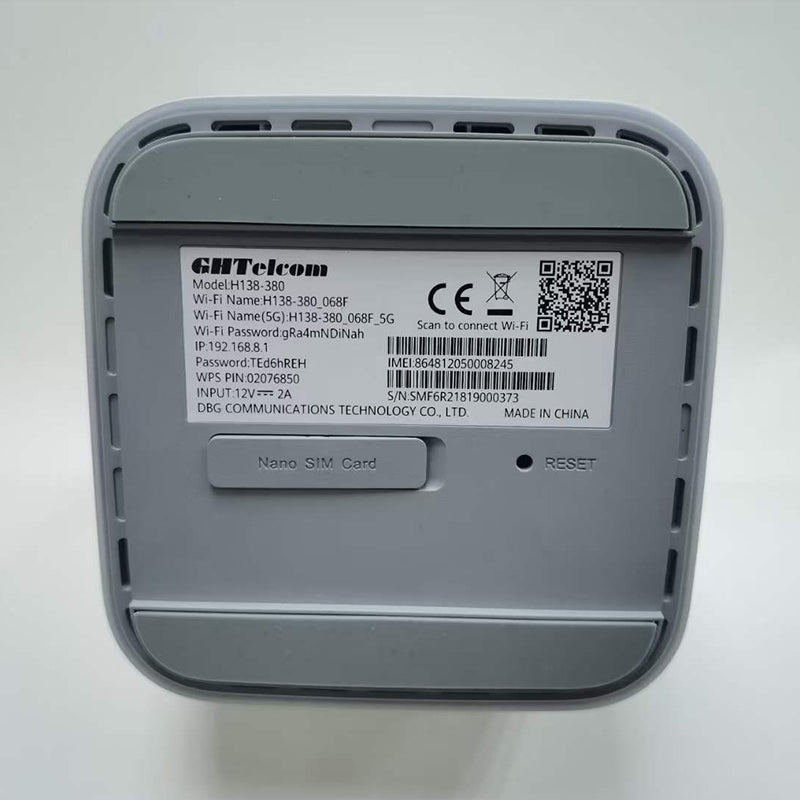

- One SIM card slot (Nano-SIM)
Antennas
- Built-in 5G/LTE antennas
- Built-in Wi-Fi 2.4 GHz and 5 GHz antennas

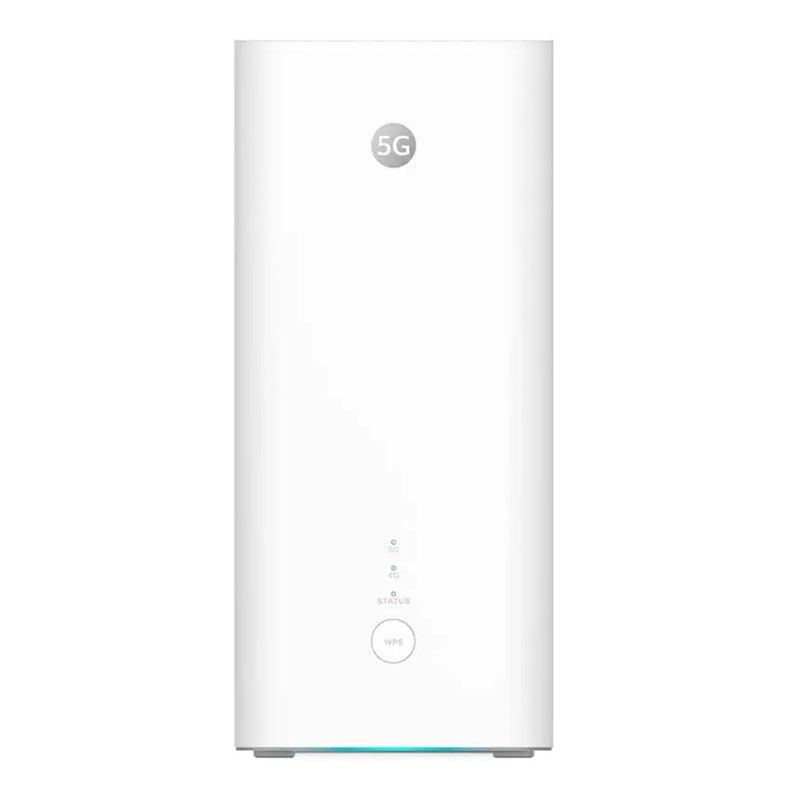

LED Indicators
- One 5G indicator
- One 4G indicator
- One Status indicator
- One ambient light strip
Buttons
- One WPS button
- One Reset button
Power Consumption
- Less than 24 W
AC/DC Power Supply
- AC (input): 100V-240V 50Hz/60Hz
- DC (output): 12V/2A
Dimensions
- 103*103*225mm
Weight
- 915g, excluding the power adapter
Temperature
- Working temperature: 0°C to 40°C
- Storage temperature: -20°C to +70°C
Humidity
- 5% – 95% (non-condensing)
Certification/Co mpliance
- CE /RoHS/REACH/WEEE/Wi-Fi/ErP certification
